Manual Surface Grinding
Product code: GMS0001Buy Manual Surface Grinding from India
Manual Surface Grinding
Workshops that need grinding machines manufacturers in India can quote against clear table and grinding-range figures will find those figures in this range. Civil Mechanical India is among the suppliers in India offering both manual and hydraulic surface grinders, so a college can choose by table size and a factory by feed system.
Surface grinders in this range start with a manual model whose working surface goes from 175 x 350 mm up to 300 x 600 mm on a magnetic chuck, and move to hydraulic machines where the table size reaches 500 x 1000, 500 x 1500, 600 x 1200 and 600 x 1500 mm with longitudinal travel up to about 1575 mm. The hydraulic drive gives smooth reciprocation, so the operator only sets the downfeed.

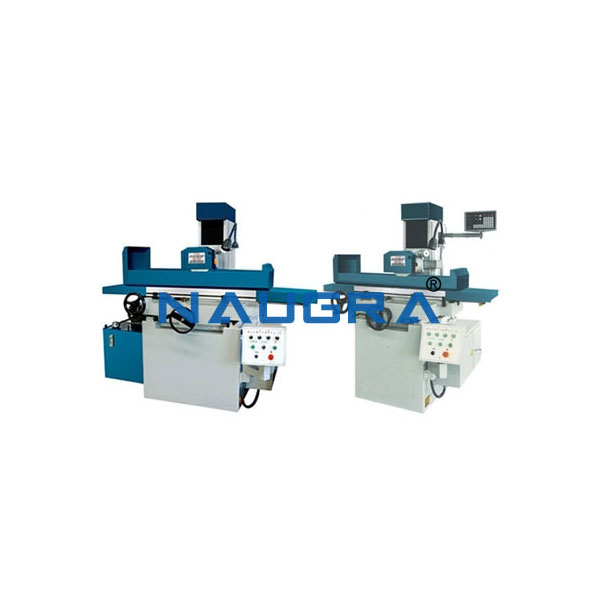

Two imported-pattern surface grinders, with capacities of 300 x 600 x 300 mm and 450 x 230 x 300 mm, suit smaller tool rooms. For round work there is a hydraulic cylindrical grinder (grinding length 300 to 1000 mm) and a centreless grinder covering 2 to 150 mm diameter with wheels from 350 x 100 mm up to 500 x 200 mm.
Last updated: November 2026
Manual Surface Grinding
Hydraulic Surface Grinding
Imported Surface Grinding H
Imported Surface Grinding M
Hydraulic Cylindrical Grinding
| Function | Products | What to confirm |
|---|---|---|
| Flat table grinding | Manual Surface Grinding, Hydraulic Surface Grinding | Working surface or table size, magnet chuck size, longitudinal and cross travel, hand or hydraulic feed |
| Imported pattern surface grinders | Imported Surface Grinding H, Imported Surface Grinding M | Grinding capacity (L x W x H), table travel, wheel dimensions and spindle motor rating |
| Round work | Hydraulic Cylindrical Grinding, Centerless Grinder | Maximum grinding length, centre height, bar diameter range, wheel size and regulating wheel drive |
Grinding Machine covers the training tier: bench and pedestal grinders, a tool and cutter grinder and a basic surface unit. This Grinding Machines page is the bigger tier, where hydraulic table drive, larger magnetic chucks and a centreless grinder come in. It is meant for tool rooms and production floors that grind many parts to size, not only for learning to sharpen a tool.
See also: Grinding Machine Suppliers
The complete Grinding Machines range (6 products), in alphabetical order:
| Centerless Grinder | Hydraulic Cylindrical Grinding | Hydraulic Surface Grinding |
| Imported Surface Grinding H | Imported Surface Grinding M | Manual Surface Grinding |
Manual machines have the operator moving the table by hand wheel, which is good for teaching and low volumes. Hydraulic machines reciprocate the table automatically with an adjustable speed, which reduces fatigue and gives a more even finish. If students will grind long plates or you run batches, choose hydraulic and check the oil tank and pump rating.
Confirm the bar diameter range (2 to 75, 2 to 100 or 5 to 150 mm), grinding wheel size, regulating wheel speed range and work rest blade options. Throughfeed and infeed grinding need different setups, so say which you want. Ask about wheel dressing arrangements, since poor dressing ruins roundness.
Ask for the alignment and test chart, expected flatness over the table length and the weight of the machine. Heavy hydraulic grinders should stand on a levelled concrete bed with anti-vibration pads, so request the foundation drawing before the machine arrives.
These machines go to tool rooms, die and mould shops, auto-component units, polytechnics with an advanced machining lab and engineering colleges with a manufacturing department. A surface grinder is often bought together with a magnetic chuck, wheel dresser and coolant filter, while a cylindrical or centreless grinder is added when shaft work is part of the course or product line.
It is a permanent or electromagnetic table that holds steel parts flat during grinding. Standard chuck sizes follow the table, such as 150 x 300 mm on the smallest model. Confirm the chuck is included and whether it is permanent or electromagnetic.
Machines of this type usually allow a swivelling table for slight tapers, but the limit depends on model. Give the taper angle and length you need so we can confirm it.
The listed wheels are 350 x 100 x 127, 350 x 150 x 127 and 500 x 200 x 304.8 mm for the different ranges. The wheel bore and width should match the model you pick.
We can arrange commissioning guidance, levelling and a trial grind on site within India. Tell us the location and the shop floor space available. Levelling matters most on hydraulic surface grinders, so a plan of the machine base and weight is sent before dispatch.
They are two sizes of the same design: one with 300 x 600 x 300 mm capacity and one with 450 x 230 x 300 mm and a 152 mm wide worktable. Choose by the largest part you will grind.
Civil Mechanical India is an established manufacturer and supplier for tender requirements from India, handling civil laboratory and industrial testing tenders and bulk and OEM orders for mechanical engineering and testing laboratory equipment. On receipt of your tender specifications, we will submit a complete quotation for Grinding Machines.
Send us your equipment list or tender specification. We quote against IS, BS, EN, ASTM and AASHTO standards and ship to 90+ countries.
