Light Duty MAX Series STANDARD MODEL
Product code: VBDLM0001Buy Light Duty MAX Series STANDARD MODEL from India
Light Duty MAX Series STANDARD MODEL
Civil Mechanical India is among the V Belt Drive Lathe Machines manufacturers in India, offering belt driven lathes in several series for workshops and institutes. For v belt drive lathe machines suppliers in India, tell us the swing and bed length you want and we will suggest the series that fits.
In a V belt drive lathe the motor drives the spindle through stepped pulleys, and speed is changed by moving the belt between steps. This is simpler and cheaper than a geared head, and the belt slips before it breaks the machine if the tool jams. The range lists the light duty MAX series in standard and super models, the RXZ, RA and YBX series, and an extra heavy duty V belt drive model.
Centre height, bed length, spindle bore and the number of speed steps are the figures to compare between series.
Last updated: November 2026
Light Duty MAX Series STANDARD MODEL

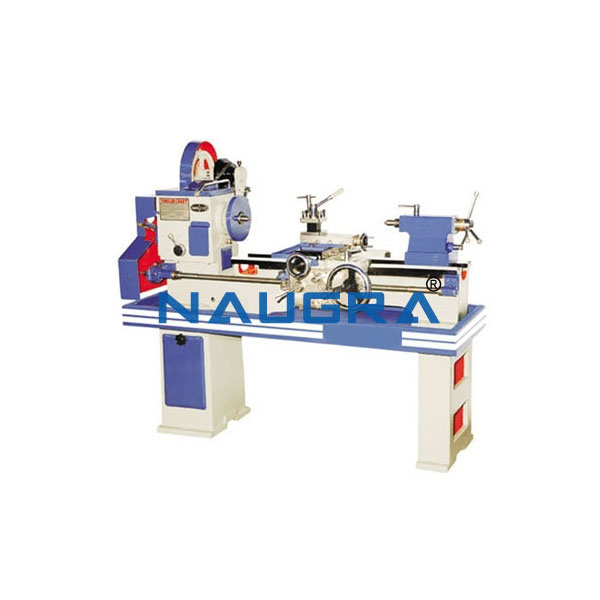

Light Duty MAX Series SUPER MODEL

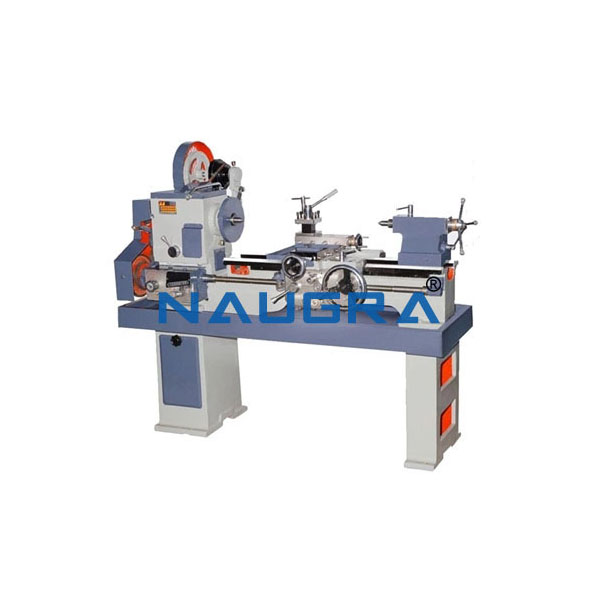

MAX Series Standard Model
MAX Series Super Model

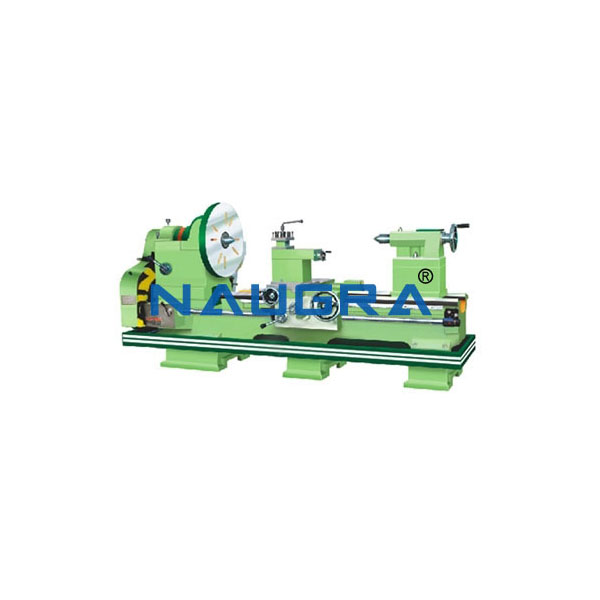

V Belt Drive Extra Heavy Duty

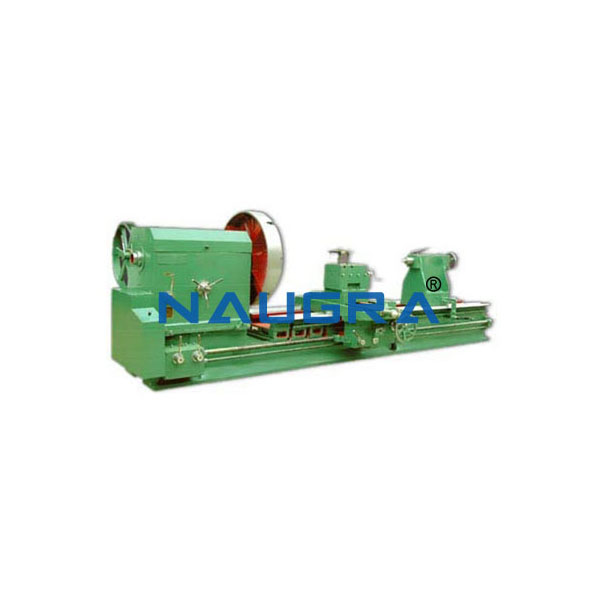

Roll Turning Lathe Machine
| Function | Products | What to confirm |
|---|---|---|
| Light duty lathes | Light Duty MAX Series STANDARD MODEL, Light Duty MAX Series SUPER MODEL, RXZ Series | Height of centre, bed width, swing over bed and slide, spindle bore and motor kW |
| Medium duty lathes | MAX Series Standard Model, MAX Series Super Model, RA Series | Centre height, bed length, spindle speeds and accessories supplied |
| Heavier work | MAX Series, YBX Series, V Belt Drive Extra Heavy Duty | Bed width, centre height up to 750 mm, centre distance and tailstock capacity |
A V belt drive lathe changes spindle speed by moving a belt on stepped pulleys, which is quick to learn and gentle on the drive, but gives fewer speeds and less torque at low rpm. An all geared lathe uses a gearbox with levers, delivering higher torque and a wider speed range, and it suits heavy cuts. Belt lathes are common for training and light work; geared ones for production.
See also: All Geared Lathe Machine Manufacturer Suppliers
The complete V Belt Drive Lathe Machines range (9 products), in alphabetical order:
| Light Duty MAX Series STANDARD MODEL | Light Duty MAX Series SUPER MODEL | MAX Series |
| MAX Series Standard Model | MAX Series Super Model | RA Series |
| RXZ Series | V Belt Drive Extra Heavy Duty | YBX Series |
Compare centre height, bed length, spindle bore, the number of speed steps and motor power across the series. The standard model suits teaching, the super model adds a larger bore or more speeds and the extra heavy duty gives a stiffer bed for heavier work. Ask what accessories are included, such as a chuck and tool post.
Belts last for years under normal use but should be checked for cracks, glazing and slack. Keep the right tension, since a loose belt slips and a tight belt wears bearings. Spare belts are cheap, and it is good practice to buy a set with the machine.
Polytechnics, ITIs, engineering colleges, small machine shops, repair workshops and school workshops buy belt drive lathes. They are usually the first lathe in a new training bay, ordered in batches of several machines with chucks, tool sets and measuring instruments. Small shops use them for light turning and maintenance work.
They are model series that differ in size, bore, bed length and finish. Standard and super models within a series differ in features such as spindle bore and speeds. Send us your requirement and we will advise on the fit.
Yes, with a lead screw and change gears it cuts threads like any centre lathe. Speed selection is by belt position. Provide the thread pitches you need.
Belt drive lathes usually offer six to twelve speeds ranging from about 40 to 1500 rpm, depending on the pulley steps and motor. Heavier models give lower speeds for large diameters.
Yes, we serve domestic buyers and ship overseas. Lathes are crated on bases with slides coated and accessories boxed. Please share the quantity and destination.
Civil Mechanical India is one of the leading manufacturers and suppliers in India for tender requirements, covering civil laboratory and industrial testing tenders and the bulk and OEM supply of mechanical engineering and testing laboratory equipment. Kindly share your tender specifications and we shall submit a complete quotation for V Belt Drive Lathe Machines.
Send us your equipment list or tender specification. We quote against IS, BS, EN, ASTM and AASHTO standards and ship to 90+ countries.
