Shaping Planning Planomiller Manufacturers and Suppliers in India

Shaping Planning Planomiller

Quick answer: With double column planers, hydraulic shapers and planomillers, Civil Mechanical India is a manufacturer and supplier of Shaping Planning Planomiller in India. They machine large flat surfaces on heavy parts. Heavy workshops and ITIs buy them.

Civil Mechanical India is one of the Shaping Planning Planomiller manufacturers in India, building reciprocating-ram shapers, double column planers and plano-millers for machining flat and guided surfaces. If you want shaping planing planomiller suppliers in India, send the stroke length and table size you need and we will quote the matching machine.

The group lists a planomiller, a floor shaping machine, a bench shaper for training, a double column planer, a hydraulic shaper and a vertical shaper slotter. A shaper moves a single point tool back and forth over a fixed workpiece, while a planer moves the table under a fixed tool so long castings and machine beds can be machined.

These machines are slow but robust, and they still earn a place in college workshops because the cutting action is easy to see. Stroke length, table size, ram speed and the feed mechanism are the numbers that fix what each model can machine.

Last updated: November 2026

Bench Type Shaping Machine

Product code: CMI-NP-0752
Buy Bench Type Shaping Machine from India

Bench Type Shaping Machine is a compact bench top shaper with a crank driven ram, used for teaching planing of small flat surfaces, slots and keyways on metal parts in training workshops.

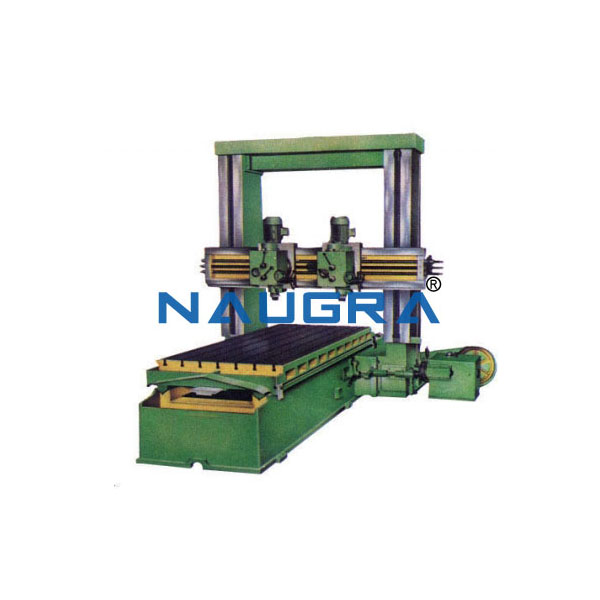

Double Column Planer

Product code: CMI-NP-0753
Buy Double Column Planer from India

Double Column Planer is a planer with two columns and a reciprocating table, designed for planing large flat surfaces on castings. Key features include two columns and cross rail.

Hydraulic Shaping Machine

Product code: CMI-NP-0754
Buy Hydraulic Shaping Machine from India

Hydraulic Shaping Machine is a shaper with a hydraulic ram drive, designed for planing flat and angular surfaces with smooth cutting stroke. Key features include hydraulic ram and variable speed.

Vertical Shaper Slotter

Product code: CMI-NP-0755
Buy Vertical Shaper Slotter from India

Vertical Shaper Slotter is a vertical shaper for keyways, designed for cutting keyways. Key features include vertical ram and rotary table. It suits technical institutes and workshops.

Shaping Planning Planomiller range by function

FunctionProductsWhat to confirm
Shaping flat and angular surfacesShaping Machine, Bench Type Shaping Machine, Hydraulic Shaping MachineStroke, table size, ram drive (crank or hydraulic), speeds per minute and motor kW
Keyway and vertical cuttingVertical Shaper SlotterRam stroke, rotary table diameter, tool head travel and feed mechanism
Large surfacesDouble Column Planer, Planomiller MachineTable size, spindle nose (ISO 50 for the planomiller), speed range, head travel and bed length

How are shaping and planing machines different from lathe machines?

A lathe rotates the workpiece against a stationary tool to make cylindrical, tapered and threaded shapes. Shapers, planers and plano-millers hold the work flat and move either the ram or the table in straight strokes to cut flat surfaces, slots, keyways and guideways. Choose a lathe for shafts and bushes, and a shaper or planer when the part is a block, a bed or a plate that needs a flat finished face.

See also: All Lathe Machines Suppliers

Full Shaping Planning Planomiller product list

The complete Shaping Planning Planomiller range (6 products), in alphabetical order:

Specifications and standards

Which specifications decide whether a shaper or planer fits my work?

Check the maximum stroke length, the ram or table travel in both directions, the table working area and the distance from table to ram. A double column planer is chosen by the width between columns and the length of the bed. Also look at the number of speed steps and whether feed is mechanical or hydraulic, since this decides how smooth the cut is.

Mechanical or hydraulic shaper, which is better for teaching?

A mechanical crank shaper shows students the quick return mechanism and the effect of stroke setting, so it is the usual choice for training shops. A hydraulic shaper gives stepless speed and a smoother cut, and it suits production work on longer strokes. Mention your teaching or production aim when you ask for a quotation.

Who buys Shaping Planning Planomiller?

Engineering colleges, polytechnic mechanical workshops, ITI machinist trades, railway and heavy fabrication workshops and tool rooms buy these machines. A typical order pairs a shaper with lathes, a milling machine and a surface grinder, so students cover the full set of metal removal processes. The planer and plano-miller are bought for longer castings and guideway work.

Related ranges

Frequently asked questions

What stroke length do shaping machines normally offer?

Bench and light shapers commonly run from about 250 mm to 450 mm stroke, while floor models extend further. The stroke is the longest flat cut in one pass. Tell us the longest surface you must machine so we can suggest a suitable model.

What is a vertical shaper slotter used for?

It moves the ram up and down, so it cuts internal keyways, splines and slots that a horizontal shaper cannot reach. The table can be rotated and fed in two directions. It is commonly used for gear blank keyways and internal profiles.

What does a plano-miller add over a planer?

A planomiller fits a milling head on the cross rail, so the same bed can take planing cuts and milling cuts in one setup. This removes the need to move a large casting to another machine. It is used for long and heavy workpieces.

Can you dispatch these machines abroad?

Yes, we supply across India and export these machines. Large planers are crated in sections with the bed and table protected. Share the destination and quantity so packing and documents can be confirmed.
