Automobile Air Conditioning Training Platform Manufacturers and Suppliers in India

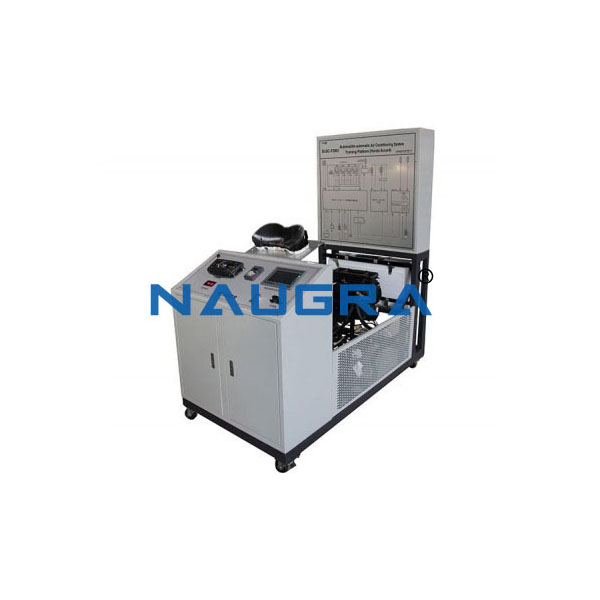

Training Platform for Automobile Air Conditioning System

Quick answer: Automobile Air Conditioning Training Platform units are made by Civil Mechanical India, a manufacturer and supplier in India. A car A/C board with automatic climate control, evaporator, condenser and expansion valve demonstrates refrigerant flow and fault simulation. Automobile workshops, ITIs and diploma colleges use them.

Automobile instructors asking for Automobile Air Conditioning Training Platform manufacturers in India want a platform that lets students charge, test and diagnose a real car AC loop. Civil Mechanical India builds car AC training boards and demonstration units, and is one of the suppliers in India offering both complete systems and individual component models.

The range moves from components to the whole system. The evaporator, condenser and expansion valve unit has transparent sections that show the refrigeration cycle working. The compressor model is a cutaway of a swash plate compressor with a magnetic clutch, showing compression, clutch engagement and the drive belt arrangement. The electrical panel carries blower, relays, pressure switches and thermostat wiring where faults can be inserted.

For service skill, a working AC loop with service ports lets students practise evacuation, charging with refrigerant and leak detection using standard tools. The climate control trainer shows temperature sensors, ECU, blend door actuator and blower speed control, and the flagship board uses a Chevrolet Cruze entire automatic A/C system. Check the refrigerant type used, gauge set, vacuum pump and recovery equipment.

Last updated: November 2026

Automatic Climate Control Automobile AC Training System

Product code: CMI-NP-1244
Buy Automatic Climate Control Automobile AC Training System from India

System showing automatic climate control with temperature sensors, ECU, blend door actuator and blower speed control for training in modern car AC. Key highlights include cabin and ambient temperature sensors and eCU with display.

Automobile AC Electrical Control and Fault Simulation Training Panel

Product code: CMI-NP-1245
Buy Automobile AC Electrical Control and Fault Simulation Training Panel from India

Panel with blower, relays, pressure switches and thermostat wiring where faults can be inserted to teach car AC electrical diagnosis. Key highlights include blower, relay and pressure switch circuits and thermostat and clutch control.

Automobile AC Evaporator Condenser and Expansion Valve Demonstration Unit

Product code: CMI-NP-1246
Buy Automobile AC Evaporator Condenser and Expansion Valve Demonstration Unit from India

Demonstration unit with transparent sections showing evaporator, condenser, receiver drier and expansion valve operation in the car AC cycle. Key highlights include transparent evaporator and condenser view and receiver drier and expansion valve.

Automobile AC Refrigerant Charging and Leak Detection Training Unit

Product code: CMI-NP-1247
Buy Automobile AC Refrigerant Charging and Leak Detection Training Unit from India

Unit with a working car AC loop and service ports for practising evacuation, charging with refrigerant and leak detection using standard tools. Key highlights include vacuum pump and manifold gauges and service ports.

Automobile Air Conditioning Compressor and Clutch Training Model

Product code: CMI-NP-1248
Buy Automobile Air Conditioning Compressor and Clutch Training Model from India

Cutaway model of a swash plate compressor with magnetic clutch for studying refrigerant compression, clutch engagement and drive belt arrangement. Key highlights include cutaway compressor and magnetic clutch engagement.

Automobile Air Conditioning Training Platform range by function

FunctionProductsWhat to confirm
Complete AC systemsAutomatic Climate Control Automobile AC Training System, Automobile AC Refrigerant Charging and Leak Detection Training Unitrefrigerant, compressor type and the control mode
Electrical controls and faultsAutomobile AC Electrical Control and Fault Simulation Training Panelblower, relays, pressure switches and fault list
Component demonstrationAutomobile AC Evaporator Condenser and Expansion Valve Demonstration Unit, Automobile Air Conditioning Compressor and Clutch Training Modelevaporator, condenser and the clutch model

How is this different from Cooling System Teaching Board for Santana AJR?

The cooling system teaching board deals with the engine cooling circuit: radiator, thermostat, water pump and coolant flow, carrying heat away from the engine. The air conditioning platform deals with the cabin refrigeration circuit: compressor, condenser, expansion valve, evaporator and refrigerant charge. The two share a fan and sensors, but need separate service skills, so automobile workshops commonly teach them as two units.

See also: Cooling System Teaching Board for Santana AJR

Full Automobile Air Conditioning Training Platform product list

The complete Automobile Air Conditioning Training Platform range (6 products), in alphabetical order:

Specifications and standards

What should be checked before ordering a car AC training platform?

Check the refrigerant the system is built for, because older cars use R134a while newer ones may use alternatives, the compressor type, the gauge manifold and vacuum pump supplied, and whether a recovery machine is included. Ask for the electrical diagrams and the sensors. Confirm the stand dimensions and the single-phase supply for the blower and compressor drive.

How is charging and leak detection practised safely?

Trainees connect the manifold gauge to the service ports, evacuate the loop with a vacuum pump, charge to the specified weight or pressure and check leaks with a detector or dye. Refrigerant must be recovered rather than vented, so a recovery machine and ventilation are needed in the room. Ask for the quantity of charge the loop takes.

Is the automatic climate control system worth adding?

Yes for courses on modern vehicles, since most newer cars use sensors, an ECU and actuators instead of simple knobs. Students read sensor values, command the blend door and blower and see how the ECU responds. Check whether diagnostic readout is possible and whether fault insertion is available.

Who buys Automobile Air Conditioning Training Platform?

Automobile engineering diplomas, ITI mechanic motor vehicle and refrigeration and air conditioning trades, technical colleges and vehicle service training centres buy these platforms. Car makers' training academies use the charging unit and the climate control system. A typical order includes the flagship board, a charging and leak detection unit and the electrical fault panel, so that mechanical, refrigerant and electrical skills are all in one lab.

Related ranges

Frequently asked questions

Which car model is the main platform based on?

The training board uses a Chevrolet Cruze based entire automatic A/C system with its auxiliary systems, so students learn from an authentic modern arrangement.

What can be seen in the transparent demonstration unit?

Transparent sections show the evaporator, condenser, receiver drier and expansion valve while the cycle runs, so students can observe liquid, vapour and pressure changes inside the components.

What faults can the electrical panel simulate?

It has a blower, relays, pressure switches and thermostat wiring in which faults can be inserted, such as an open relay or pressure switch, so students learn systematic electrical diagnosis.

Does the compressor model run?

It is a cutaway of a swash plate compressor with a magnetic clutch, for studying compression, clutch engagement and belt drive, not a running service compressor.

Can you supply car AC trainers outside India?

Yes, export orders are accepted. Provide the supply voltage, preferred refrigerant and any local regulations on refrigerant handling so the quotation fits your country. Share the destination so the unit is packed with its manifold gauge set.
