Lathe Machine Accessories Manufacturers and Suppliers in India

Lathe Machine Accessories Manufacturers Suppliers

Quick answer: If you need Lathe Machine Accessories, Civil Mechanical India is a manufacturer and supplier in India, with chucks, key way, taper turning and copy turning attachments. They extend the work a lathe can do. Machine shops, workshops and ITIs use them.

Workshop managers who need lathe machine accessories manufacturers in India usually have a lathe already and need the right fitting for its spindle. Civil Mechanical India is among the suppliers in India that lists chucks, tool posts, grinders and turning attachments, so the fit can be matched to the swing and spindle nose of your lathe.

Accessories fall into four groups. Work holding includes the self-centering true chuck, the four jaw independent chuck for irregular work and the revolving centre pipe centre for supporting long jobs at the tailstock. Tool holding includes the quick change tool post, which saves time in changing tools, and the tool post grinder for in-situ grinding, available in 150 mm and 200 mm sizes.

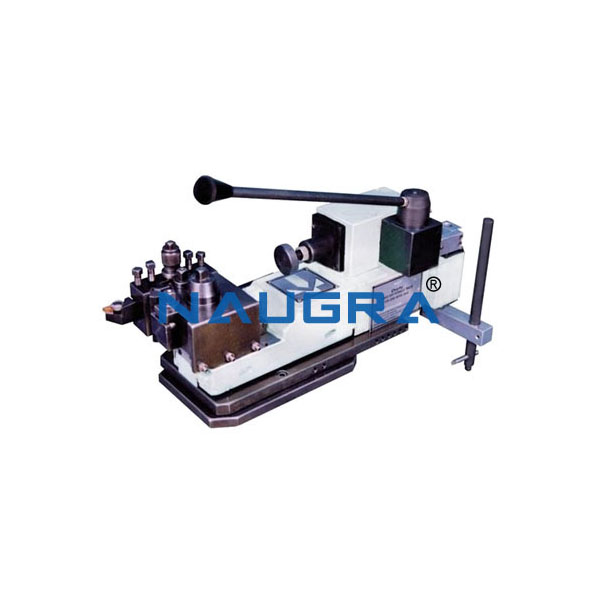

Turning attachments add functions: a key way attachment for cutting slots, a taper turning attachment for tapered shafts and a hydraulic copy turning attachment that follows a template to make profiled parts. The coolant pump with tank and assembly supplies cutting fluid to the tool tip.

Last updated: November 2026

Lathe Machine Accessories range by function

FunctionProductsWhat to confirm
Work holdingTrue Chuck, Independent Chuck, Revolving Centre Pipe CentreChuck diameter, number of jaws, mounting (back plate or direct), morse taper size on the centre
Tool holding and grindingQuick Change Tool Post, Tool Post GrinderTool post size and tool shank, grinder size (150 or 200 mm), spindle speed and motor
Turning attachmentsKey Way Attachment, Tapper Turning Attachment, Hydraulic Copy Turning AttachmentLathe model fitted, taper angle range, template or stylus type and hydraulic unit details
CoolantCoolant Pump with Tank and AssemblyPump flow, tank capacity, hose length and motor phase

How is this different from the Lathe Machines category?

Lathe Machines covers the complete lathes: student, medium, heavy, roll turning and automatic models. Accessories are the parts added to a lathe you already own to change what it can do. If you are buying new capacity, look at the lathes; if you need to hold odd shapes, turn tapers or copy profiles on an existing lathe, choose here.

See also: Lathe Machines

Full Lathe Machine Accessories product list

The complete Lathe Machine Accessories range (9 products), in alphabetical order:

Specifications and standards

How do I make sure an accessory fits my lathe?

Give the lathe maker and model, centre height, swing, spindle nose type (threaded, camlock or D series) and bed width. A chuck needs a matching back plate and an attachment needs the carriage dimensions. A drawing or photograph of the spindle end helps.

Which chuck do I need: true or independent?

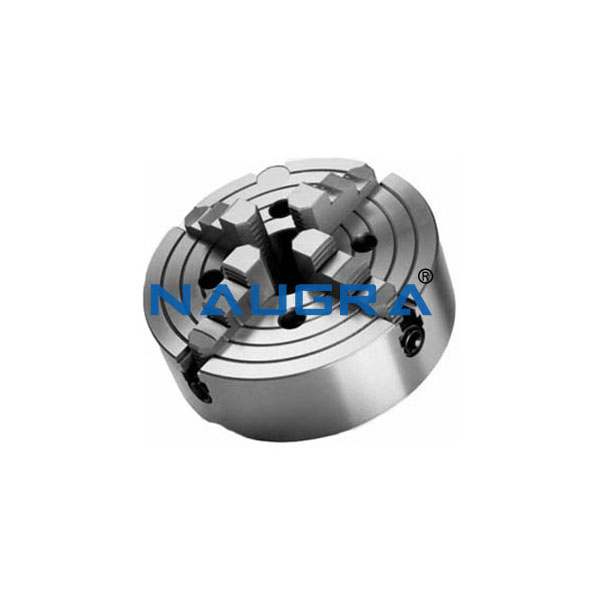

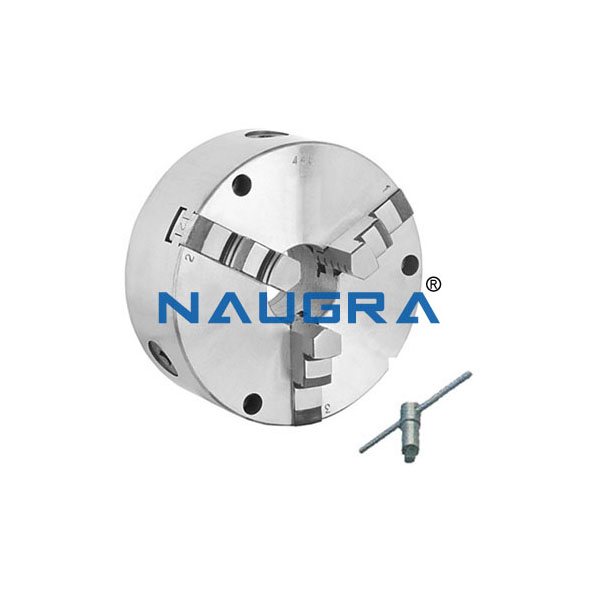

A true chuck centres round and hexagonal bars automatically, and is used for most work. The independent chuck has four jaws moved one by one, so it holds square, irregular or offset work. A workshop typically needs both. Check also the jaw set: reversible jaws let one chuck hold both outside and inside diameters, which a mixed batch of jobs needs.

What should I check on copy and taper attachments?

Ask for the maximum taper angle or length, the template or stylus used and the mounting on the cross slide. Hydraulic copy units need a pump and oil, so ask for the unit size and power. Also ask whether the attachment needs a pull-in of the lathe cross slide, because that changes how the feed handle works.

Who buys Lathe Machine Accessories?

Buyers include machine shops, ITIs and polytechnics that already run centre lathes, engineering college workshops, tool rooms and small production units. They buy chucks and tool posts as replacements and ask for turning attachments when the syllabus or production needs tapers and profiles.

Related ranges

Frequently asked questions

Does a tool post grinder need its own motor?

Yes, it mounts on the compound slide of the lathe with its own electric motor driving the wheel. The wheel speed must be much higher than the work speed, so the grinder is run from its own motor and the lathe is set to slow rotation.

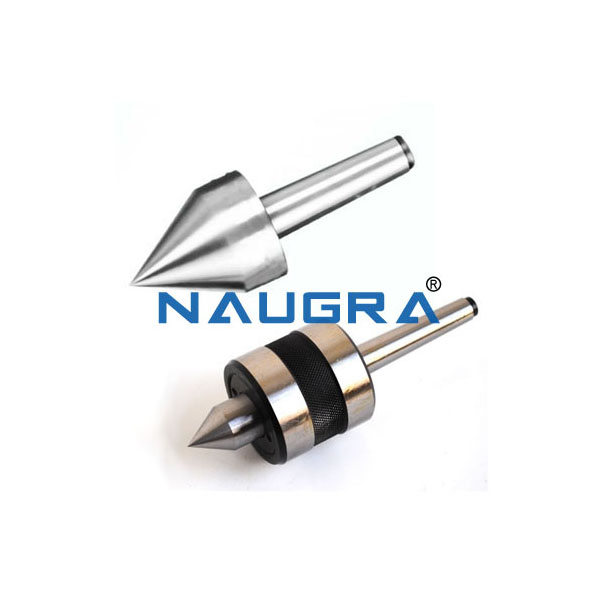

What is the use of a revolving centre?

It rotates with the work in the tailstock, avoiding friction and heat on long slender jobs. It is normally fitted with a Morse taper and a hardened point, and it is the right choice when turning pipes and long shafts at speed.

Can a quick change tool post fit any lathe?

It must match the lathe's size, so give centre height and compound slide detail. Tool posts are made for a particular centre height range, so a post made for a 135 mm lathe may not suit a 200 mm one.

What is the coolant pump flow rate?

We offer standard small pumps for lathe use, and the flow depends on motor size. State your requirement. Ask for the tank size as well, since a larger tank cools better in long jobs and lets swarf settle before the pump picks up coolant.

Do you ship lathe accessories abroad?

Yes, chucks and tool posts are easy to pack. Please give destination and lathe details. We state the weight of each chuck before dispatch, as a large independent chuck is heavy and needs a strong wooden case.
