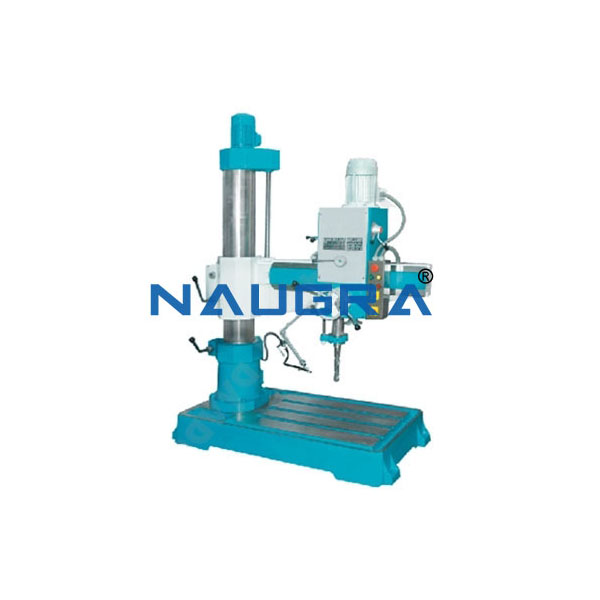

All Geared Radial Drilling Machine Manufacturers and Suppliers in India

All Geared Radial Drilling Machine Suppliers

Quick answer: All geared radial drilling machines have a swinging arm and geared speed and feed changes for heavy drilling, boring and tapping of large parts. Civil Mechanical India manufactures and supplies 40, 50, 63 and 65 mm models in India for heavy workshops, with export on request.

Heavy workshops seeking all geared radial drilling machine manufacturers in India need arm reach, column strength and a wide speed range. Civil Mechanical India is among the suppliers in India of 40 to 65 mm geared radial drills for castings and fabrications.

A radial drill clamps a heavy workpiece on the base or box table and moves the spindle to the hole instead. The arm swings around the column and the drilling head slides along the arm. In an all geared machine, speeds and feeds are selected by gear levers, which holds torque for large drills.

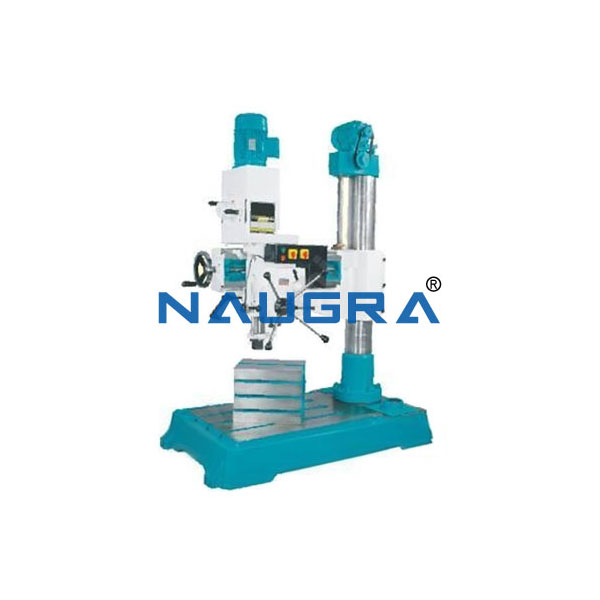

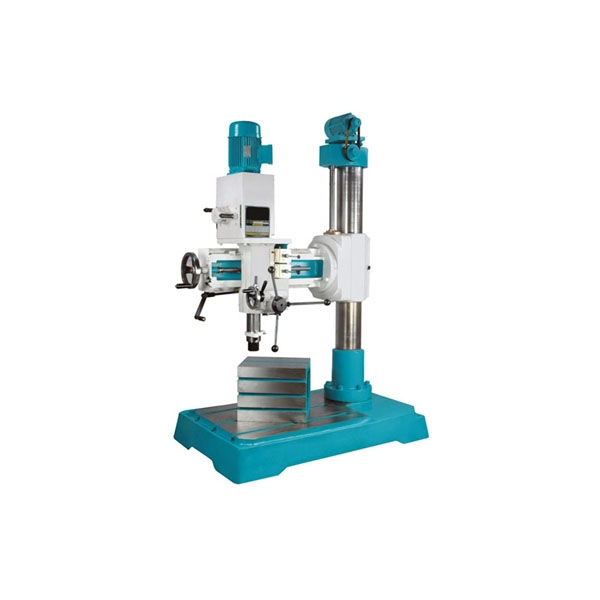

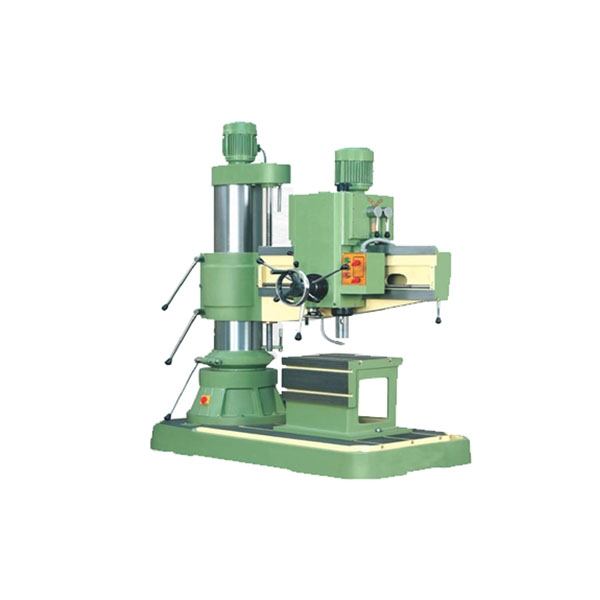

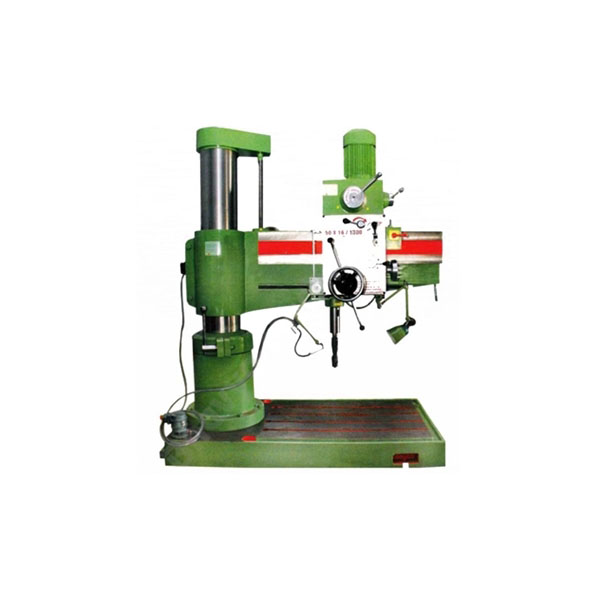

Models in this range include 40 mm drilling in mild steel with 45 mm in cast iron, 50 mm all geared radial with boring capacity in steel and cast iron, the BAG series at 65 mm drilling and 70 mm boring in cast iron, and a heavy duty 63 mm radial drill. Tapping capacity is also listed.

Last updated: November 2026

Heavy Duty Radial Drill 63 mm

Product code: CMI-NP-0369
Buy Heavy Duty Radial Drill 63 mm from India

A radial drill machine with 63 mm drilling capacity for heavy workpieces. Features include radial arm, gear box and auto feed.

All Geared Radial Drilling Machine range by function

FunctionProductsWhat to confirm
Medium capacity radial drillsRadial Drilling Machine, All Geared Radial Drilling Machine SuppliersDrilling capacity in MS and CI, tapping capacity, spindle to base distance, arm reach and motor.
Heavy and large capacity50mm All Geared Radial, BAG Series, Heavy Duty Radial Drill 63 mmBoring capacity, column diameter, arm length, maximum and minimum distance from spindle to column, and feeds.

How is All Geared Radial Drilling Machine different from V Belt Driven Radial Drill Machines Suppliers?

An all geared radial drill selects speeds and feeds through gearboxes, giving more power at the spindle and consistent torque for large drills and boring heads. A V belt driven radial drill uses belts and pulleys, and is lighter and less costly, suitable for lighter work and smaller capacities. Choose all geared for heavy, repeat work and V belt for lower budget or light duty. Both have the same swinging arm layout for large workpieces.

See also: V Belt Driven Radial Drill Machines Suppliers

Full All Geared Radial Drilling Machine product list

The complete All Geared Radial Drilling Machine range (5 products), in alphabetical order:

Specifications and standards

What should be checked before ordering a radial drilling machine?

Check drilling capacity in mild steel and cast iron, boring capacity, tapping capacity, arm reach, spindle to base distance, spindle taper and number of speeds and feeds. Confirm motor ratings and supply (415 V three phase), base or box table size, and the clamping and elevating arrangements.

What foundation does a radial drill need?

A heavy radial drill needs a solid, level floor, often with a concrete foundation and anchor bolts, to remain stable when the arm is extended. Ask for the machine weight and base drawing so that civil work can be prepared before delivery.

Who buys All Geared Radial Drilling Machine?

Heavy fabrication shops, foundries and machine shops, shipyards, railway and defence workshops, engineering colleges with large workshops and tool rooms buy radial drills. These are normally installed with large lathes, planers and surface plates, and they are bought where parts are too large to move on a pillar drill table.

Related ranges

Frequently asked questions

What is the maximum hole in a 40 mm radial drill?

It can drill about 40 mm holes in mild steel and about 45 mm in cast iron, with boring and tapping at lower sizes. Check specification of each model before ordering.

Can a radial drill do boring and tapping?

Yes, with the right tool holders and reversing arrangement, radial drills can bore and tap holes, and capacities are listed with each machine. Mention what you plan to do when enquiring.

Do you supply radial drilling machines across India and for export?

Civil Mechanical India manufactures and supplies radial drills in India with delivery to site and exports abroad. Send the capacity, quantity and destination in your enquiry.

Is installation support available?

Installation guidance and commissioning support can be arranged for orders in India. Share the site location and floor details so the foundation needs can be advised.
