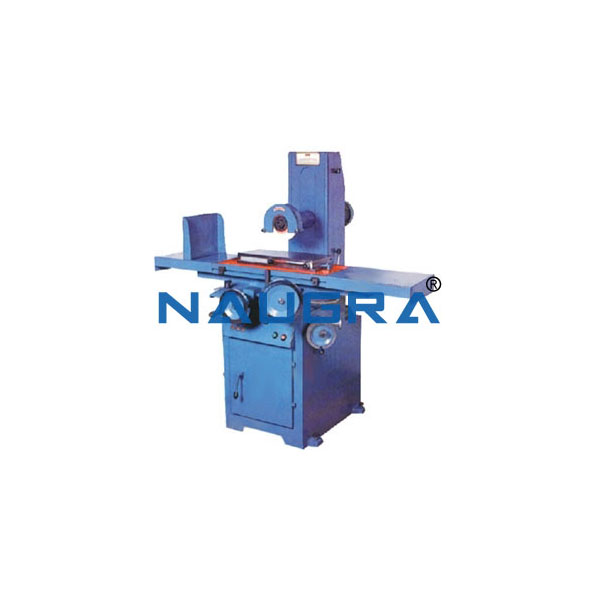

Manual Surface Grinding

Manual Surface Grinding

Code: GMS0001

Manual Surface Grinding.

Working Surface 175x350 225 x 450 250 x 500 300 x 600
of the Table (mm)
Magn. Chuck size 150x300 200 x 450 200 x 500 200 x 500
Max. height from 250mm 275mm 300mm 300mm
table to Grind.Wheel
Vertical Feed Gradu. 0.01 0.01 0.002 0.002
Cross Feed Gradu. 0.05 0.05 0.05 0.05
Size of Grindingl 175x13x 200x13x 200x13x 200x13x
Wheel 31.75mm 31.75mm 31.75mm 31.75mm
Spindle Speed RPM 2800 2800 2800 2800
Ele. Motor H.P. 0.75 1 2 2
