Automatic Drain Valve
Product code: Accessories Kit0001Buy Automatic Drain Valve from India
Automatic Drain Valve
Plants buying air compressor parts and accessories from manufacturers in India want to stop water, oil and dust at the source. Civil Mechanical India is among the suppliers in India of dryers, filters, separators and drain valves that match standard compressor lines.

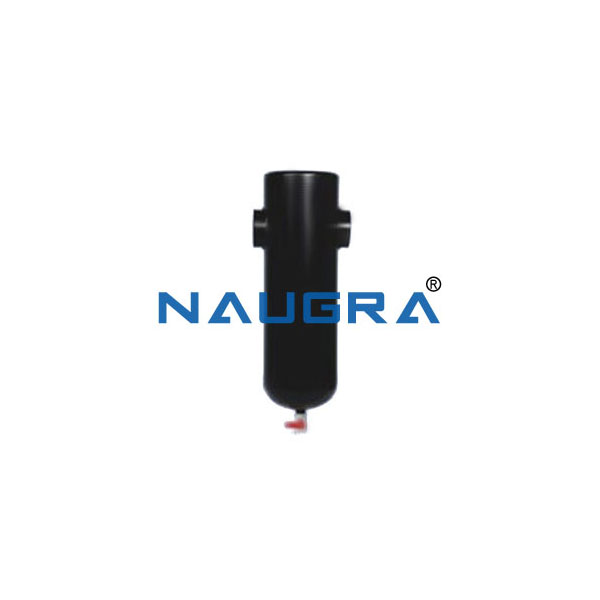

Compressed air leaves a compressor hot and wet, and carries oil mist and dust. The accessories in this range clean it in stages. An aftercooler lowers temperature and removes most moisture, a moisture separator then takes out liquid water, and a drain valve discharges it automatically.

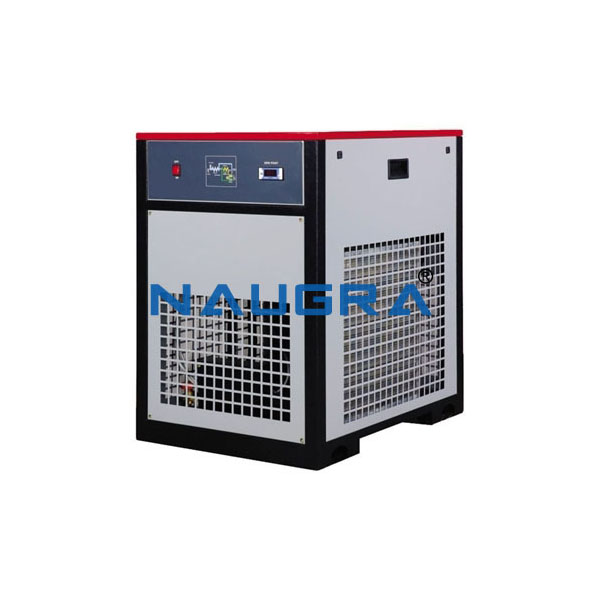

A refrigerated air dryer cools air to a low dew point, and a heatless dryer uses desiccant for very dry air. An activated carbon filter removes oil vapour and odour. Choose by flow rating in cubic metres per hour and by the dew point your process needs.
Last updated: November 2026
Automatic Drain Valve
Refrigerated Air Dryer
Moisture Separator
Activated Carbon Filter
Heatless Air Dryer
| Function | Products | What to confirm |
|---|---|---|
| Cooling and condensate removal | After Cooler, Moisture Separator, Automatic Drain Valve | Air flow rating, line size and connections, maximum pressure and drain type (timer or level). |
| Air drying | Refrigerated Air Dryer, Heatless Air Dryer | Rated flow, pressure dew point, power or purge air consumption, and inlet temperature limit. |
| Filtration | Activated Carbon Filter | Flow capacity, filter grade, maximum working pressure, replacement element life and connection size. |
Air compressor accessories condition the air after compression, covering drying, filtering and condensate removal, and do not compress anything themselves. The compressor machine makes pressure and stores it in a receiver. A kit of parts is selected after the machine, sized to its flow and pressure. Without these accessories, tools wear faster, paint jobs show moisture defects and instruments can fail, so they are bought with the compressor or as an upgrade later.
See also: Air Compressor Machines Suppliers
The complete Air Compressor Parts and Accessories range (6 products), in alphabetical order:
| Activated Carbon Filter | After Cooler | Automatic Drain Valve |
| Heatless Air Dryer | Moisture Separator | Refrigerated Air Dryer |
Match the flow rating in cubic metres per hour to your compressor, and check pressure rating, pipe size, connection type and inlet temperature. Decide the dew point you need, since this sets the choice between refrigerated and heatless dryers. Confirm power supply for dryers and the maintenance of filter elements.
A refrigerated dryer is economical and gives a dew point near freezing, enough for most workshop uses. A heatless desiccant dryer reaches much lower dew points for paint, instruments and cold lines, but uses a share of the air to purge. Choose by process needs.
Garages, spray paint and powder coating shops, fabrication and machine shops, pneumatic tool users, bottling and packing lines, hospitals and technical labs buy air treatment accessories. They are ordered with a compressor or added later, and maintenance teams reorder filter elements and drain valves regularly.
Air leaves a compressor hot and holds a lot of water vapour. An aftercooler cools it, so much of the vapour condenses and can be drained before the air reaches dryers and tools.
Replace elements at the interval given by the maker or when the pressure drop across the filter rises. Activated carbon elements lose capacity with use, so replace them on schedule.
Civil Mechanical India supplies air compressor accessories in India and abroad, matched to your compressor. Send the compressor details, flow and pressure in your enquiry.

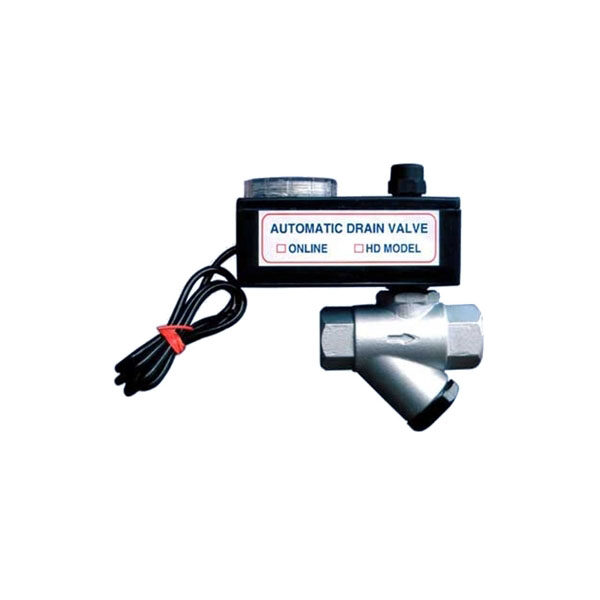

They discharge condensate without manual work, which prevents water from carrying forward. They need periodic cleaning of the strainer. Choose a timer or level type based on your system.
