Swivel Angle Table
Civil Mechanical India is among the Swivel Angle Table manufacturers in India, making angle-setting tables for machining and inspection. If you need swivel angle table suppliers in India, tell us the table size and tilt range and we will quote the model.

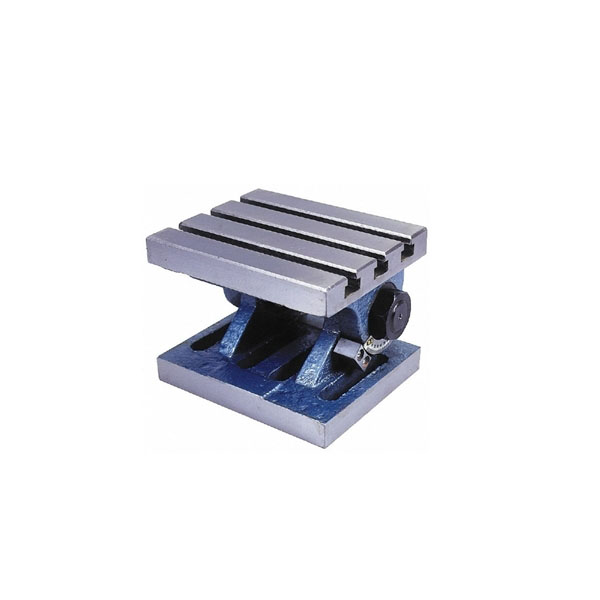

A swivel angle table is a base and a top plate joined by a hinge or a swivel axis, with a graduated scale and a locking arrangement. Our six items include a basic swivel angle table, a compound table that tilts about two axes, a heavy duty version, a precision sine table that sets the angle with gauge blocks, a rotary table and a swivel table for drill presses.
Accuracy of the angular setting, table size and load capacity are what matter. A sine table gives the highest accuracy, because the angle is set using slip gauges over a known centre distance.
Last updated: November 2026
Swivel Angle Table
Compound Angle Table is a table with two perpendicular tilting axes, designed for machining compound angles on small components. Key features include two tilt axes and graduated scales on both axes.
Heavy Duty Swivel Angle Table is a heavy tilting table for large work on bigger machines, designed for setting large and heavy parts at angles during machining.
Precision Sine Table is a ground sine table with hardened rolls and gauge block setting, designed for setting precise angles with gauge blocks for grinding and inspection.
Rotary Swivel Table is a worm driven rotary table that also swivels, designed for indexing and angular setting of round work on drilling and milling machines.
Swivel Angle Table for Drill Press is a tilting angle table that mounts on drill press and milling machine tables, designed for setting workpieces at an angle for drilling and machining.
| Function | Products | What to confirm |
|---|---|---|
| Single axis tilting | Swivel Angle Table, Swivel Angle Table for Drill Press, Heavy Duty Swivel Angle Table | Table size, tilt range, load capacity, T-slot size and clamp lock |
| Compound and rotary setting | Compound Angle Table, Rotary Swivel Table | Axes, worm ratio, scale graduation, table diameter and locking arrangement |
| Precision angle setting | Precision Sine Table | Roll centre distance, flatness, gauge block range and hardness of rolls |
Most workshop machines cut metal or wood. A swivel angle table does not cut at all: it is a work positioning accessory that tilts or rotates a part on the table of a drill, mill or grinder. It has no motor and is rated by table size, tilt range, angular accuracy and load. It extends what a basic machine can do, such as drilling an angled hole or milling a bevel.
See also: Workshop Machines
The complete Swivel Angle Table range (6 products), in alphabetical order:
| Compound Angle Table | Heavy Duty Swivel Angle Table | Precision Sine Table |
| Rotary Swivel Table | Swivel Angle Table | Swivel Angle Table for Drill Press |
A plain graduated table is read to about one degree or better, and a vernier gives finer resolution. A sine table sets the angle with gauge blocks and a sine bar relationship, so it is suited to precision grinding and inspection. Decide on the tolerance your drawings require before choosing.
Match the table size to the largest part and check the rated load, since a thin plate will deflect under heavy work. Look at the clamping slots, the T-slot size and whether the base has keys to align with the machine table. A heavy duty version carries castings and fixtures.
Tool rooms, machine shops, engineering college workshops, polytechnics and ITI machinist trades buy swivel and sine tables. They are normally added to drilling machines, milling machines and surface grinders, along with vices and clamps, to broaden what students can machine. Inspection labs may use a sine table for angle checks.
A compound angle table tilts about two axes at right angles, so a surface can be set to two angles at once. It is used for machining compound bevels and dies. Each axis has its own scale and lock.
The table is tilted by placing slip gauges under one roller, and the angle comes from the sine of the gauge height over the distance between roller centres. This gives angles far more accurately than a plain protractor. It is used mainly for grinding and inspection.
A rotary table turns the part around a vertical axis in a full circle, useful for arcs, circles and indexing. A swivel table tilts the part about a horizontal axis. Some tables combine both.
Yes, we ship from India to overseas workshops. Tables are oiled, wrapped and crated to protect the ground surfaces. Provide the quantity and destination for confirmation.
