Drilling Cum Tapping Machine
Product code: Drilling Cum0001Buy Drilling Cum Tapping Machine from India
Drilling Cum Tapping Machine
Drilling cum tapping machine manufacturers in India supply production shops that need threaded holes done fast. Civil Mechanical India is among the suppliers in India offering bench, floor, arm and multi spindle versions with reversing spindles.
Drilling and tapping on one machine saves handling time and keeps the thread aligned with the hole. The bench model with a reversing spindle drills then taps without moving the work. The floor type has greater capacity for steel and production tapping.
The radial arm version swings over large parts, and the multi spindle head has one spindle for drilling and one for tapping, giving fast hole production. The articulated arm electric tapping machine follows the tap anywhere on the workpiece, useful for large or awkward parts.
Last updated: November 2026
Drilling Cum Tapping Machine

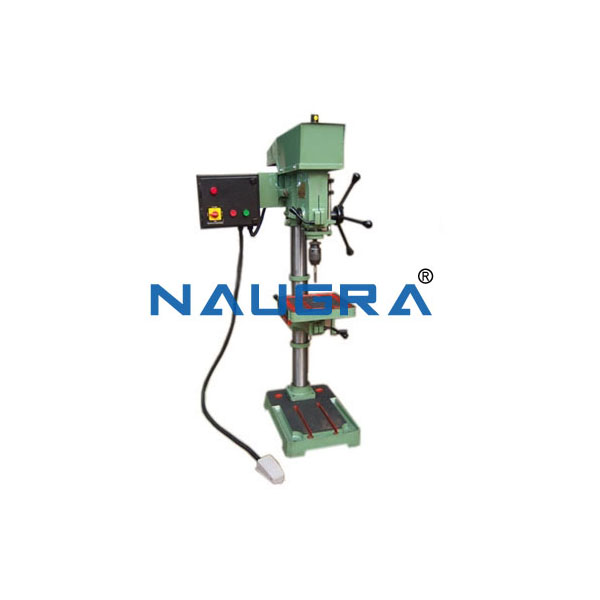

Bench machine with reversing spindle for drilling a hole and tapping it in one set up. Used in fitting shops for threaded holes. Main ratings: drill capacity 13 mm, tap capacity M12, motor 0.5 HP, 230 V AC.
Articulated arm tapping machine that follows the tap anywhere on the workpiece. Used for tapping large components. Main ratings: tap capacity M3-M16, arm reach 600 mm, motor 0.5 HP.
Larger floor model with greater capacity for steel tapping. Used for production tapping in workshops. Main ratings: drill capacity 20 mm, tap capacity M16, motor 1 HP, 415 V AC.
Head with two spindles, one for drilling and one for tapping, for fast hole production. Used in production training. Main ratings: spindles 2, drill capacity 10 mm, tap capacity M10.
Radial arm drilling cum tapping machine with a swinging arm and reversing spindle, used for drilling and tapping holes in large or heavy workpieces without repositioning the job.
| Function | Products | What to confirm |
|---|---|---|
| Bench and floor machines | Bench Drilling Cum Tapping Machine, Floor Type Drilling Cum Tapping Machine | Drilling and tapping capacity in steel, spindle speeds, reversing system and motor power. |
| Large parts | Radial Arm Drilling Cum Tapping Machine, Electric Tapping Machine Arm Type | Arm reach, column height, tap size range and torque control. |
| Fast production | Multi Spindle Drilling Cum Tapping Machine | Spindle count and spacing, speeds of each spindle and fixtures supplied. |
Standard drilling machines only drill holes, and tapping is done separately by hand or on a dedicated machine. A drilling cum tapping machine adds a reversing spindle and tap holder so that the thread is cut right after drilling, with the work held in one position. It saves time and improves thread alignment, though it costs more than a plain drill.
See also: Drilling Machines
The complete Drilling Cum Tapping Machine range (6 products), in alphabetical order:
Check the maximum drilling and tapping size in steel and brass, spindle speed range, reversing mechanism, and motor power and supply. Confirm the column and table size for your parts, the tap holder type, and whether a coolant system is needed.
After cutting the thread, the tap has to be backed out. A reversing spindle runs the tap out automatically at a controlled speed, which stops thread damage and tap breakage compared with hand backing out. Ask about the clutch or torque limiting arrangement that protects small taps.
Production machine shops, auto component makers, fabrication units, ITI machinist trades, polytechnic workshops and tool rooms buy these machines. A full order often includes pillar drills, vices, tap and drill sets and compound sliding tables. Some fabrication units add them for thread-ready brackets and flanges.
Civil Mechanical India manufactures and supplies these in India and for export. Provide the drill and tap sizes for a matching model. Please include the drilling and tapping sizes, the type of machine you prefer and your supply voltage, and we will confirm the model, accessories and packing.
Yes, tapping capacity is higher in soft metals than in steel. Tell us the materials to be tapped for a correct recommendation. Yes, soft metals can be tapped with larger sizes than steel. Tell us the metals and tap sizes in use so we can recommend a model of suitable torque.
Coolant or tapping oil improves tap life, particularly in steel. Ask for a coolant pump if you do production tapping. Tapping oil or coolant extends tap life and gives cleaner threads in steel, so a coolant pump is worth adding for production use. Training use may need only oil applied by brush.
One spindle drills and the other taps, so the hole is drilled and then tapped in quick sequence by moving the head. The two spindles work in sequence rather than together. One is for drilling and the other for tapping, so moving the head brings the right tool over the same hole.
Civil Mechanical India is an established manufacturer and supplier for tender requirements from India, handling civil laboratory and industrial testing tenders and bulk and OEM orders for mechanical engineering and testing laboratory equipment. On receipt of your tender specifications, we will submit a complete quotation for Drilling Cum Tapping Machine.
Send us your equipment list or tender specification. We quote against IS, BS, EN, ASTM and AASHTO standards and ship to 90+ countries.
