CONCRETE MIXER WITHOUT HOPPER
Product code: MIXER WITHOUT0001Buy CONCRETE MIXER WITHOUT HOPPER from India
CONCRETE MIXER WITHOUT HOPPER
Concrete mixer without hopper manufacturers in India build the simplest drum mixer, where labour shovels material straight into the drum. Civil Mechanical India is among the suppliers in India for these machines in electric, diesel, reversing and low-loading formats.
With no hopper or winch to maintain, these mixers are cheap to run and easy to repair, which makes them popular on small jobs and in training workshops. Capacity is given as a cubic feet pair, 8/5 for the smaller drum and 10/7 for the standard site mixer, showing dry material input over wet output.
Options include an electric motor, a diesel engine for locations without power, a reversing drum that discharges by reversing rotation, and a low loading design with a charging height that suits shovelling. Pick by drive and handling.
Last updated: November 2026
CONCRETE MIXER WITHOUT HOPPER

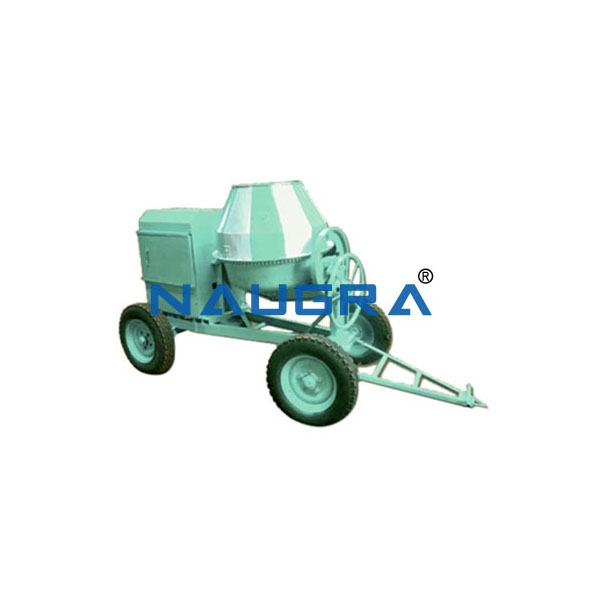

Open drum concrete mixer driven by a diesel engine for locations without a power connection. Used for construction practice and rural technical training where mains supply is unreliable.
Electric motor driven open drum mixer with 8/5 cubic feet capacity. Used in polytechnic workshops for batching practice and preparing concrete for casting experiments. Main ratings: dry capacity 8 cu ft, output 5 cu ft, motor 3 HP, 415 V AC, 50 Hz, three phase.
Concrete mixer with a low charging height that lets workers shovel materials directly into the drum. Used for student casting practice and small site jobs.
Standard 10/7 cubic feet concrete mixer with a tilting open drum for manual charging. Used in civil workshops and sites to mix cement concrete in batches for slabs, footings and test blocks.
Fixed axis reversing drum mixer with an open mouth that mixes in one rotation direction and discharges in the other. Used for concrete practice where tilting gear is not wanted.
| Function | Products | What to confirm |
|---|---|---|
| Electric drive | Electric Concrete Mixer Without Hopper 8/5 CFT, Open Drum Concrete Mixer Without Hopper 10/7 CFT | Capacity in cft, motor power, supply voltage, tilting handwheel and drum thickness. |
| Engine drive | Concrete Mixer Without Hopper With Diesel Engine | Engine power, fuel tank, starting method and drum size. |
| Loading and discharge | Low Loading Concrete Mixer Without Hopper, Reversing Drum Concrete Mixer Without Hopper | Charging height, direction control, discharge angle and operator safety guards. |
Half bag mixers are defined by batch size and are offered with hoppers and trolleys. The without-hopper range is defined by its manual charging and open drum, and covers sizes such as 8/5 and 10/7 cft. Both are drum mixers, but the without-hopper models are simpler, with less to maintain, and require labour to load.
See also: CONCRETE MIXER HALF BAG Suppliers
The complete Concrete Mixer Without Hopper range (6 products), in alphabetical order:
Confirm the drum size (8/5 or 10/7 cft), drive type, and the electrical supply or engine fuel. Check drum plate thickness, the tilting and locking mechanism, the discharge angle, wheels or frame, and whether guards cover belts and gears. Ask about blade replacement and spare parts.
The first number is the dry material capacity and the second is the output of mixed concrete, both in cubic feet. A 10/7 cft mixer takes about ten cubic feet of dry material to make seven cubic feet of concrete.
Small contractors, rural construction units, polytechnic civil workshops, ITI building trades, government works departments and test lab sites buy these mixers. They are placed in lab orders with cube moulds, vibrators and curing tanks. Institutes often add a vibrating table for cube casting.
Yes, Civil Mechanical India manufactures and supplies open drum mixers in India and for export. Mention the drum size and drive. Please give the drum size, drive type and delivery town or port, and we will confirm packing and suitable spares such as blades and drive belts.
Diesel suits remote sites with no mains power. Electric motors are quieter, cheaper to run and better for workshops and labs with a reliable supply.
Yes, that is the design intent. The low loading model reduces the lifting height to make shovelling easier. The open drum is designed for hand charging with a shovel or pan, and the low loading version brings the mouth closer to the ground to reduce effort.
The tilting drum is turned by a handwheel to pour out the batch, while the reversing model discharges when the drum rotation is reversed. Always empty the drum fully before the next batch, and keep hands and tools clear of the mouth while the drum is turning.
Civil Mechanical India is one of the leading manufacturers and suppliers in India for tender requirements, covering civil laboratory and industrial testing tenders and the bulk and OEM supply of mechanical engineering and testing laboratory equipment. Kindly share your tender specifications and we shall submit a complete quotation for Concrete Mixer Without Hopper.
Send us your equipment list or tender specification. We quote against IS, BS, EN, ASTM and AASHTO standards and ship to 90+ countries.
