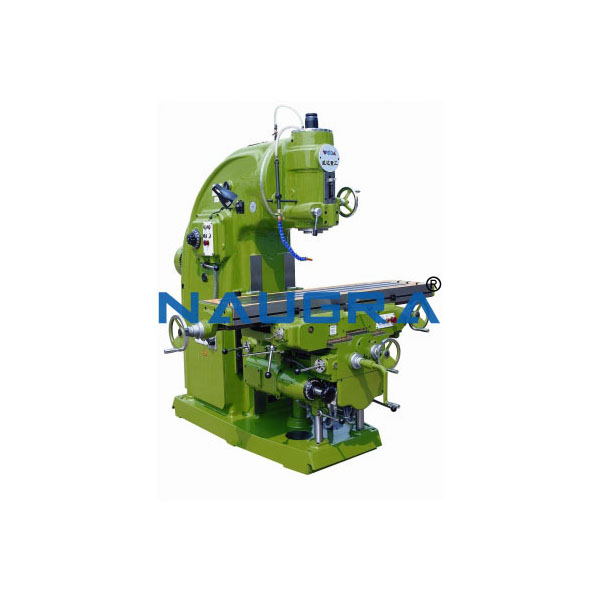

Vertical Milling Machine
| Product code | Milling0003 |
| Categories | Milling Machines |
| Standards | Manufactured to IS / BS / EN / ASTM / AASHTO as applicable |
| Supply | India and export — 90+ countries |
- Description
Vertical Milling Machine
Specification
Vertical Milling Machine
| Working Surface | 1270 x 280 |
| Swivel | ±45° |
| T-Slot No. / Size | 3,17 |
| T-Slot Centre | 65 |
| Longitudinal Travel | 650 |
| Cross Travel | 205 |
| Vertical Travel | 380 |
| FEEDS | |
| No. of Rapid Feeds | 2 |
| Longitudinal Rapid Feeds / Min. | 735-1065 |
| No. of Feeds | 18 |
| Range of Longitudinal / Cross Feed Per Minute | 13 to 305 |
| Range of Vertical Feed Per Miute | 5 to 100 |
| SPINDLE | |
| Spindle Taper | ISO 40 |
| No. of Speeds | 12 |
| Range of Spindle Speeds | 40 to 1120 RPM |
| Distance of Spindle to | |
| Table Min. / Max. | 25 / 380 |
| Distance of Spindle Centre to Column Guide | 300 |
| Vertical Head Tilt | ±90° |
| Manual Quill Travel | 95 |
| ELECTRICALS | |
| Main Motor | 5.0 HP |
| Feed Motor | 2.0 HP |
| Coolant Motor | 0.1 HP |
| DIMENSIONS | |
| Overall Length | 1850 |
| Width | 1600 |
| Height | 2080 |
| Net Weight in Kgs. | 2600 |
| Gross Weight in Kgs. | 2900 |
