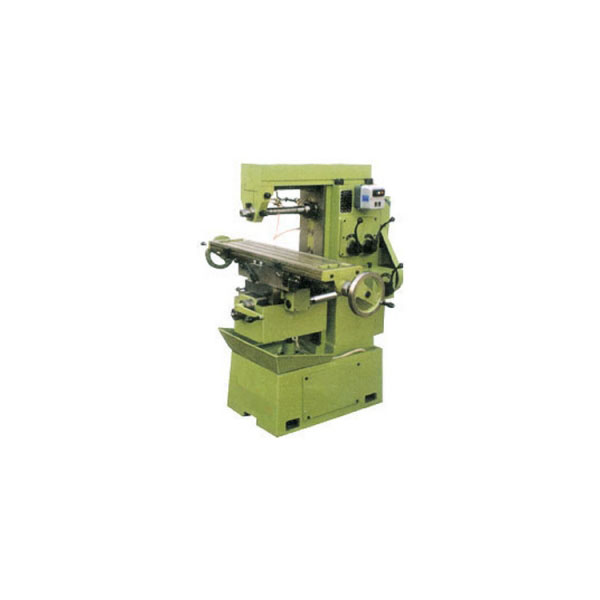

Universal Engraving Cum Milling Machine

Universal Engraving Cum Milling Machine

Specification

Universal Engraving Cum Milling Machine

1. Rough Milling attachment
2. Single Lip Tool Grinder Model MTG-1
3. Indexing workholder
4. Electric Acting Attachment
5. Roll Engraving Attachment
6. Machine vice with seivel base width of 100 mm jaws
7. Rotary table 200 mm
8. Template set A to Z and 0 to 9 height of 20 mm (set of 107 numbers)
9. Machine lamp
10. Dove Tail Strip for Template
11. Auxilary Table

• Electric equipment suitable for 3 phase, 415 Volts, 50 cycles, A C supply.
• Set of servicing Tools
• Two clamps for Workholder
• Two clamps for copyholder
• One spring collet for cutter spindle
• One collet for tracing stylus
• One set of 6 numhers stylus

Drive Motor 1/2 B.H.P.	2800 R.P.M. Cord drive
Spindle
Spindle speed range 1800 to 15000 R.P.M.
Spindle fine adjustment 1/8" (3 mm)
Spindle coarse adjustment 1/4" (6.25 mm)
Spindle collet taper 10°
Pantograph
Pantograph arm largest	1 : 1
smallest	1 :50
Work Table
Longitudinal Travel 12" (300 mm)
Main slide cross travel 6" (150 mm)
Work table clamping area 12" x 6" (300 x 150 mm)
Work table up and down 10" (250 mm)
Copy Holder Table
Copy holder table clamping area 18" x 10" (450 x 250 mm)
Max. Height between copy holder and pantograph arm 3/4" (20 mm)
Weight 350 K.G. approximately.
