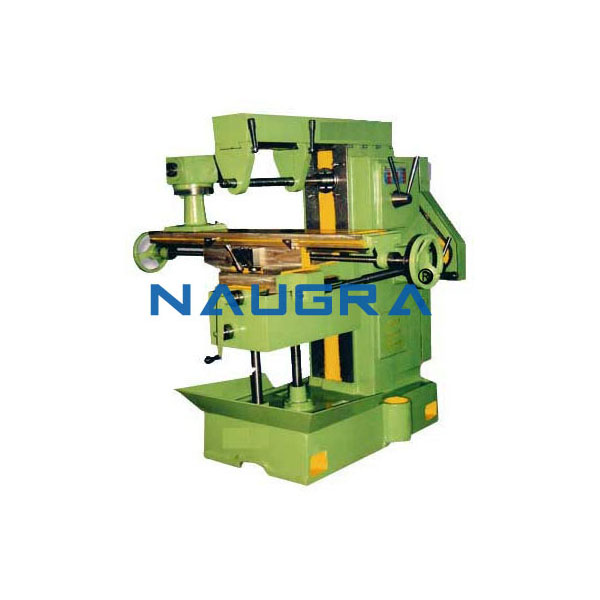

Universal Milling Machine
| Product code | Milling0006 |
| Categories | Milling Machines |
| Standards | Manufactured to IS / BS / EN / ASTM / AASHTO as applicable |
| Supply | India and export — 90+ countries |
- Description
Universal Milling Machine
Specification
Universal Milling Machine
| TABLE | |
| Working Surface | 900 x 210 |
| Number & Size of T-Slots | 3x 13 |
| Distance between T-Slots | 45 |
| FEEDS | |
| Cross | 150 |
| Vertical | 300 |
| Longitudinal | 425 |
| SPINDLE | |
| Arbor | 25.4 |
| Number of Speeds | 6(50 to 1000) |
| Taper | ISO-30 |
| Distance from Spindle to Top (min. - max.) | 10-275 |
| MOTORS | |
| Spindle | 2H.P. 1440RPM |
| Coolant | 0.10 H.P. 2800 RPM |
| WEIGHT | |
| Net | 900 Kg. |
| Gross | 1100 Kg. |
| VERTICAL ATTACHMENT ON RAM | |
| Cross | 110-225 |
| Vertical | 75-300 |
| Speeds for Vertical Head (Ram Type) |
3 (380-960) |
