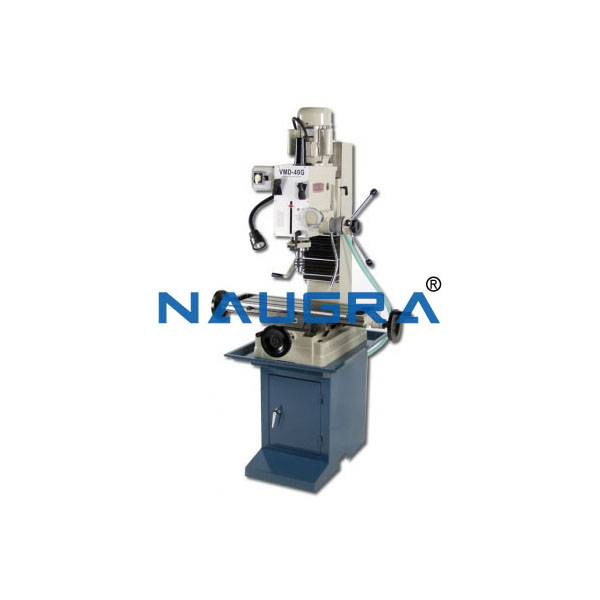

Vertical Miller & Drilling
| Product code | Milling0002 |
| Categories | Milling Machines |
| Standards | Manufactured to IS / BS / EN / ASTM / AASHTO as applicable |
| Supply | India and export — 90+ countries |
- Description
Vertical Miller & Drilling
Specification
Vertical Miller & Drilling
| Suitable for drilling upto | 32 mm | |
| Quill movement | 115 | |
| Taper socket in spindle | Morse No. 3 | |
| No. of spindle speeds | 8 | |
| Range of spindle speeds in RPM | 102, 204, 340, 450, 680, 900, 1450, 2900 | |
| 2-Speed electric motor | 0.75/1.0 HP 1440-2800 RPM | |
| Distance, centre of spindle to column face | 260 | |
| Distance, centre of spindle to bearing housing column | 235 | |
| Maximum distance spindle nose to table surface | 500 | |
| Traverse of table without automatic feed | 390 | |
| Working surface of the table | 560 x 250 | |
| Traverse of table with automatic feed | 365 | |
| Cross traverse of table | 165 | |
| Automatic table feeds | 6, 20 to 315 mm per minute | |
| Net weight | 450 Kg. without auto feed | 500 Kg. with auto feed |
| Gross weight | 550 Kg. without auto feed | 600 Kg. with auto feed |
| Shipping dimensions: Length | 950 without auto feed | 1200 with auto feed |
| Width | 900 without auto feed | 900 with auto feed |
| Height | 1630 without auto feed | |
