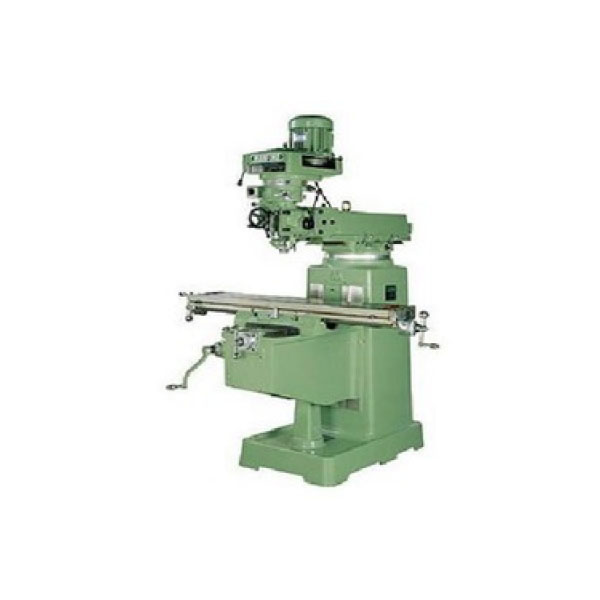

Ram Turret Vertical Milling Machine

Ram Turret Vertical Milling Machine

Code: Milling0008

Ram Turret Vertical Milling Machine.
Ram Turret Vertical Milling Machine

Working Table 1250 x 275
T-Slot No & Size 3 x 13
Distance between T Slots 65
Swivel of Table (for UM Models) 45°
Swivel of Table (for VM Models) Fixed
SPINDLE
Arbour Diameter (only for UM Models) 25.4
No & Range of Speeds 9 (50 to 950)
Taper of Spindle ISO-40
Dist. from Centre of Spindle to Table Top (Min/Max. for VM Models) 15-425
Dist. from Centre of Spindle to Column (For VM Models) 325
VERTICAL HEAD
Swing of Vertical Head to either side (For VM Models) 90°
Manual Quill Movement 65
FEEDS
X - Longitudinal 625
Y - Cross 200
Z - Vertical 405
No. & RANGE OF FEEDS (Feeds per min. / mm)
X - Longitudinal 6 (11 to 75)
Y - Cross 6 (11 to 91)
Z - Vertical 6 (2 to 14)
NO. & RANGE OF RAPID FEEDS
X - Longitudinal 1 (384)
Y - Cross 1 (470)
Z - Vertical 1 (76)
ELECTRICALS
Main Drive (Spindle) Motor (1400 RPM) 2 HP
Feeds Drive Motor (960 RPM) 2 HP
Coolant Motor (2800 RPM) 0.1 HP
VERTICAL ATTACHMENT ON RAM
Cross (Min. / Max.) 135-425
Vertical (Min. / Max.) 100-500
Speeds for Vertical Head (Ram Type) 6 (95 - 550)
Quill Movement (Manual) 50
Electric Drive Motor 1 HP
WEIGHT
Net 2200 Kg.
Gross 2500 Kg
