Soil Testing Equipment Manufacturers and Suppliers in India

Soil Testing Equipment Lab

Quick answer: Soil testing equipment covers everything a geotechnical lab runs on a soil sample: sieves and hydrometers, Atterberg limit devices, Proctor and CBR sets, direct shear and consolidation frames, permeability cells and field density kits. Civil Mechanical India manufactures and supplies it to colleges, labs and road consultants.

A soil lab produces numbers that decide how a road is built or how deep a foundation goes, so the moulds, rings and load frames must be accurate. Civil Mechanical India is among the soil testing equipment manufacturers in India and one of the suppliers in India with a complete range under IS 2720, from grain size to triaxial-support items.

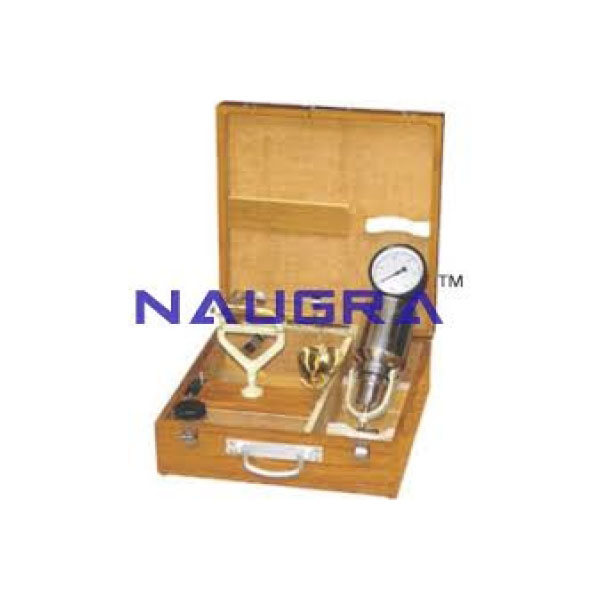

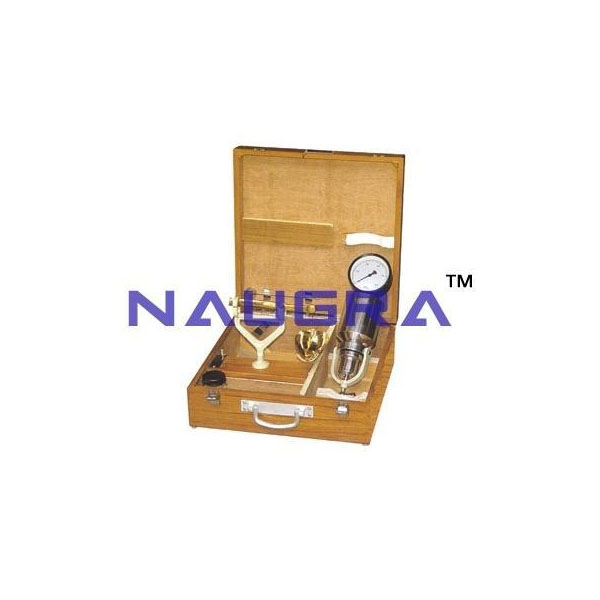

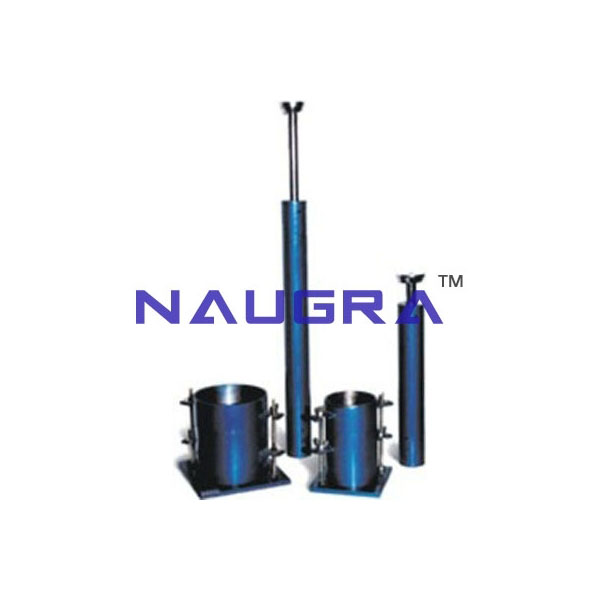

The range follows the usual soil test sequence. Grain size and moisture begin with IS 460 sieves, a hydrometer and rapid moisture meter or infrared balance. Atterberg limits use the Casagrande liquid limit apparatus, plastic limit device, shrinkage set and a cone penetrometer. Compaction is covered by Proctor moulds in 1000 cc and 2250 cc sizes, and bearing strength by laboratory, digital and field CBR apparatus, plate bearing and dynamic cone sets.

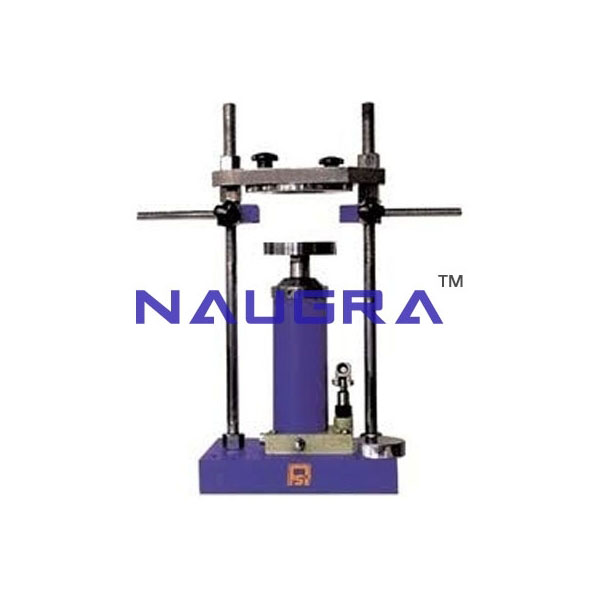

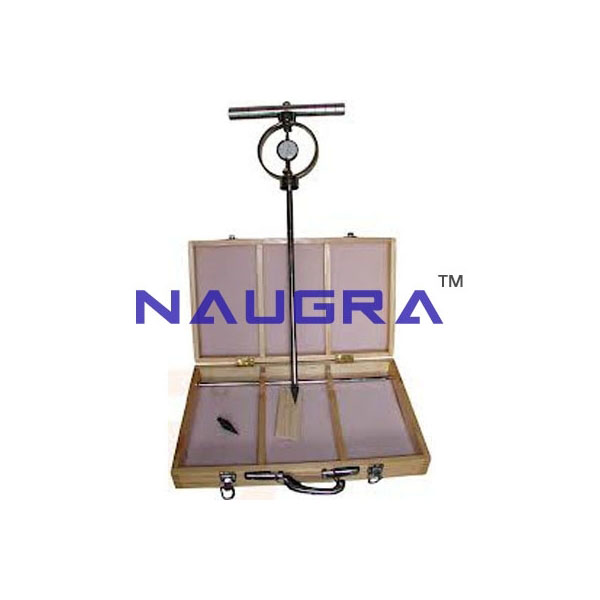

Shear and compressibility tests use direct shear machines in motorised and digital models, unconfined and vane shear testers, and single, three and six gang consolidation apparatus. Permeability cells, relative density apparatus, extractor frames, sampling augers and a load frame complete the set, with a proving ring for every load measurement.

Last updated: November 2026

Soil Testing Equipment range by function

FunctionProductsWhat to confirm

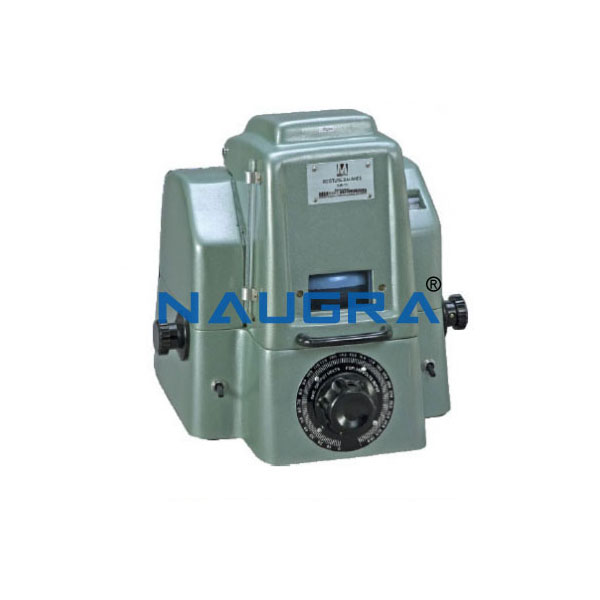

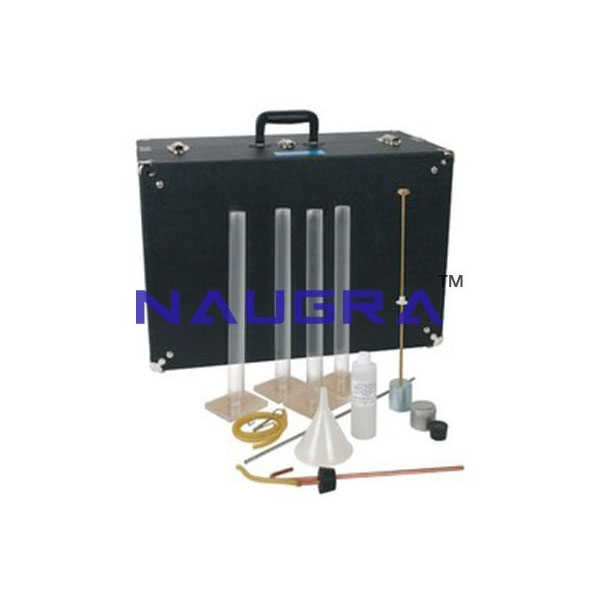

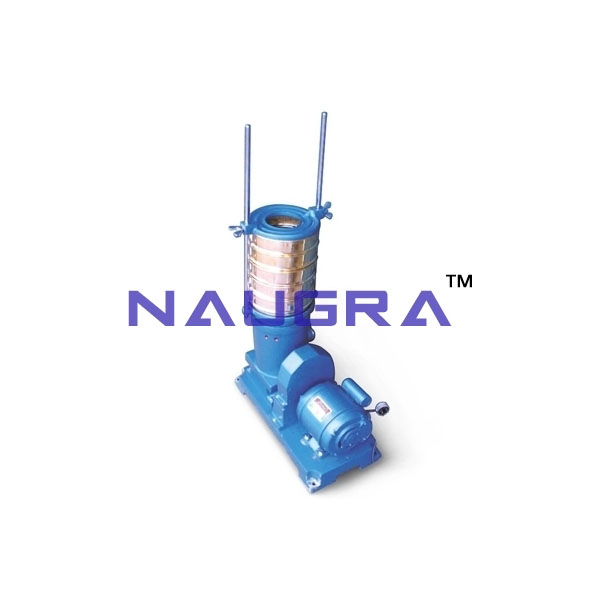

Grain size and moistureSoil Sieve, Test Sieves, Coarse Sieves, Soil Hydrometer, Infrared Moisture Balance, Rapid Moisture MeterSieve diameter and aperture series per IS 460, frame material, hydrometer scale type, moisture balance accuracy and power supply.

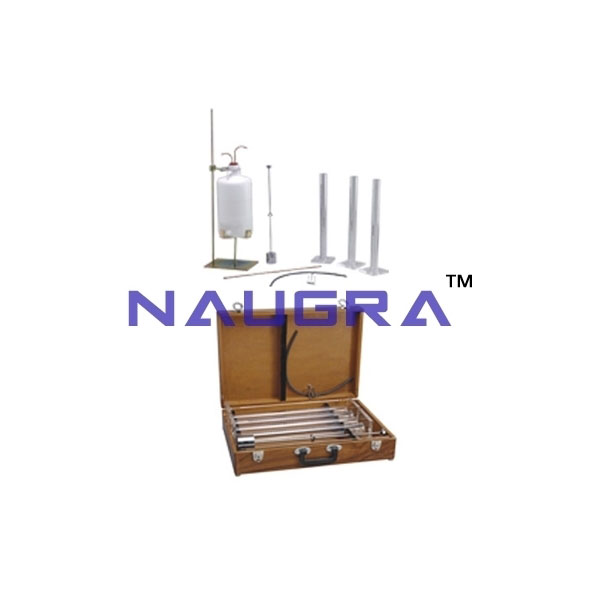

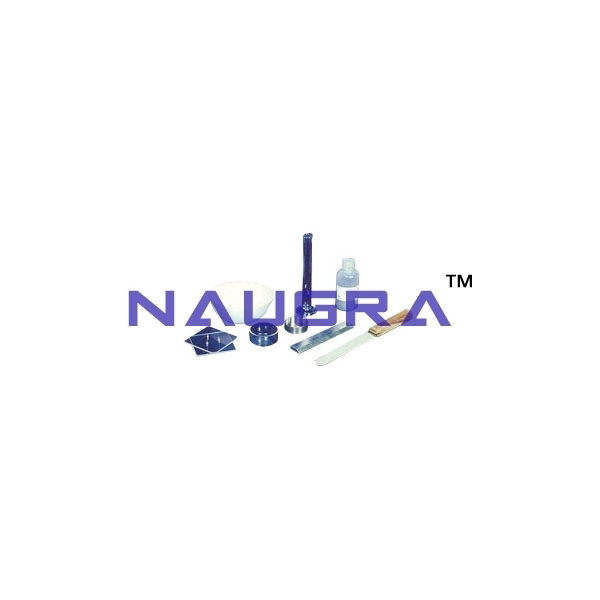

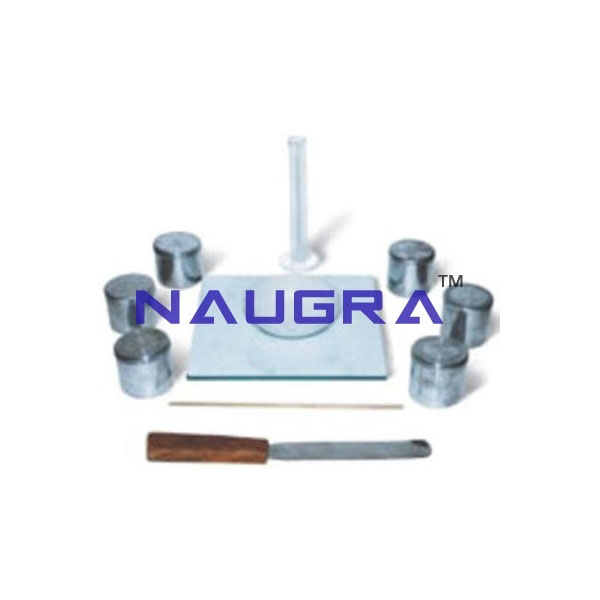

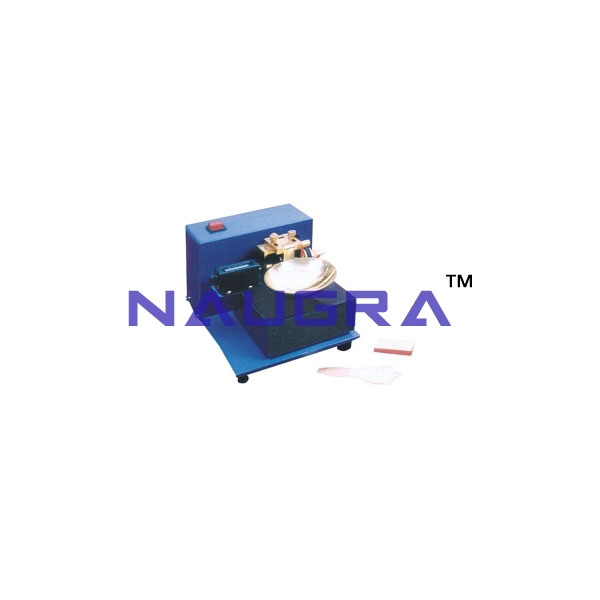

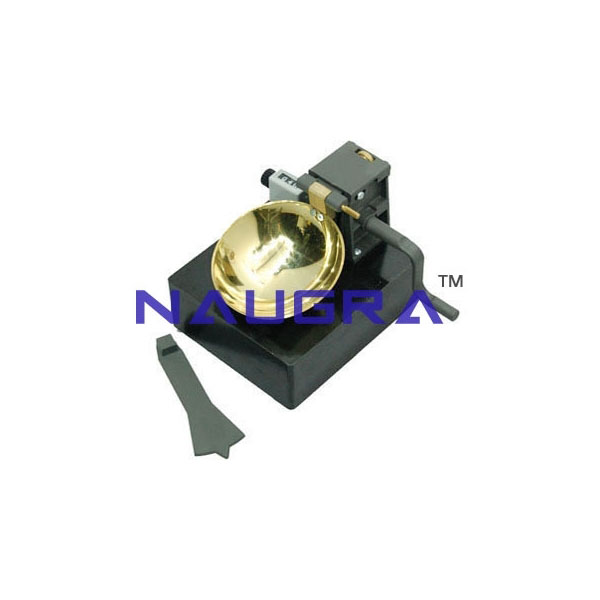

Atterberg limits and classificationLiquid Limit Apparatus, Plastic Limit Device, Shrinkage Limit Set, Cone Penetrometer, Sand Equivalent Value Test ApparatusCup and base material, grooving tool type, cone angle and mass, and the standard (IS 2720 Part 5 or BS 1377).

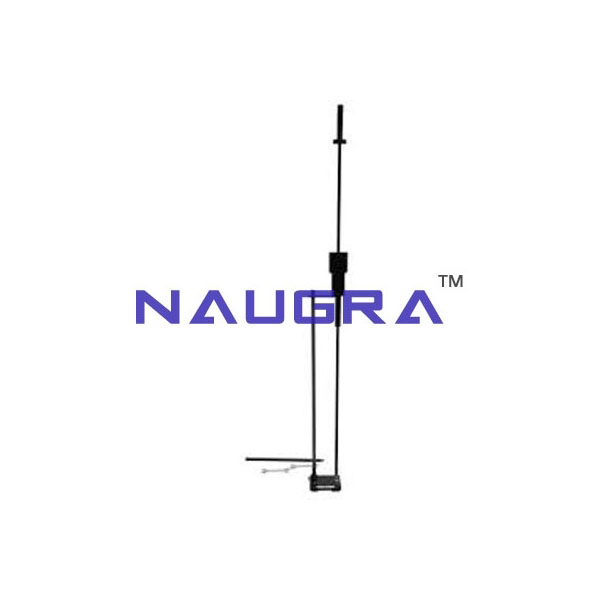

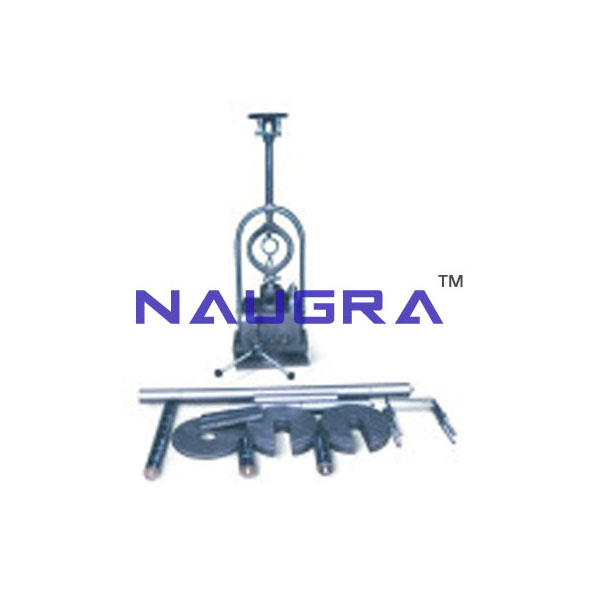

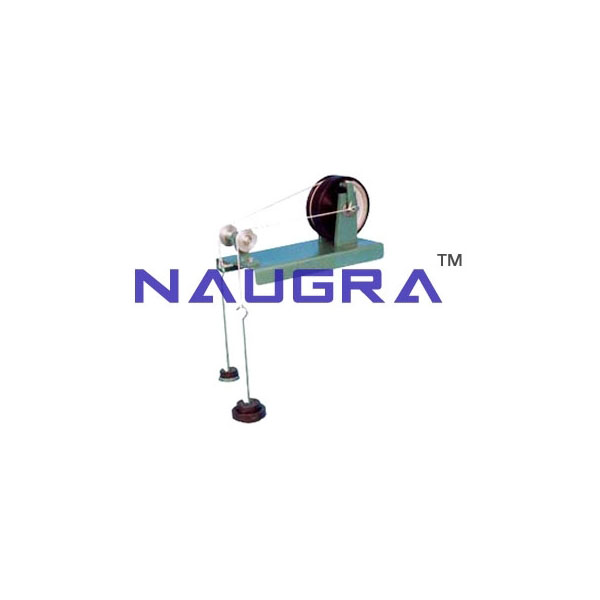

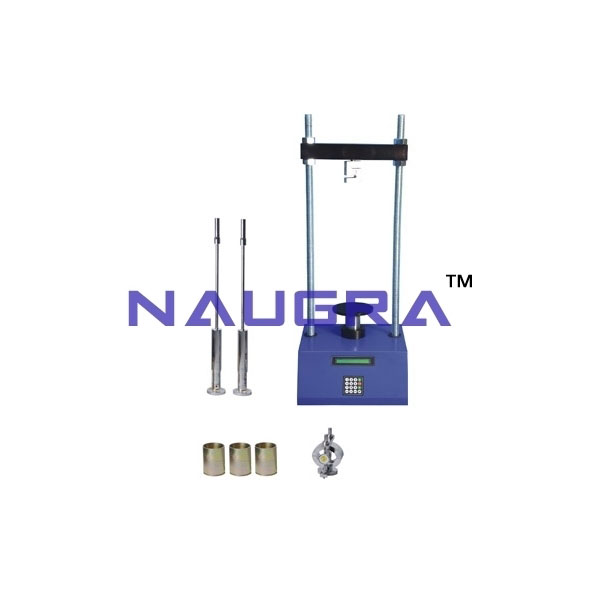

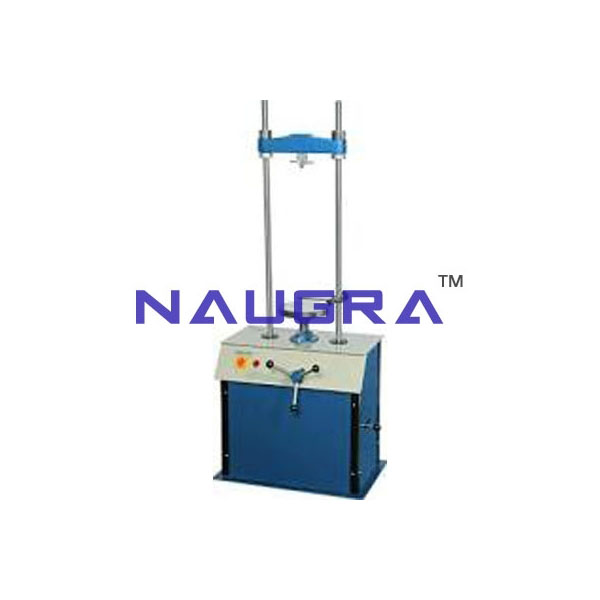

Compaction and bearingProctor Compaction Apparatus, Laboratory CBR Apparatus, Digital CBR Apparatus, Field Type CBR Apparatus, Plate Bearing Test Apparatus, Dynamic Cone Penetration ApparatusMould volume (1000 cc, 2250 cc), CBR load capacity, rate of penetration, digital or dial readout and field reaction arrangement.

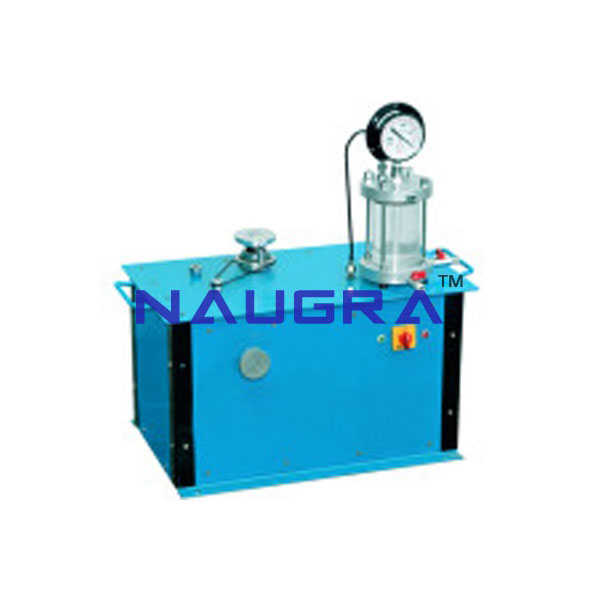

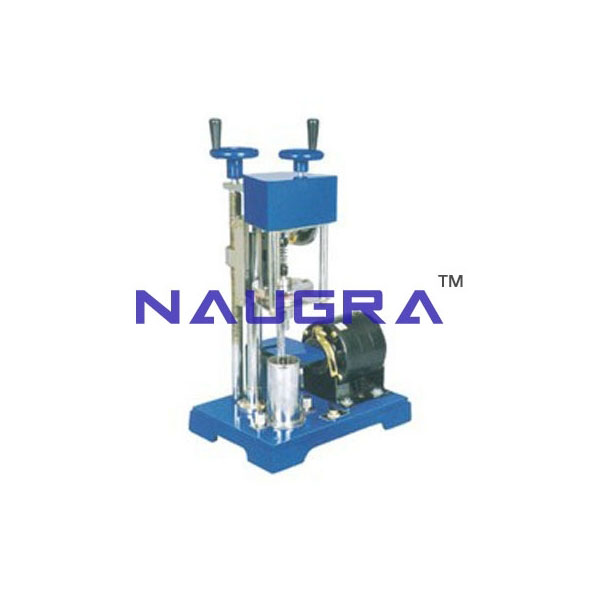

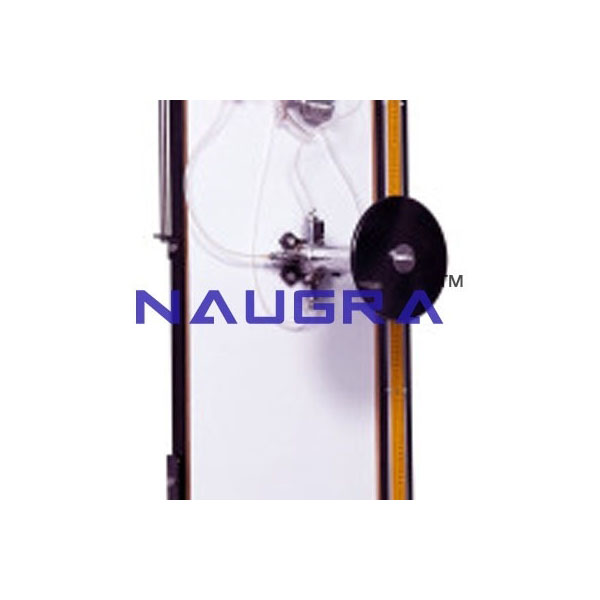

Shear strength and consolidationDirect Shear Apparatus (Motorised Model), Direct Shear Apparatus (Digital Model), Unconfined Compression Tester, Laboratory Vane Shear, Consolidation Test Apparatus, Bishop Pore Pressure ApparatusShear box size (60 x 60 mm), strain rate range, load capacity, ring size and number of consolidation units, and data logging options.

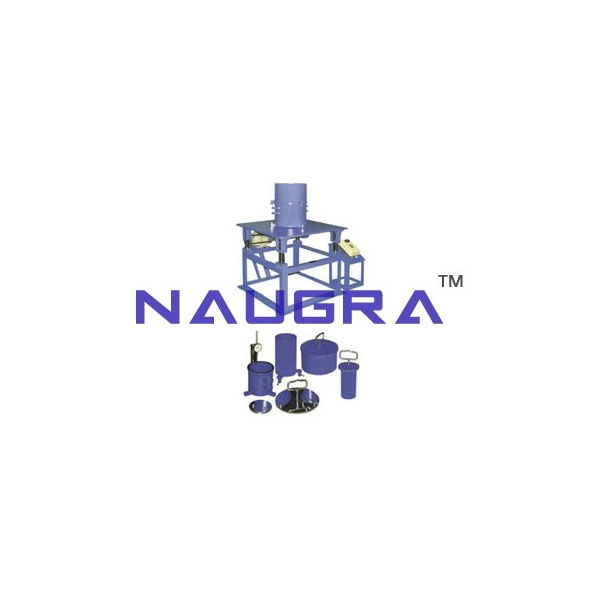

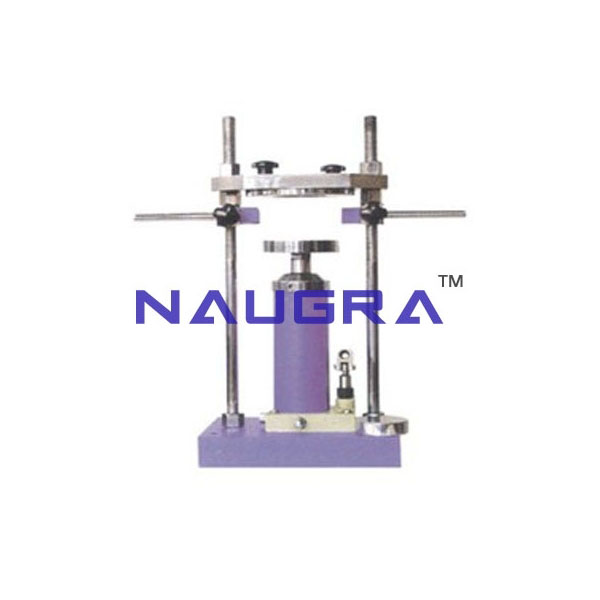

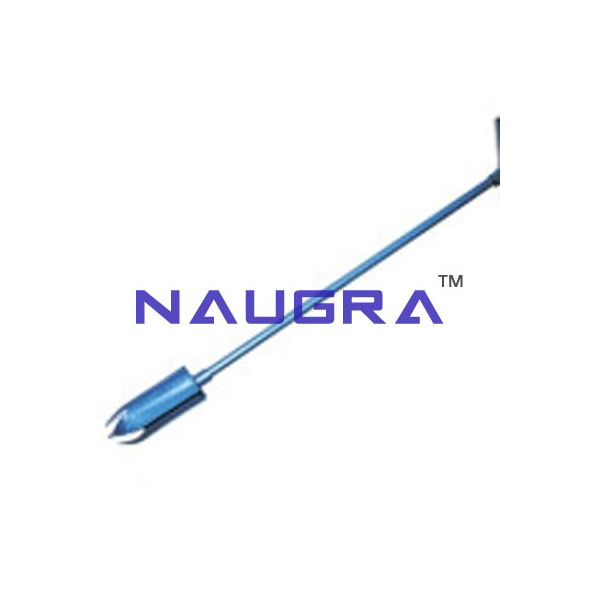

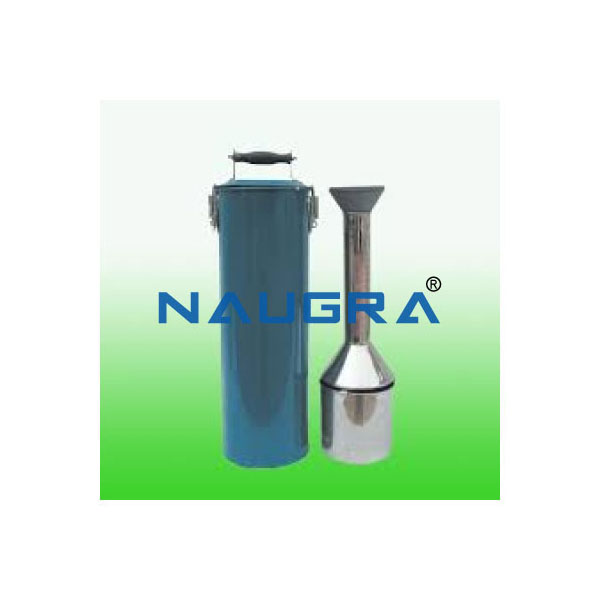

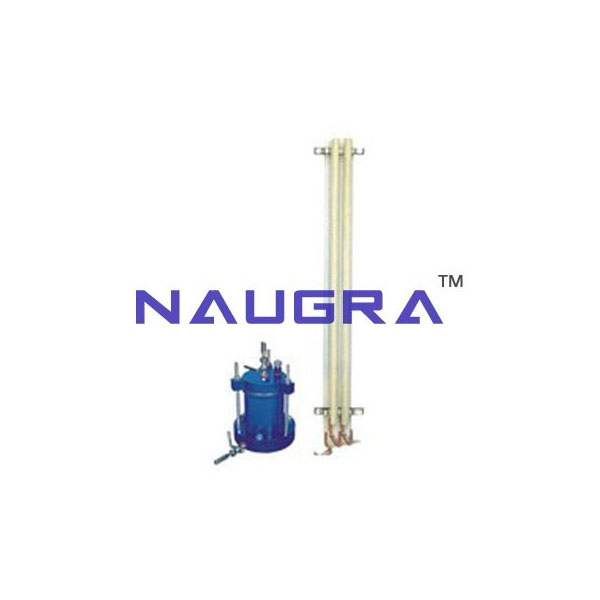

Permeability, density and field kitsSoil Permeability Apparatus, Field Density Test Apparatus (Core Cutter Method), Sampling Outfits Augers, Extractor Frame (Hydraulic), Relative Density ApparatusPermeameter cell size, constant or falling head, cutter volume, auger length and extension rods.

How is this different from site investigation equipment?

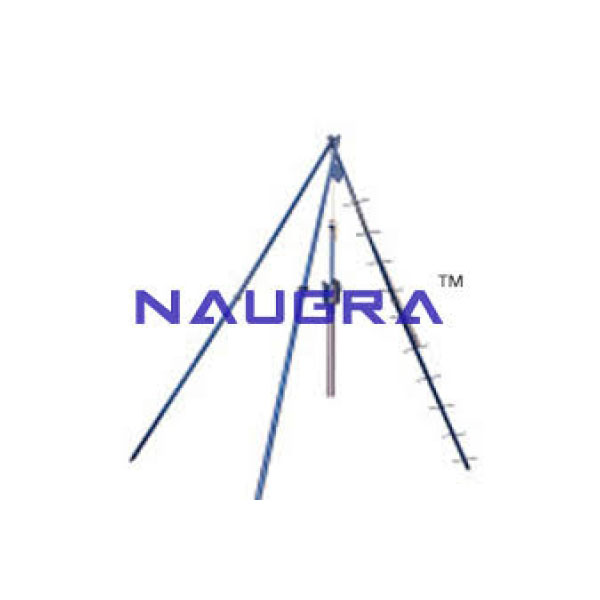

Soil testing equipment does the detailed work in a laboratory on disturbed or undisturbed samples: classification, compaction, strength, consolidation and permeability. Site investigation equipment collects the data in the field, such as SPT blow counts, bore samples and in-place density. The lab uses what the field kit brings back, so a soil engineer typically needs both.

See also: Site Investigation Equipments

Full Soil Testing Equipment product list

The complete Soil Testing Equipment range (42 products), in alphabetical order:

Specifications and standards

What should be checked before ordering CBR and compaction equipment?

Check the compaction mould volume (1000 cc or 2250 cc) and rammer weight against IS 2720 Part 7 or 8. For CBR, confirm load frame capacity (50 kN is typical), loading speed of 1.25 mm per minute, proving ring or digital load cell range and the moulds, surcharge weights and swell plate that go with it.

How do I choose between motorised and digital direct shear machines?

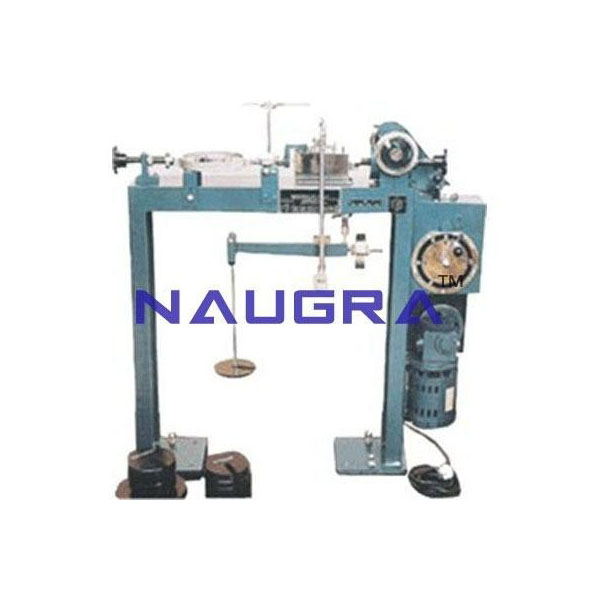

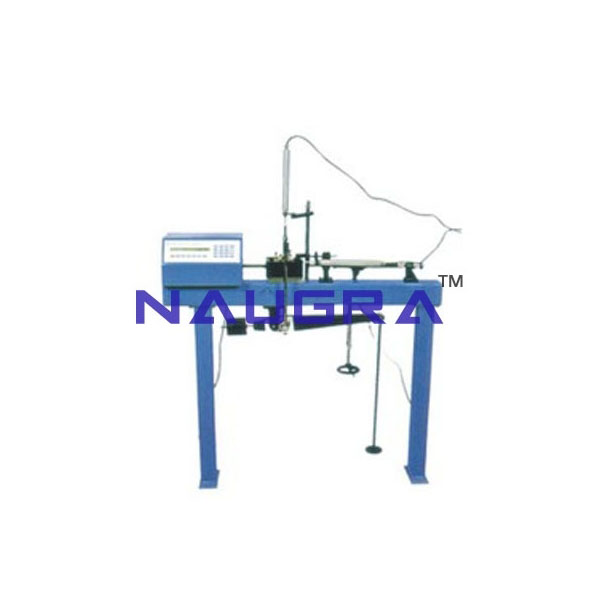

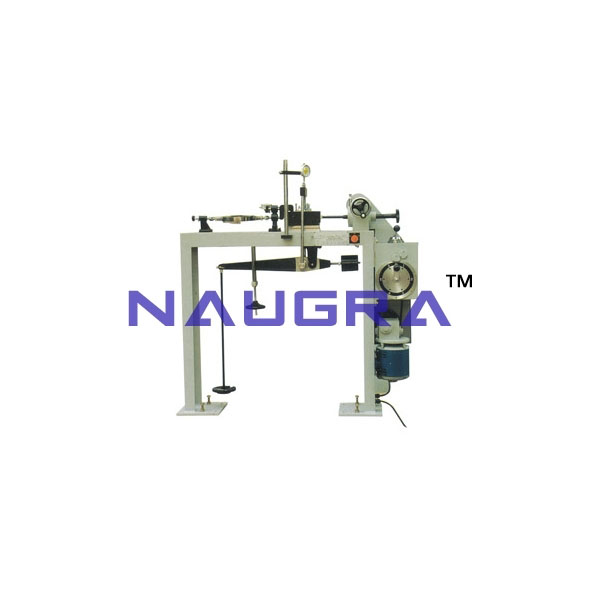

The motorised model gives constant strain rate with a dial or proving ring reading. The digital model records load and displacement electronically, which saves time and reduces reading error. Check shear box size (60 x 60 mm is common), range of strain rates and the normal load hanger weights supplied.

What accessories are often forgotten in a soil lab order?

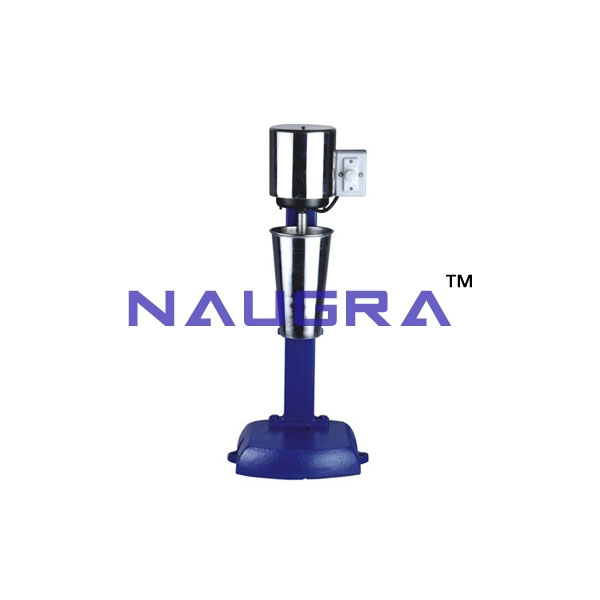

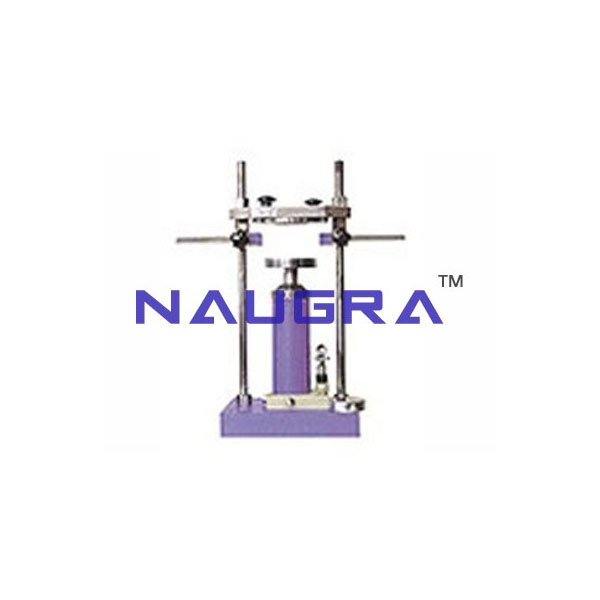

Extractor frames to push samples from moulds, balances and ovens, a high speed stirrer for hydrometer tests, spare porous stones and filter papers, and proving rings with calibration charts. List consumables and spares in the first enquiry so the lab is usable on day one.

Who buys Soil Testing Equipment?

Civil engineering colleges and polytechnics buy the complete soil mechanics lab for the geotechnical curriculum. Highway consultancies and construction quality teams order CBR, Proctor and field density sets for road and embankment checks, while foundation specialists want consolidation and shear apparatus. Government material testing labs and soil conservation departments also purchase sieve sets and Atterberg kits in volume.

Related ranges

Frequently asked questions

What is the difference between standard and modified Proctor?

Both find the maximum dry density and optimum moisture content. Standard Proctor uses a 2.6 kg rammer, 310 mm drop, while modified uses 4.9 kg dropped 450 mm and gives higher density for heavy loading such as airfield pavements.

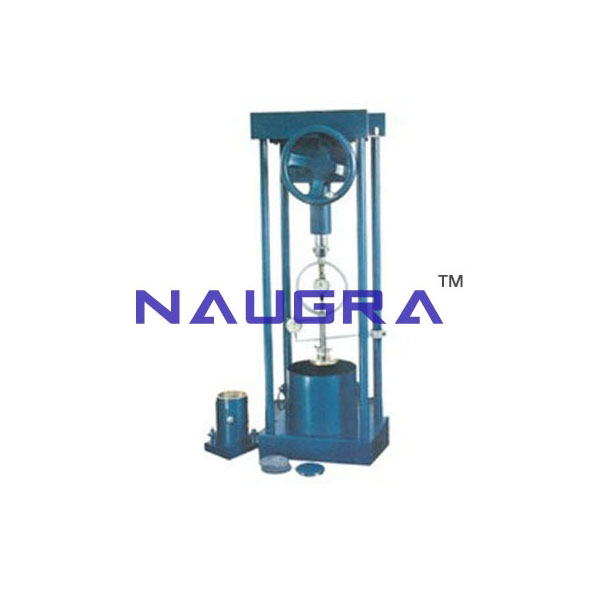

Why does CBR testing include a soaking period?

Samples are soaked for four days to simulate the worst moisture condition under a pavement, and swell is measured at the same time. This is why swell plates and dial gauges are part of the CBR set.

Do I need a consolidation machine with three gangs?

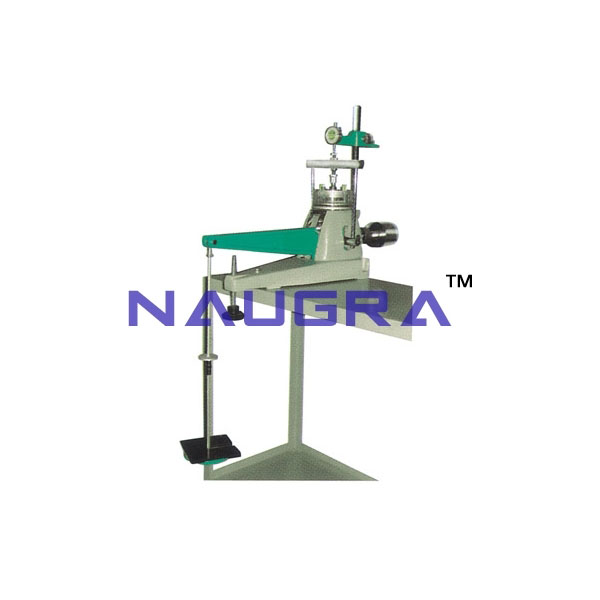

Three gangs allow three tests to run at once, which shortens the work for a busy lab. A single gang is enough for teaching. Check the ring size (60 mm diameter), lever ratio and dial gauge least count.

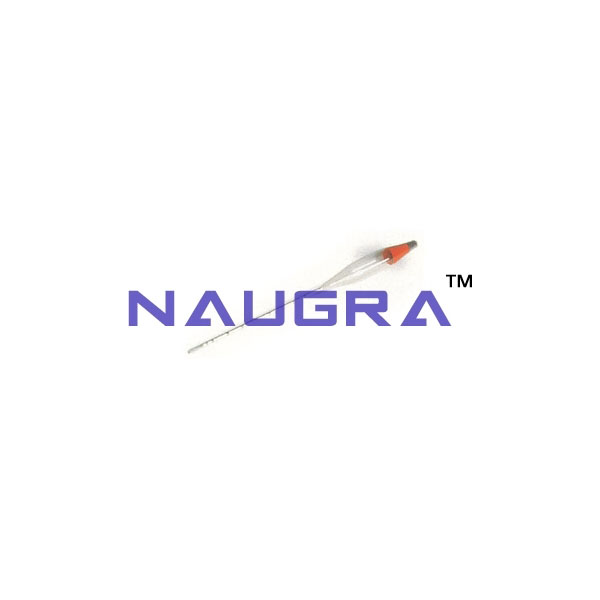

What does the hydrometer test measure?

It finds the particle size distribution of fine soil below 75 microns by tracking the density of a settling suspension. It needs a hydrometer, jars, a dispersing agent and a high speed stirrer.

Can the soil testing set be supplied for a tender?

Send the BOQ or tender specification along with the destination country, and we will price each item against the same IS references so the quote can be compared line by line.
