Standard Penetration Test Apparatus
Before a footing or embankment is designed, someone has to drive a split spoon, pull a core and record the numbers. Civil Mechanical India is among the site investigation equipment manufacturers in India of SPT and sampling kits, and supplies them as one of the suppliers in India serving geotechnical firms and civil colleges.
The central item is the standard penetration test apparatus. It includes a 65 kg drive weight fitted with chain, a guide pipe assembly with driving head, split spoon sampler and drill rods, and counts blows for the last 300 mm of a 450 mm drive to give the N value that engineers use to estimate sand density and clay consistency.
The core cutter soil sampling kit finds in-place dry density: a steel cutter of about 100 mm diameter and 130 mm height is driven in with a dolly and rammer, and the soil is weighed and dried. A concrete penetration apparatus is listed for assessing setting of fresh concrete. The range also contains small chemical engineering demonstration setups such as a fluidized bed dryer, packed bed absorption column and vapour liquid equilibrium unit.
Last updated: November 2026
Standard Penetration Test Apparatus
Concrete Penetration Test Apparatus
Vapour Liquid Equilibrium Set-Up
Absorption In Packed Bed
A field kit with core cutter, dolly and rammer for finding in place dry density of soil. Used in site investigation and earthwork quality control.
| Function | Products | What to confirm |
|---|---|---|
| Penetration and field strength | Standard Penetration Test Apparatus, Concrete Penetration Test Apparatus | Drive weight (65 kg per IS 2131), fall height, rod and split spoon dimensions, guide pipe and tripod arrangement, and carrying cases. |
| Soil sampling and density | Core Cutter Soil Sampling Kit | Cutter diameter and height (commonly 100 mm by 130 mm), dolly and rammer included, material and extraction accessories. |
| Process demonstration setups | Fluidized Bed Dryer, Absorption In Packed Bed, Vapour Liquid Equilibrium Set-Up | Column and vessel size, material (glass or steel), utilities such as air, water and electric supply, and the experiments included. |
Site investigation tools work outdoors, on the ground being studied, so the kit is robust, portable and aimed at in-situ results: blow counts, sampling and field density. Soil testing equipment is mostly bench-top instruments used in a lab on samples brought back, such as Proctor moulds, shear boxes and consolidation frames. A geotechnical programme normally uses both.
See also: Soil Testing Lab Equipment
The complete Site Investigation Equipment range (6 products), in alphabetical order:
| Absorption In Packed Bed | Concrete Penetration Test Apparatus | Core Cutter Soil Sampling Kit |
| Fluidized Bed Dryer | Standard Penetration Test Apparatus | Vapour Liquid Equilibrium Set-Up |
IS 2131 specifies a hammer of about 65 kg falling a fixed height of 750 mm, so confirm the weight, fall height guide and anvil head. Check split spoon dimensions (50.8 mm outside, 35 mm inside), rod length and thread type, and whether a tripod, pulley and winch are included for hand rig operation.
A cutter, dolly, rammer and a spatula or trimming tool. It is used in cohesive soils and compacted fill to find field dry density. Check the cutter volume, steel quality and the sharpness of the cutting edge, which affects disturbance of the sample.
They belong to chemical engineering practicals, not to field work. Before ordering for a process department, check glass column and vessel size, the utilities needed (compressed air, water, a CO2 cylinder) and whether all instruments are supplied with each setup.
Geotechnical investigation firms, foundation contractors and highway consultancies buy SPT and core cutter kits for field programmes. Civil engineering colleges buy them for soil mechanics practical work and site visits. Quality control teams on earthwork projects use the core cutter kit to verify compaction. Chemical engineering departments purchase the demonstration setups listed here.
It is the number of hammer blows needed to drive the sampler the final 300 mm of a 450 mm drive. Higher values indicate denser sands or stiffer clays, and corrections are applied for depth and rod length.
With a tripod and hand rig, a few metres to around 10 m is typical in softer soils. Deeper work needs a mechanised rig, so tell us your depth and soil type.
No, it suits fine-grained and cohesive soils and compacted fill. In coarse or gravelly soil the cutter cannot be driven cleanly and the core falls apart, so a sand replacement method is used instead.

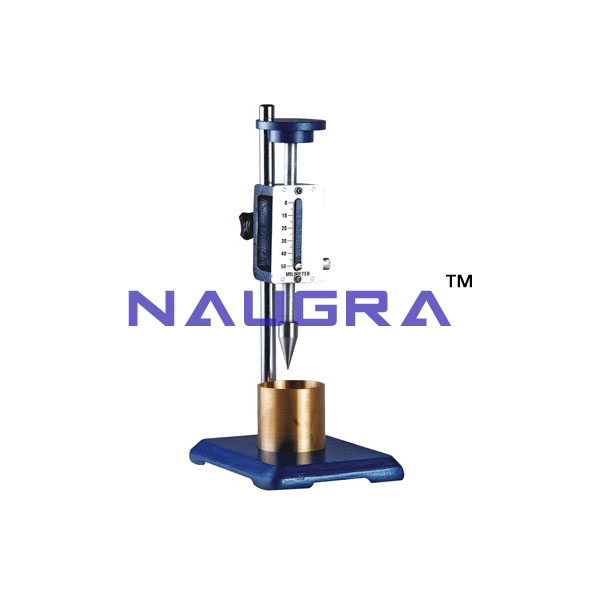

It measures resistance of mortar or concrete to a penetrating needle over time, which is used to estimate initial and final setting. A set of needles and a reaction frame is needed.
We can pack SPT rods, hammer and sampling kits for sea or air shipment, and the quote lists each component separately so customs paperwork stays simple for overseas project sites.
As established manufacturers and suppliers for tender requirements from India, we undertake civil laboratory and industrial testing tenders as well as bulk and OEM supply of mechanical engineering and testing laboratory equipment. Please forward your tender specifications and our team will prepare a detailed quotation for Site Investigation Equipment.
Send us your equipment list or tender specification. We quote against IS, BS, EN, ASTM and AASHTO standards and ship to 90+ countries.
