Concrete Testing Laboratory Equipments
A concrete lab must cast, compact and measure a mix the same way every time, and that depends on well-machined moulds and correct workability tools. Civil Mechanical India is among the concrete testing equipment manufacturers in India, and among the suppliers in India who also provide self-compacting concrete test kits and small batching plants.
The range is arranged along the life of a concrete sample. Fresh-state tools include the slump cone, Vee Bee consistometer, air entrainment meter, concrete penetrometer and thermometer, and a set of SCC instruments (J-ring, O-funnel, L-box and fill box) for flowing mixes. Casting needs cube moulds, cylindrical moulds, a vibrating table or poker vibrator and a mixer, with a weigh batcher or mini mobile batching plant when mixes are proportioned by weight.
Hardened-state equipment includes the permeability apparatus, lateral extensometer for modulus and Poisson ratio, volume change apparatus, and tile flexural and abrasion testers for precast products. Compression machines are listed separately in the compression testing range.
Last updated: November 2026

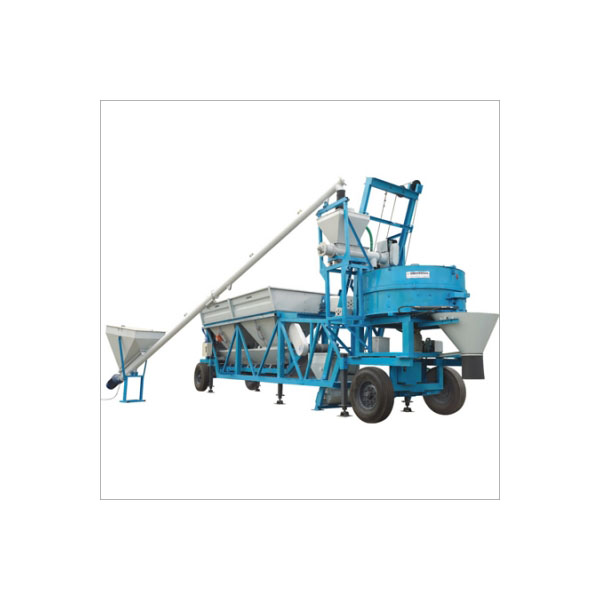

Mini Mobile Batching Plant
Product code: Concrete0003Buy Mini Mobile Batching Plant from India
Mini Mobile Batching Plant

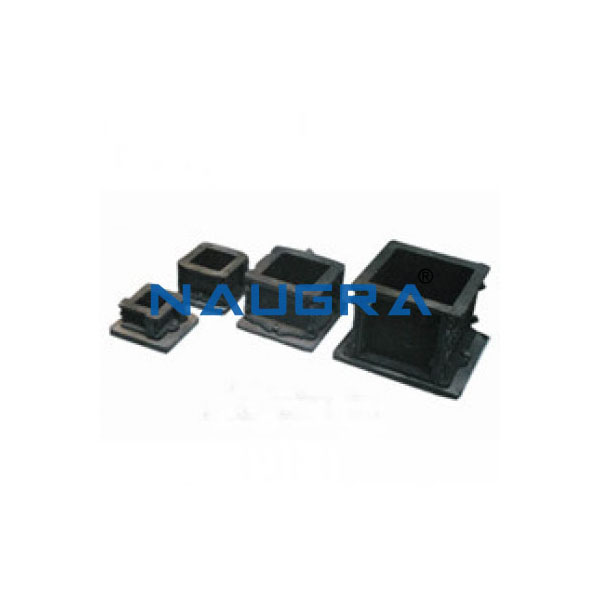

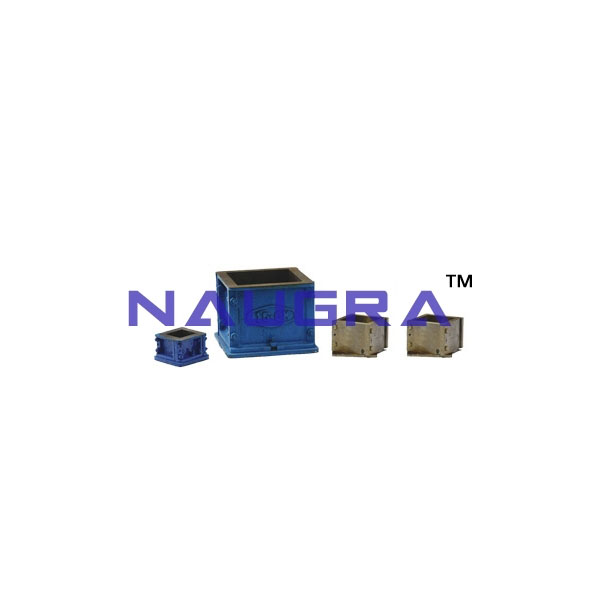

Precision Engineered Cube Mould
Product code: Concrete0004Buy Precision Engineered Cube Mould from India
Precision Engineered Cube Mould

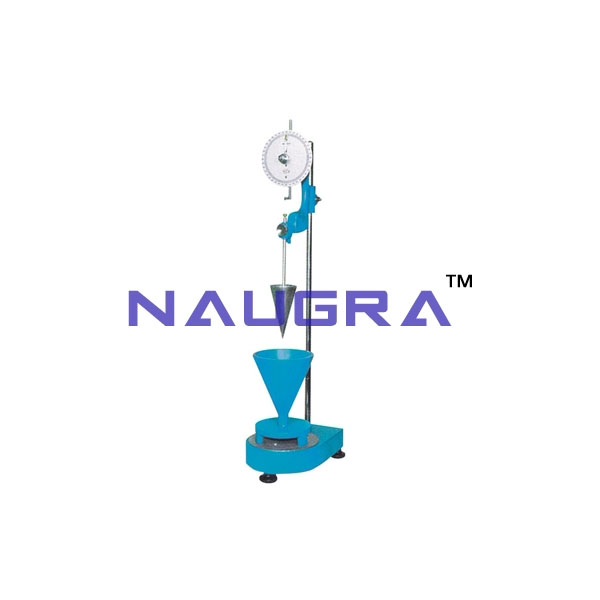

Concrete Penetrometer
Product code: Concrete0006Buy Concrete Penetrometer from India
Concrete Penetrometer

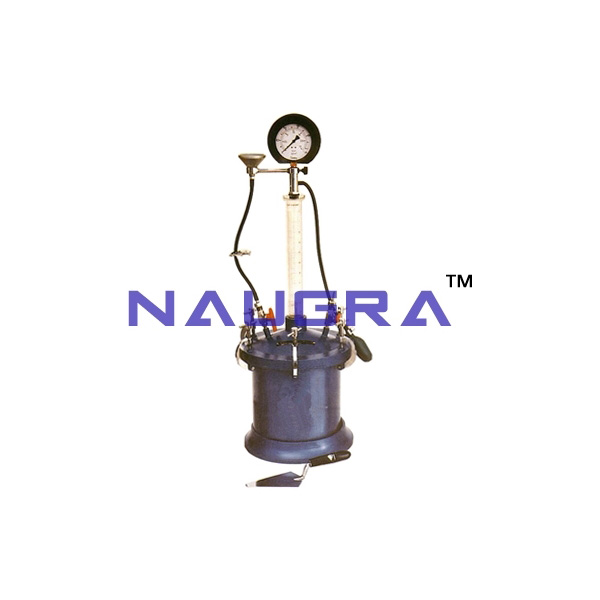

Air Enterainment Meter
Product code: Concrete0007Buy Air Enterainment Meter from India
Air Enterainment Meter

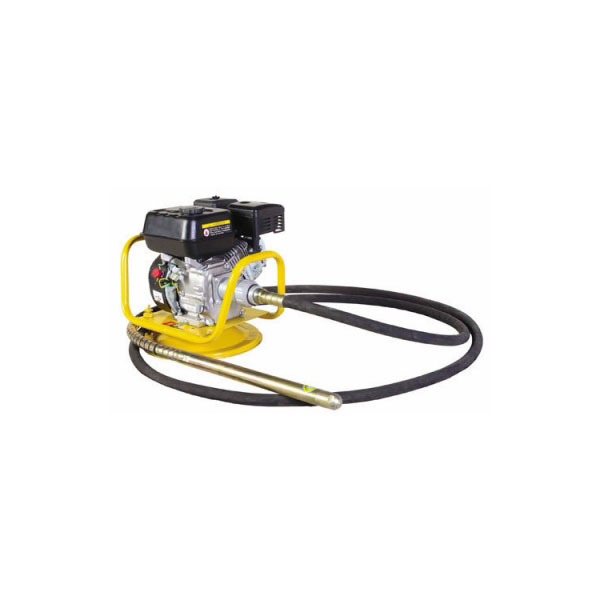

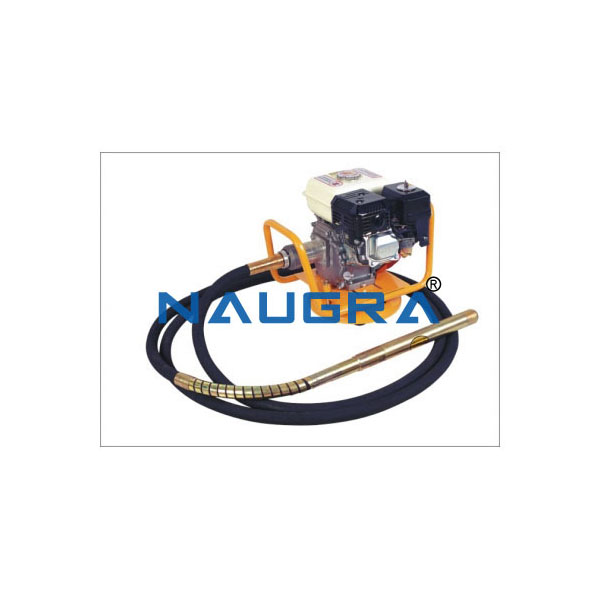

Concrete Vibrator Machine With Nozzle
Product code: Concrete0008Buy Concrete Vibrator Machine With Nozzle from India
Concrete Vibrator Machine With Nozzle

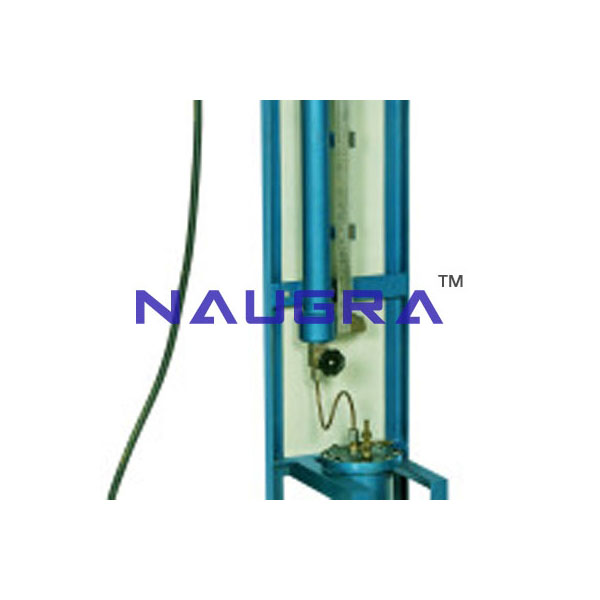

Concrete Permeability Apparatus
Product code: Concrete0011Buy Concrete Permeability Apparatus from India
Concrete Permeability Apparatus

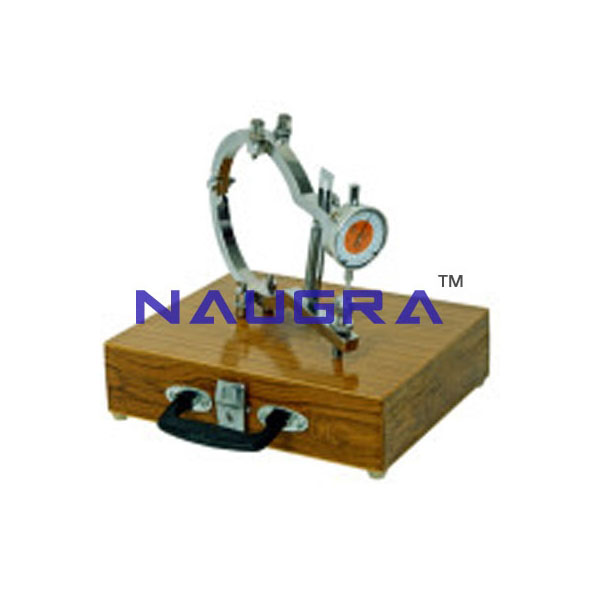

Lateral Extensometer
Product code: Concrete0012Buy Lateral Extensometer from India
Lateral Extensometer

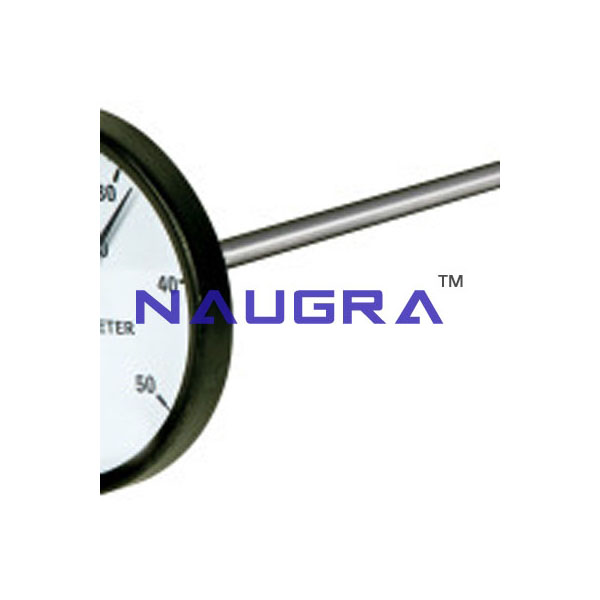

Concrete Thermometer
Product code: Concrete0013Buy Concrete Thermometer from India
Concrete Thermometer
Fill Box For Scc Test
Product code: Concrete0014Buy Fill Box For Scc Test from India
Fill Box For Scc Test

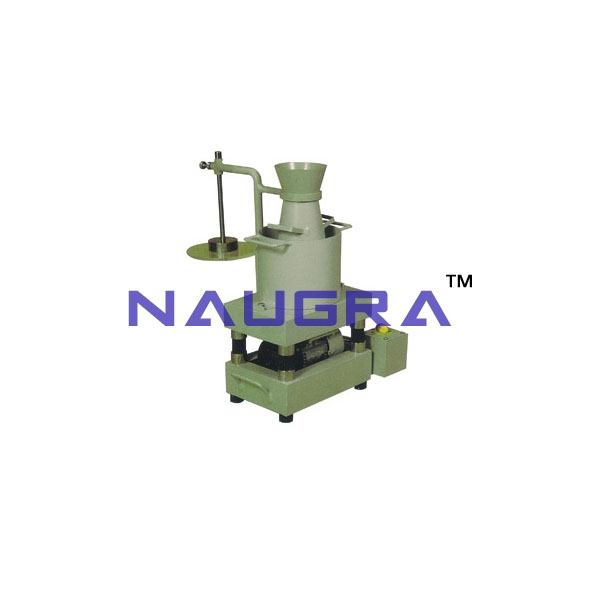

Vee Bee Consistometer
Product code: Concrete0016Buy Vee Bee Consistometer from India
Vee Bee Consistometer

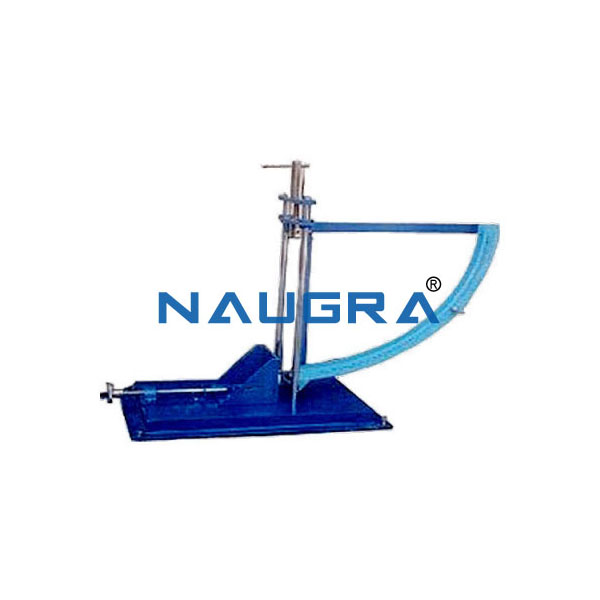

Tile Flexural Testing Machine
Product code: Concrete0019Buy Tile Flexural Testing Machine from India
Tile Flexural Testing Machine

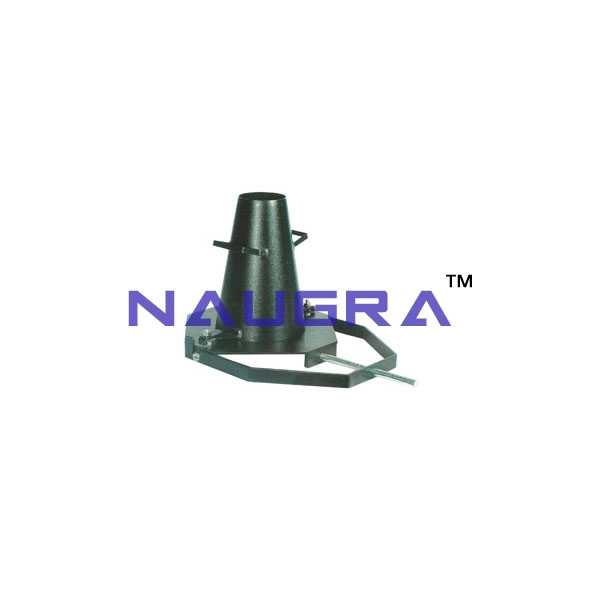

Slump Test Apparatus
Product code: Concrete0021Buy Slump Test Apparatus from India
Slump Test Apparatus

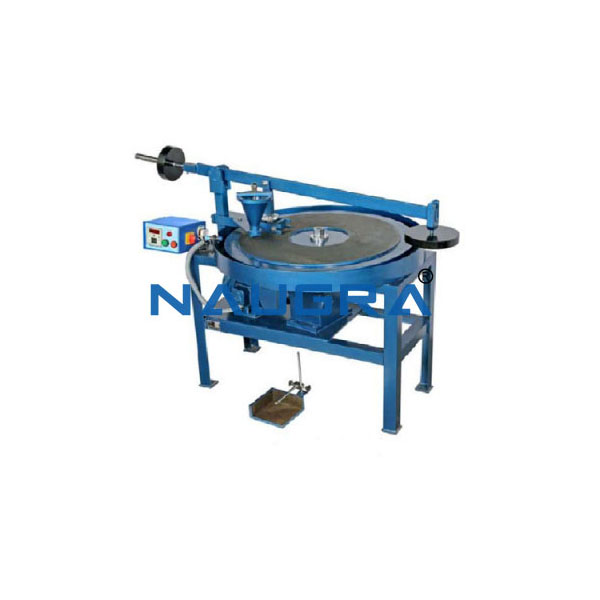

Tile Abrasion Tester
Product code: Concrete0022Buy Tile Abrasion Tester from India
Tile Abrasion Tester

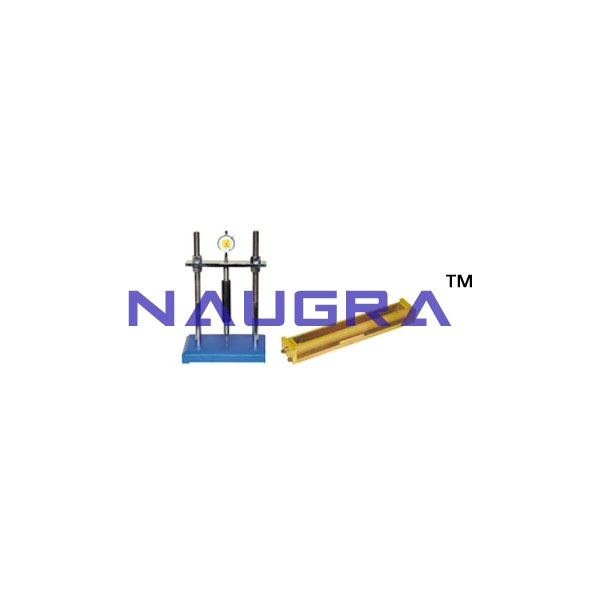

Volume Change Apparatus
Product code: Concrete0023Buy Volume Change Apparatus from India
Volume Change Apparatus

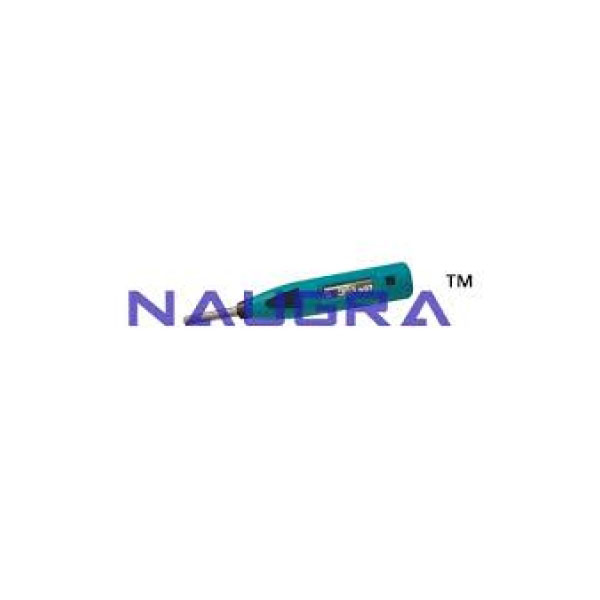

Concrete Test Hammer
Product code: Concrete0025Buy Concrete Test Hammer from India
Concrete Test Hammer
Concrete Testing Equipment range by function
| Function | Products | What to confirm |
|---|---|---|

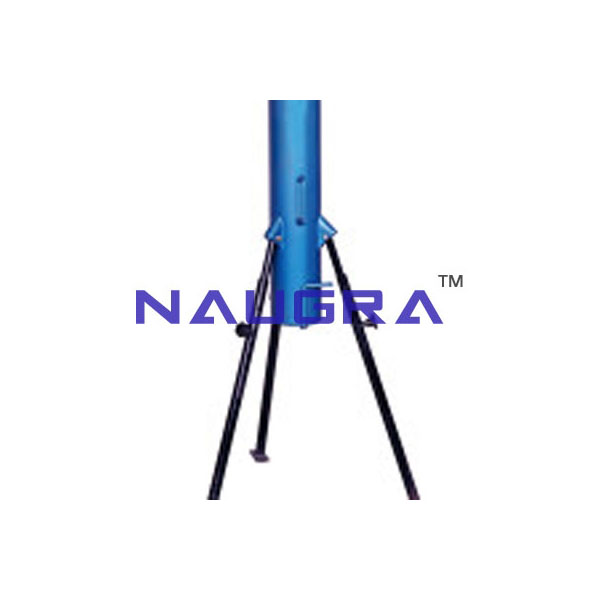

| Fresh concrete workability | Slump Test Apparatus, Vee Bee Consistometer, J Ring Apparatus, O Funnel Apparatus, Fill Box For Scc Test, Concrete Penetrometer | Cone and base dimensions, standard (IS 1199, EN 12350), funnel and ring sizes for SCC, and material and finish of each part. |

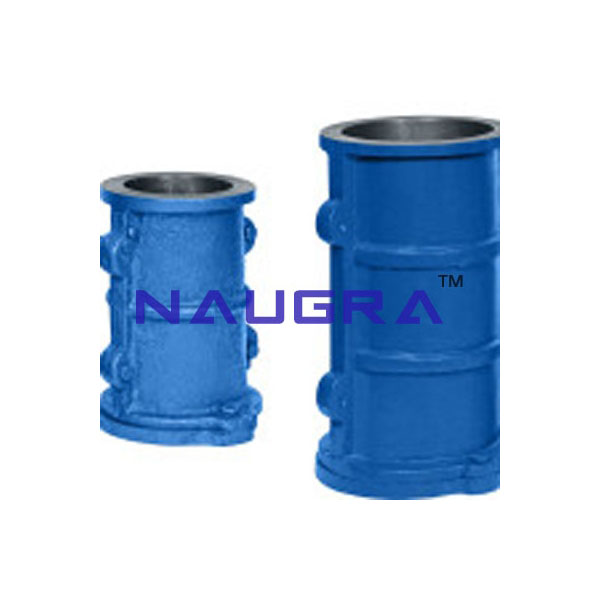

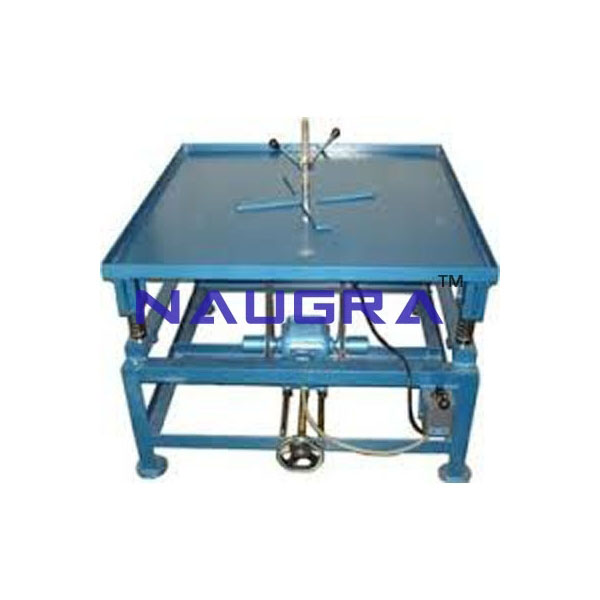

| Moulds and compaction | Cube Mould, Precision Engineered Cube Mould, Cylindrical Moulds, Vibrating Table, Concrete Vibrator, Concrete Vibrator Machine With Nozzle | Mould size (100 or 150 mm cube, 150 x 300 mm cylinder), cast iron or steel, flatness tolerance, table size and vibrator power and frequency. |

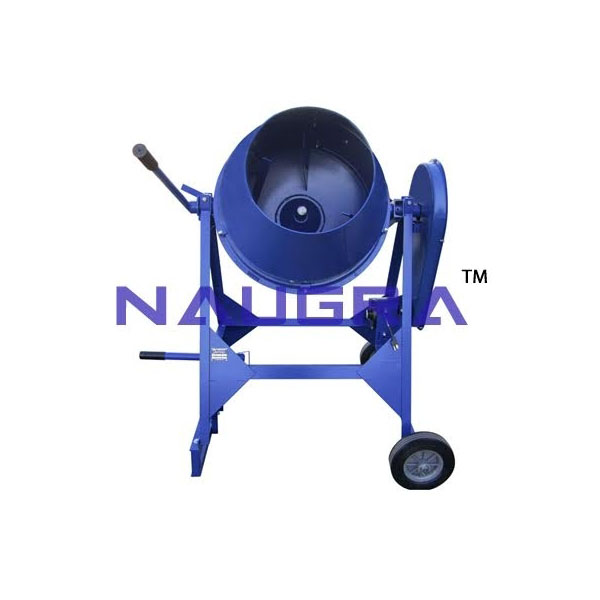

| Batching and mixing | Concrete Mixer, Weigh Batcher, Mini Mobile Batching Plant | Drum capacity, drive type, bin capacity and digital readout accuracy for the batcher, and whether the unit runs on 415 V three phase. |
| Hardened concrete properties | Concrete Permeability Apparatus, Lateral Extensometer, Extensometer, Volume Change Apparatus, Tile Flexural Testing Machine, Tile Abrasion Tester | Pressure range and cell size, extensometer gauge length and least count, and the standard used for tile tests. |
How is this different from cement testing equipment?
Concrete testing deals with the combined mix of cement, sand, aggregate and water, so the specimens are large, such as 150 mm cubes and 150 x 300 mm cylinders, and workability is a central question. Cement testing studies the binder alone on small pastes and mortars. If your lab only certifies cement supply, the cement range suffices; a site or ready-mix lab needs the concrete range.
See also: Cement Testing Lab Equipment
Full Concrete Testing Equipment product list
The complete Concrete Testing Equipment range (24 products), in alphabetical order:
Specifications and standards
What should I check before ordering cube and cylinder moulds?
Check the internal size tolerance, the flatness of the base plate and the material: cast iron or fabricated steel. IS 10086 sets limits on dimensions and parallelism, so ask for a dimension report. Confirm whether you need 100 mm or 150 mm cubes, the 150 x 300 mm cylinders, and the clamps and base plates for each.
How do I decide between slump, Vee Bee and SCC tests?
The slump cone suits mixes with 25 to 125 mm slump, and Vee Bee suits stiff mixes where slump is near zero. Self-compacting concrete needs slump flow with J-ring, O-funnel, L-box and fill box, since conventional slump is not meaningful. List which concrete grades you cast and the standard (IS 1199, EN 12350) so the right set is supplied.
Which mixer and batching equipment suits a college versus a site lab?
A small tilting or pan mixer of 40 to 100 litres is adequate for trial mixes in teaching. Site labs making 0.5 to 1 cum of trial concrete need larger drum mixers, and a weigh batcher with digital readout removes manual weighing error. Confirm bin capacity, motor power and voltage, and discharge method.
Who buys Concrete Testing Equipment?
Ready-mix plants and precast factories buy moulds, vibrators and workability tools for daily acceptance testing. Contractors on bridges and high-rise projects keep a site lab with slump, cube and permeability kit. Engineering colleges and polytechnics equip a concrete technology lab with a mixer, vibrating table and moulds, then add the SCC set for research. Orders are usually paired with a compression machine and curing tank.
Related ranges
Frequently asked questions
What slump values do the common concrete grades need?
Pumped concrete is usually specified between 75 and 125 mm, while road concrete or mass concrete may sit at 25 to 50 mm. The slump apparatus consists of a 300 mm high cone, a 16 mm tamping rod and a base plate, all of which should be in the set.
Are your cube moulds cast iron or steel?
Moulds are offered in cast iron and in fabricated steel versions, with machined faces and clamping bolts. Cast iron is heavier and more rigid, while steel moulds are lighter for site use. Specify your preference with the quote request.
What does the permeability apparatus measure?
It measures how much water passes through a concrete specimen under pressure over a set period, which indicates durability. The set contains a permeability cell, pressure lines and a reservoir, and needs a compressed air or water pressure source.
Why would a lab need a lateral extensometer?
It records the lateral strain of a cylinder under compressive load, so that Poisson's ratio can be found along with the modulus of elasticity. It is used for research labs and for acceptance of special concrete grades.
Can I get a whole concrete lab quoted together for a tender?
Send the tender specification with item numbers and the destination, and we will quote moulds, workability tools, mixers and curing equipment as one bill of quantities.
