Tensile Strength Tester
A materials lab needs a few dependable frames more than a long catalogue. Civil Mechanical India is among the material testing machines manufacturers in India making tensile, pendulum impact, torsion and spring testers, and one of the suppliers in India who offers digital readout versions for college and industrial labs.
The tensile group includes an analog machine that also performs compression, cross breaking, shear and bending with the right fixtures, and a small tensile strength tester with beam speed adjustable from 0.1 to 500 mm per minute and 0.01 mm displacement resolution for films and wire. Impact toughness is covered by pendulum machines, a digital impact tester and an Izod and Charpy machine that reads energy absorbed directly.

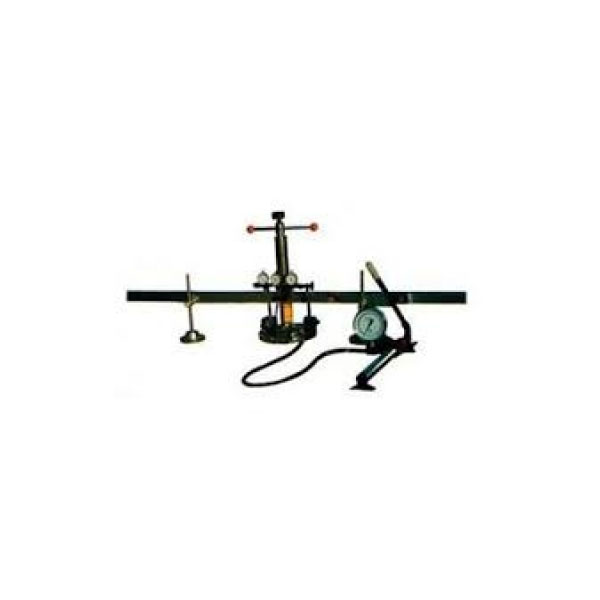

A torsion machine with claw grips holds round and flat specimens at slow speeds of 0.1 or 0.2 rpm, while the spring testing machine loads tension and compression springs to plot load against deflection. The plate load test apparatus extends the range to civil work, estimating soil bearing capacity under field loading. Together these form the strength-of-materials practical set.
Last updated: November 2026
Tensile Strength Tester
Plate Load Test Apparatus
Digital Impact Test Machine
Spring Testing Machine
Tensile Testing Machine
Pendulum Impact Testing Machine
Impact Testing Machine (Izod & Charpy)
Analog Tensile Testing
Torsion Testing Machine
| Function | Products | What to confirm |
|---|---|---|
| Tensile and strength testing | Tensile Testing Machine, Analog Tensile Testing, Tensile Strength Tester | Maximum load, travel and speed range, grip types for wire, strip and bar, digital or analog display and the standard followed. |
| Impact toughness | Pendulum Impact Testing Machine, Digital Impact Test Machine, Impact Testing Machine (Izod & Charpy) | Pendulum energy in joules, striker type, specimen notch and size per ASTM E23 or IS 1757, and direct indication or digital readout. |
| Torsion and spring tests | Torsion Testing Machine, Spring Testing Machine | Maximum torque, specimen size range, speed in rpm, spring load range and deflection travel, and whether results can be printed or logged. |
| Field bearing capacity | Plate Load Test Apparatus | Reaction arrangement, plate sizes, jack capacity and dial gauge set for field soil loading tests. |
A universal testing machine is a single servo or hydraulic frame that performs tension, compression and bending using exchangeable grips and extensometers, with computer control and stress-strain curves. The machines on this page are mostly dedicated instruments: one frame per test, simpler controls and lower cost. Colleges often start here, then add a universal machine for research or accredited work.
See also: Universal Testing Machines
The complete Material Testing Machines range (9 products), in alphabetical order:
Confirm maximum load, crosshead travel, speed range and the grips needed for your specimens, such as wire, strip, round bar or film. Ask whether the readout is analog, digital or software-based, and whether the unit gives stress-strain curves. Specify the standard (IS 1608, ASTM E8) so specimen dimensions and extensometer needs are clear.
Choose pendulum energy to suit your specimens: 150 J is typical for steels and 300 J for tougher grades. Check that the striker and anvil match Charpy (V-notch) and Izod needs, and ask about the notch broaching tool, safety guard and calibration to IS 1757 or ASTM E23. Digital machines show absorbed energy without a dial reading.
For torsion, give the maximum torque, the specimen diameter range and the gauge length. For springs, give maximum compressive and tensile load, free length range and the deflection scale resolution. If students will plot load-deflection curves, a digital deflection display saves time over dial reading.
Mechanical, civil and metallurgy departments in engineering colleges and polytechnics buy these machines for strength of materials and workshop technology laboratories. Foundries, fastener manufacturers, spring makers and plastic converters use them for incoming and batch checks. ITIs choose the simpler analog tensile and hardness items, and consultants working on soil use the plate load apparatus for foundation design data.
In a Charpy test the notched bar is supported at both ends and struck behind the notch. In an Izod test the bar is clamped at one end like a cantilever and struck above the notch. The same pendulum machine can be fitted for both.
Elongation is read through crosshead displacement or an extensometer. Displacement resolution on the smaller tester is 0.01 mm, while true strain on metals needs a clip-on extensometer. Mention if you need gauge length measurement.
With platens and a bending fixture it performs compression, cross breaking, shear and linear bonding tests, which makes it useful as a general-purpose teaching frame.
Check pendulum friction loss and the zero reading before every session, and arrange a full verification with reference specimens at least once a year, or after any relocation of the machine.
Share the tender technical specification and the destination voltage, and we will return a quotation with drawings, a clause-wise compliance statement and packing details suited to heavy frames.
Civil Mechanical India is an established manufacturer and supplier for tender requirements from India, handling civil laboratory and industrial testing tenders and bulk and OEM orders for mechanical engineering and testing laboratory equipment. On receipt of your tender specifications, we will submit a complete quotation for Material Testing Machines.
Send us your equipment list or tender specification. We quote against IS, BS, EN, ASTM and AASHTO standards and ship to 90+ countries.
