Portable Rockwell Hardness Tester
Hardness readings guide heat treatment, incoming steel checks and wear studies, so the tester has to be stable and its scale correct. Civil Mechanical India is among the Rockwell hardness testing machine manufacturers in India, and the suppliers in India of bench, superficial and portable units in a single group.
A conventional Rockwell tester applies a 10 kgf preload followed by a main load, typically 60, 100 or 150 kgf, and reads the depth difference, so one machine gives the HRA, HRB and HRC scales. The motorised digital model removes dial reading and applies loads automatically for production checks. The superficial tester uses light loads of 15, 30 and 45 kgf on the N and T scales, which suits thin sheet, case hardened parts and coatings.
Portable Rockwell testers allow measurement on parts too large to put on a bench, such as rolls, dies and welded structures. The combined Brinell, Vickers and Rockwell unit adds an optical measuring system for indentation diameters and diagonals and suits metallurgy labs that compare scales.
Last updated: November 2026
Portable Rockwell Hardness Tester

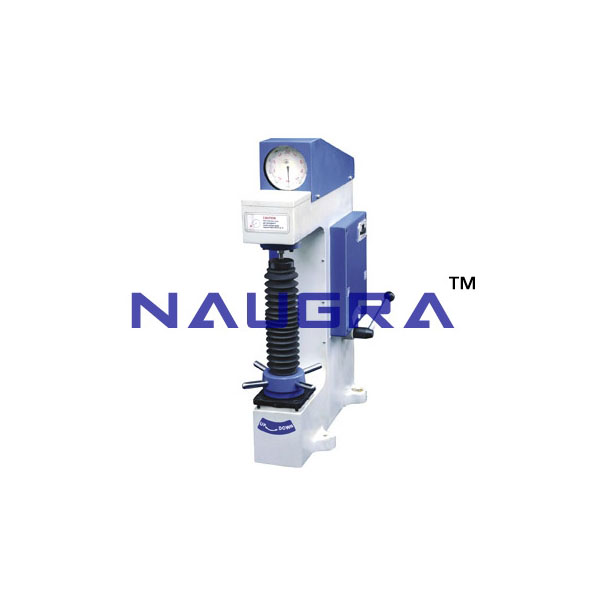

Brinell, Vickers and Rockwell Hardness Testing Unit
Rockwell Hardness Tester
Rockwell Hardness Tester
Rockwell Hardness Tester
Portable Hardness Tester

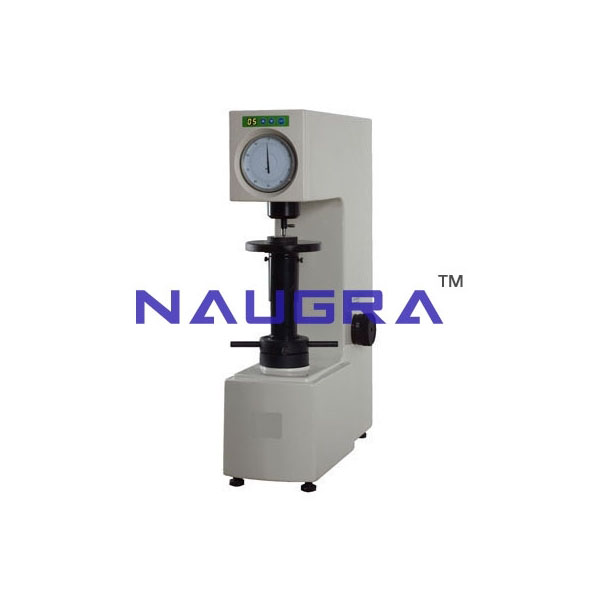

A bench Rockwell tester with digital readout of hardness in HRA, HRB and HRC scales. Used for quality control of steels and metals in workshops and labs.
A Rockwell machine with light loads for measuring thin sheets, case hardened parts and coatings in the superficial scales 15N, 30N and 45N. Used in metallurgy labs.
| Function | Products | What to confirm |
|---|---|---|
| Bench Rockwell testing | Rockwell Hardness Tester, Motorised Digital Rockwell Hardness Tester | Scales offered (HRA, HRB, HRC), major load steps, test height and throat depth, digital or dial readout and indenter set included. |
| Thin sections and coatings | Superficial Rockwell Hardness Tester | Superficial loads (15, 30, 45 kgf), scale range (N and T), minimum specimen thickness and anvil options. |
| Portable testing | Portable Rockwell Hardness Tester, Portable Hardness Tester | Weight, testing range, clamping method for large parts, power needs and the accuracy against test blocks. |
| Multi-method hardness | Brinell, Vickers and Rockwell Hardness Testing Unit | Test loads for each method, optical measuring system for Brinell and Vickers, and size of work the stage can hold. |
Material testing machines measure bulk behaviour: tensile strength, impact energy, torsion and spring rate, and the specimen is usually broken. A hardness tester leaves only a small indentation and measures resistance to local deformation, often on finished parts. A metallurgy or QC lab will normally have both, since hardness gives a quick check and tensile testing confirms strength.
See also: Universal Testing Machines
The complete Rockwell Hardness Testing Machine range (6 products), in alphabetical order:
Confirm the scales supplied (HRA, HRB, HRC and superficial N or T), the preload and major load steps, the maximum test height and throat depth for your parts, and the readout type. Ask for the test blocks, diamond cone and ball indenters and an anvil set, and the calibration to IS 1586 or ASTM E18.
Use it when the part is thin, case hardened or coated, because regular major loads would punch through or read the substrate. The 15N, 30N and 45N scales use a diamond indenter on hardened surfaces. Check the minimum specimen thickness the manufacturer allows for each load.
Portable testers are excellent for large or installed parts and give good comparative readings. For certificates, check the repeatability against standard test blocks and clamp the part rigidly, since movement changes depth readings. A bench unit remains the reference where parts can be brought to the lab.
Heat treatment shops, tool rooms, forging and fastener units and steel stockists buy Rockwell testers for batch checking. Mechanical engineering and metallurgy departments use them for material science practicals, and ITIs and polytechnics keep a bench model in the workshop. Plant maintenance teams use the portable models on rolls and large shafts, and labs that want several scales add the Brinell and Vickers unit.
They are Rockwell scales using different indenters and loads. HRB uses a 1/16 inch steel ball with 100 kgf for soft steels and copper alloys, HRC uses a diamond cone with 150 kgf for hardened steels, and HRA uses the diamond with 60 kgf for very hard or thin materials.
It adds a load cell or sensor, motorised load application and a display that removes operator error. It saves time on production batches, though a dial model is adequate for teaching.
Normally one block each in the low, medium and high ranges of the scales you use, such as around 30, 60 and 90 HRC. They are used to verify the machine daily, so keep spares.
It covers the three methods in one frame, so it is useful for labs and colleges with limited space, though high-volume production checking is faster on a dedicated Rockwell unit.
Give the destination country and mains voltage, and we will quote with packing suited to the machine's precision load mechanism, plus the spare indenters and test blocks.
Civil Mechanical India is one of the leading manufacturers and suppliers in India for tender requirements, covering civil laboratory and industrial testing tenders and the bulk and OEM supply of mechanical engineering and testing laboratory equipment. Kindly share your tender specifications and we shall submit a complete quotation for Rockwell Hardness Testing Machine.
Send us your equipment list or tender specification. We quote against IS, BS, EN, ASTM and AASHTO standards and ship to 90+ countries.
