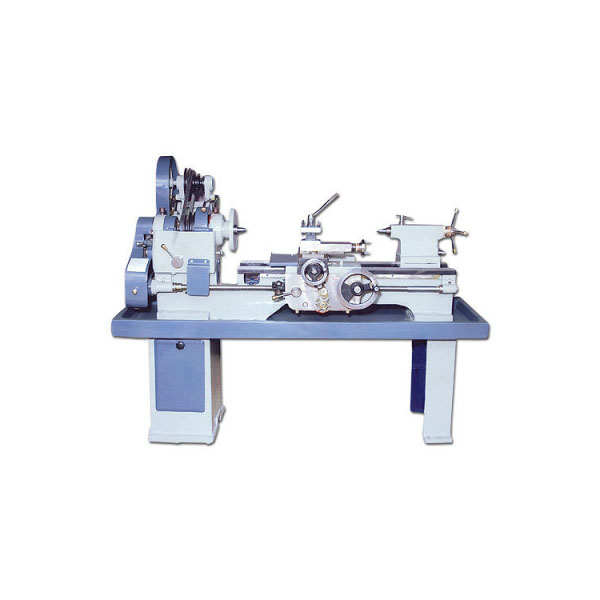

Light Duty Upper Motor Lathe

Light Duty Upper Motor Lathe

Specification

Light Duty Upper Motor Lathe

HARDENED BED UPPER MOTOR CHANGE GEAR TYPE OR NORTON GEAR TYPE

STANDARD ACCESSORIES :
Two dead Centres, Centre Sleeves, Square Tool Post, Tool Post Key, Gear Set for MM & Inch Thread, Carrier Plate, Motor Pulley, Thread Chart, Suitable Electric Motor, Dog Chuck with Flangue, R/F Switch, V Belt.

OPTIONAL ACCESSORIES :
Quick change Norton Gear Box, Rear Tool Post, Taper Turning attachment, Coolant unit with Assembly, Machine Lamp, 3 Jaw True Chuck, Chuck Flange, Face Plate, Steady Rest & Follow Rest, Revolving Centre

Size	3'.6" / 4'.6"
	Inch.
Length of Bed	42/54"
Width of Bed	9-3/8"
Height of Centre	6-1/2" / 8"
Admit between Centres	15"/27"
Dia. of Hole through Spindle	1-5/8" / 2"
Swing over Bed (Max.)	13"/14"
Swing in Gap (Max.)	20"/24"
Swing over cross slide	8"/10"
Tail Stock Spindle Travel	5"
Spindle Speeds No.	8
Range	25-796 RPM
Spindle Morse Taper	MT-4
Lead Screw Dia.	1" x 4 T. P. I.
Threading Range	0.5 to 40 T. P. I. & 0.5 to 8 mm pitch
or
Dia Threading Range	1" x 6T. P. I. 1 to 45 T. P. I. & 0.5 to 6 mm pitch
Required H.P.	1 H.P
