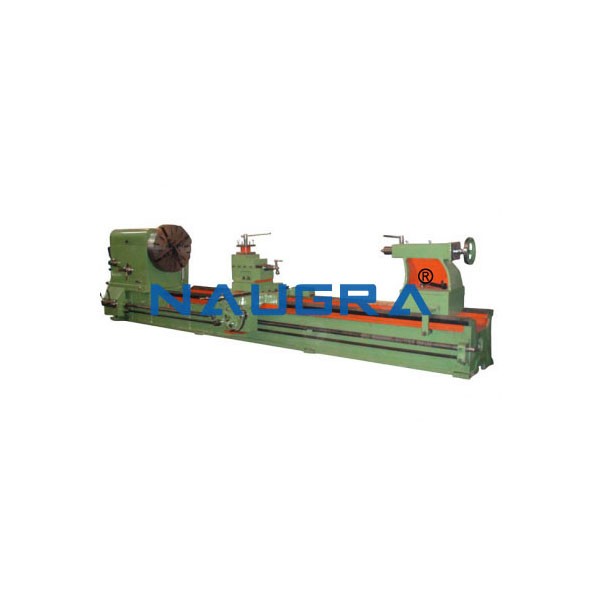

Planner Bed Change Gear Heavy Duty Lathe Machine Model Roll Master
| Product code | Lathe0002 |
| Categories | Lathe Machines |
| Standards | Manufactured to IS / BS / EN / ASTM / AASHTO as applicable |
| Supply | India and export — 90+ countries |
- Description
Specification
Planner Bed Change Gear Heavy Duty Lathe Machine Model Roll Master
DESIGN
& WORKMANSHIP : lathe machines have been designed to cater need of sustained accuracy
and superb finishing. lathes are guaranteed for their original design,
and are tested to the graded limits with specially imported precision tools.
BED : The
bed being the foundation of the lathes is carefully designed and is of high grade cast iron. It
has cross-ribs to support its walls and three inverted 'VEES' assembled with a removable
gap for large swing.
HEAD STOCK : The head-stock is of top quality castings providing support to the spindle bearings. The bearings are of the following three
types:
(a)
Parallel Brass with thrust Bearing, (b) Conical Brass, (c) Taper Roller Bearing. The inain spindle is
the best steel with a finish to give accurate results. Head Stock gears are of "Clutch
system" of high production
in small machines & "Kirloskar system" in large machines.
SADDLE : The
'V ways running on the bed and the slides are most accurately hand scrapped
and aligned accurately with the bed and the headstock. The saddle is fitted with 'Hand' and
'Automatic' transfers along
the bed with steel rack and Pinion.
It
is assembled with cross and upper slide graduated to give desired angles.
TOOL
POST : The Toll-Post is made out of one piece steel block and can hold four
different tolls at a time and can be swivelled to any desired angle.
APRON : The apron gives movement to the saddle for screw cutting sliding and surfacing by means of
enclosed gears and half nut. All gears are of steel and are well tempered.
TAIL
STOCK : The tailstock is designed to give maximum strength bolt operation. It has long bearing
within the barrel and ensures true alignment.
THREE
SPEED GEAR BOX : The Three speed gear box is provided with the lathe to obtain coarse, medium and fine cutting
ranges, both long and cross on the feed
bar through gears. The lead screw with accurate threads is to be used only
for thread cutting & can be engaged
or disengaged with a handle provided on the gear box while the other handle is for obtaining the desired
three speeds.
STANDARD ACCESSORIES :
|
|
| EXTRA ACCESSORIES : |
- True Chuck
- Taper Turning Attachment
- Coolant Pump Tray & Fittings
- Revolving Centre
- Heavy Duty Grinding Attachment
- Heavy Duty Roller Type Steady Rest for Sugar Mills Rolls
