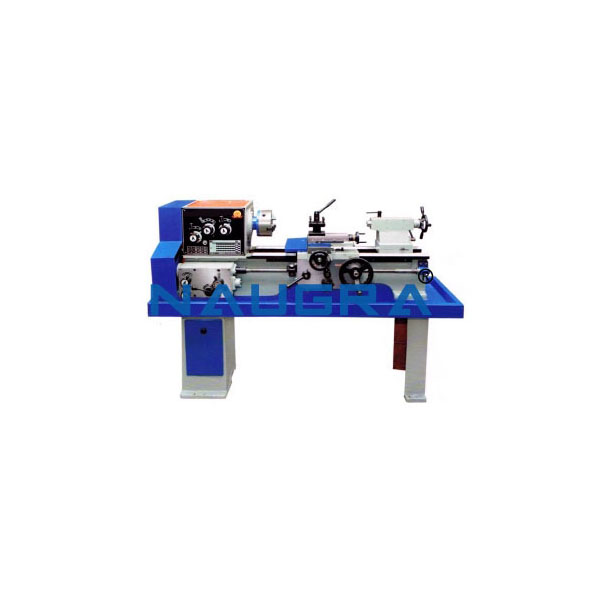

All Geared Capsten Lathe Machine 42-50-60 MM
| Product code | Lathe0001 |
| Categories | Lathe Machines |
| Standards | Manufactured to IS / BS / EN / ASTM / AASHTO as applicable |
| Supply | India and export — 90+ countries |
- Description
All Geared Capsten Lathe Machine 42-50-60 MM
Specification
All Geared Capsten Lathe Machine 42-50-60 MM
| Collet capacity | 32 (1.1/4') | |
| Hole through spindle | 32 | |
| Height of centres | 135 | |
| Maximum turning dia over Truco slide | 120 | |
| Transversal stroke of Truco cutting of slide |
173 | |
| Useful stroke of turret carriage | 125 | |
| Number of spindle speed | 6 | |
| Spindle speed | 300 to 1400 RPM | |
| Spindle speed (with gear box) | 50 to 3000 RPM | |
| Bore of
hexagonal turret (Norm CM) |
25.4 | |
| Average distance between spindle & turret carriage |
220 | |
| Width of bed | 150 | |
| Cross section of tool to use | 10 | |
| Average Horse-Power of motor | 2 H.P.double speed | |
| Floor space
required without bar-feed device |
42' x 24' | |
| No. of feeds | 3 | |
| Net weight approximate (Kgs) | 600 | |
| Gross weight approximate (Kgs) | 800 | |
