Code: Arbour Press0002

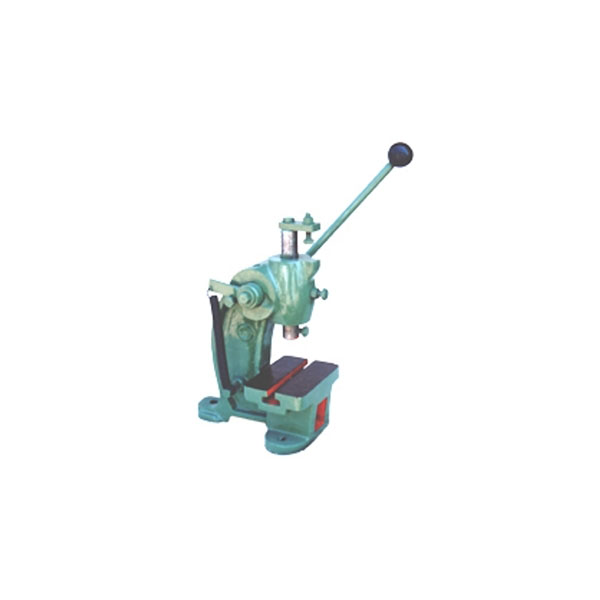

Spring Controlled Arbour Press.
| Max Pressure | ton | 1/4 | 1/2 | 3/4 | 1 |
| exerted | kg | 250 | 500 | 750 | 1000 |
| Max Distance from | mm | 50 | 70 | 85 | 120 |
| Center to back | inch | 2 | 2.2/4 | 3.3/8 | 4.3/4 |
| Min height | mm | 38 | 82 | 158 | 215 |
| from base to guide | inch | 1.1/2 | 3.1/4 | 6.1/4 | 8.1/2 |
| Max height | mm | 70 | 140 | 260 | 315 |
| from base to guide | inch | 2.3/4 | 5.1/2 | 10.1/4 | 12.1/2 |
| Size of Rack | mm | 28 | 35 | 38 | 48 |
| inch | 1.1/8 | 1.3/8 | 1.1/2 | 1.7/8 | |
| Size of | mm | 125x95 | 175x140 | 232x168 | 305x248 |
| rectangular table | inch | 5x3.3/4 | 7x5.1/4 | 9.1/8x6.5/8 | 12x9.3/4 |
| Size of T slott | mm | 12 | 12 | 12 | 12 |
| on table | inch | 1/2 | 1/2 | 1/2 | 1/2 |
| Hole in rack | mm | 10 | 12 | 15 | 19 |
| inch | 3/8 | 1/2 | 5/8 | 3/4 | |
| Length of lever | mm | 225 | 300 | 400 | 500 |
| (Handle) | inch | 9 | 12 | 16 | 20 |
