Wind Power Plant

Wind Power Plant

Specification

Wind Power Plant

Specification Of Wind Power Plant

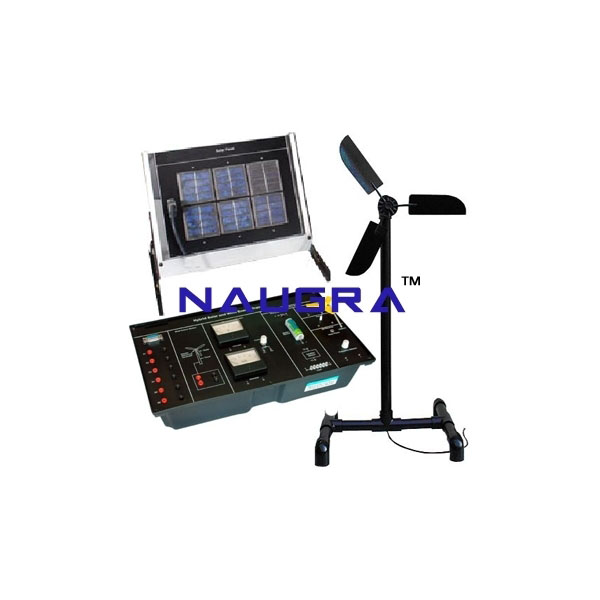

Wind power plant for converting kinetic wind energy into electrical energy

• Movable wind power plant that can be set up outside
• Four base supports for stabilisation
• Stand-alone operation with connection
• Generator for converting kinetic energy into electrical energy
• Accumulator for storing the electrical energy
• Measurement of wind velocity
• Measurement of the rotational speed of the rotor
• Display of the measured data on the control unit

Technical Data

Rotor

• Diameter: 1200mm
• Hub height above ground level: approx. 5000mm

Generator

• Max. output: 350W
• Voltage: 12VDC
• Max. charging current: 30A

Accumulator

• Voltage: 12VDC
• Capacity: 65Ah

Measuring ranges

• Wind velocity: 0,7...50m/s
• Speed: 0...3000min-1
