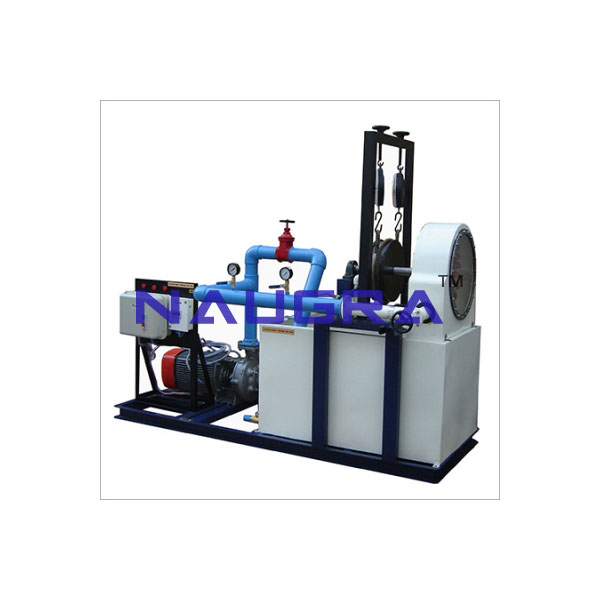

Impulse Turbine

Specification: Impulse Turbine

• Investigation of a compressed air driven axial impulse turbine
• Transparent front panel for observing the operating area
• Distributor with 4 nozzles
• Selectable number of nozzles
• Applying a load to the turbine by using the band brake
• Setting the primary pressure with the pressure reducing valve
• Valve and flow meter for setting the flow rate
• Solenoid valve as a safety device to prevent over speed
• Determination of the torque on the turbine shaft using a force sensor
• Measurement of the turbine speed with an optical speed sensor
• Manometer for displaying pressures on the inlet and outlet side
• Digital display of speed, torque and temperature

Technical Data

• Axial impulse turbine
• Max. power: 50W at 15000min-1

Rotor

• Diameter: 55mm
• Number of blades: 28

Stator

• 4 nozzles, number can be selected
• Entry and exit angle: 20°

Measuring ranges

• Temperature: -20...1100°C
• Speed: 0...40000min-1
• Torque: 0...10Ncm
• Flow rate: 25...315L/min
• Inlet pressure: 0...2,5bar
• Outlet pressure: 0...0,1bar
• Primary pressure: 0...10bar
