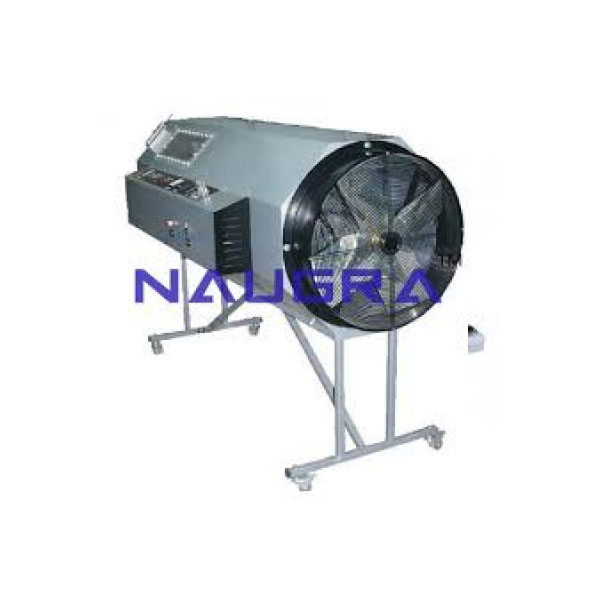

Energy Conversion in a Wind Power Plant

Energy Conversion in a Wind Power Plant

Specification

Energy Conversion in a Wind Power Plant

Specification Of Energy Conversion in a Wind Power Plan

• Converting kinetic wind energy into electrical energy
• Laboratory-scale wind power plant, stand-alone operation
• Axial fan with continuously variable speed (wind velocity)
• Flow straightener for consistent wind conditions
• Generator for converting the kinetic energy into electrical energy
• Accumulator for storing the electrical energy
• Two bulbs as electrical load (consumers)
• Measurement of wind velocity in front of and behind the rotor
• Measurement of rotational speed of the rotor
• Measurement of current and voltage
• Digital displays for the measured values



Technical Data

Axial fan

• Max. volumetric flow rate: 5m³/s
• Max. power: 1,5kW

Rotor

• Diameter: 510mm

Generator

• Max. output: 60W
• Voltage: 12VDC
• Max. charging current: 5A

Accumulator

• Voltage: 12VDC
• Capacity: 8Ah

Electrical load (bulbs)

• Voltage: 12VDC
• Power: 55W each

Measuring ranges

• Wind velocity: 0,3...50m/s
• Speed: 0...3000min-1
• Voltage: 0...20VDC
• Current: 0...35A
