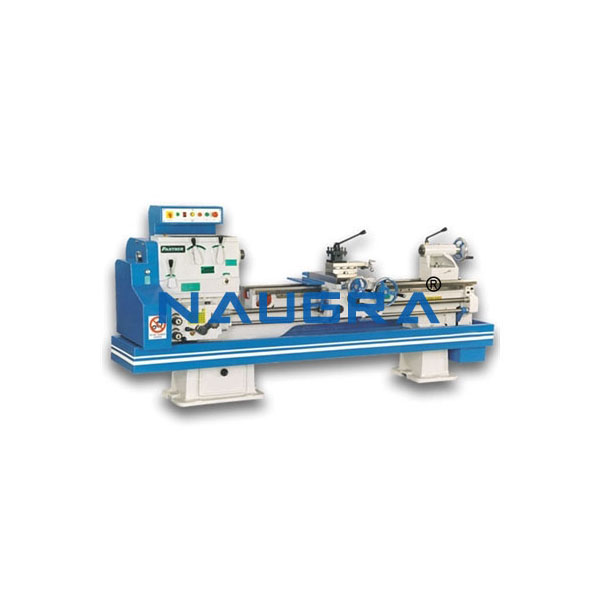

Model

Product code	GLM0008
Categories	All Geared Lathe Machine Manufacturer Suppliers
Standards	Manufactured to IS / BS / EN / ASTM / AASHTO as applicable
Supply	India and export — 90+ countries

Model

Specification

Type of bed	Flat & V (Gap Bed)
Width of bed	325 mm
Height of center	254 mm / 305 mm
Swing over bed	484 mm / 595 mm
Swing over saddle	360 mm / 460 mm
Swing over cross slide	292 mm / 395 mm
Swing in gap	800 mm / 900 mm
Length of gap in front of face plate	200 mm
No. of spindle speed	8
Spindle speed range	30 – 1235 rpm
Spindle bore	52 mm
Spindle nose	Threaded / A2 Size 6
No of British threads	40
Range of British threads	2 to 60 TPI
No. of metric threads	20
Range of metric threads	0.5 to 15 mm pitch
No. of DP threads	40
Range of DP threads	4 to 120 TPI
No. of Module threads	20
Range of module threads	0.25 to 7.5 mm
No. of feeds	40
Range of longitudinal feed	0.066 to 2.0 mm / rev
Range of transverse feed	0.016 to 0.48 mm / rev
Lead screw diameter / pitch	38.1 mm / 4 TPI
Tail stock spindle diameter	63.5 mm
Taper in tail stock quill	MT – 4
Cross slide travel	265 mm / 315 mm
Compound slide travel	140 mm
Tool post square	150 x 150 mm
Tool shank size	25 x 25 mm
