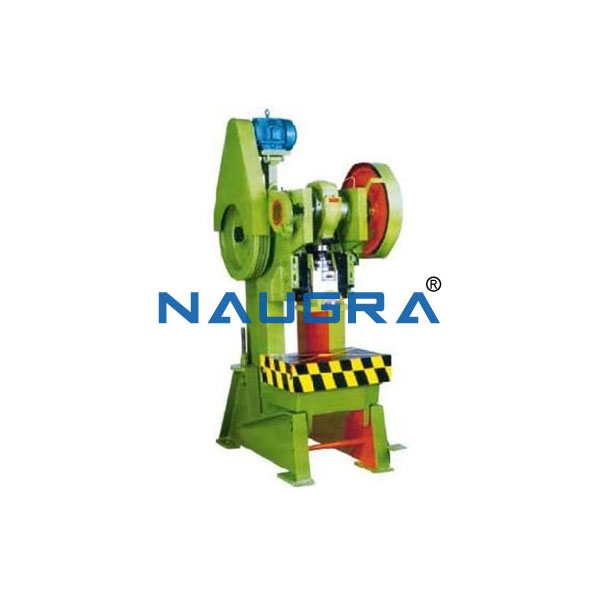

C Type Power Press.

Introduction of ‘C’ Type Power Press

C Type Power Press Machine is utilized for changing the shape of a workpiece into a desired form or size by pressure application. The machinery is fabricated with modern techniques along with excellent quality components.



The machinery is constructed of a frame with suitable cross ribbings. The adjustment of the frame takes place before the welding of steel plates. Giving continuous strokes for the massive production, the clutch is either a pin or rolling key type. The perfectly positioned heavy duty ironed Ram and Table obtain pressings. An adequate energy is released and stored for the pressing operation by a suitably sized flywheel.



The manufacturer in Ludhiana produces Power Press machines with high quality and technical specialization. The exporter, supplier, and manufacturing firm provides a wide range of Power press machinery that includes C Type Power Press Machine, Pillar Type Power Press, Hydraulic Press Machine, Hydraulic Iron Workers.


What are the features of ‘C’ Type Power Press?

Its advanced PLC (programmable logic controller) control makes the C Type Power Press Machine give a highly efficient performance. The machinery is fabricated with Innovative safety dual valve and Vibration free wide body frame which makes the machine perform its specialized services for a longer period of time. The craft shaft made of steel is located vertically with a compact structure that undergoes high quenching for a high- caliber operation. Due to the hard steel clutch, the power press machine functions excellently and requires less maintenance.
Accessories of ‘C’ Type Power Press

    Knock out system
    Tow hand operated clutch
    Slide adjusting spanner
    Oil cups for lubrication point
    Electric motor, starter, and V- belts
    Motor pulley
    Fly wheel
    Gear guard
    Automatic lubrication pump
    Additional base plate
    Single and continuous stroke
    Disposable type

Crank Shaft Dia. 51 60 76 83 105 121 134 152 158 165
Stroke Adj. 6-25 6-25 13-51 13-63 13-76 115 127 152 158 165
Hole in Ram 25 25 32 38 38 45 51 57 63 63
Hole in Bed 63 76 83 89 127 127 178 191 216 229
Dist. Bed to Ram 153 205 280 292 406 483 483 495 519 544
Stroke Per Minute 85 75 60 60 55 50 45 40 30 30
LxWof Bed 305x178 381x255 508 x 305 558 x 356 750 x 520 863x596 914x635 965 x 685 1016 x 736 1067 x 778
Fly Wheel Dia. 405 435 550 660 810 910 1016 1118 1150 1320
H.P. Require 0.5 1 2 3 5 7.5 10 15 20 25
