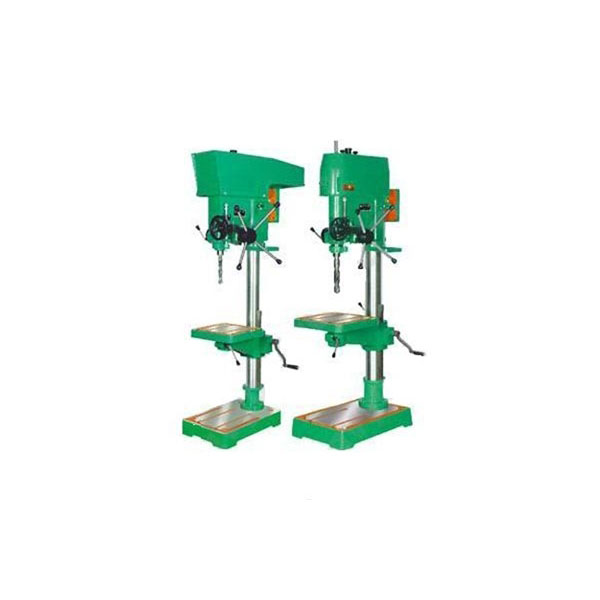

38mm Pillar
| Product code | DMS0005 |
| Categories | All Drill Machine Suppliers |
| Standards | Manufactured to IS / BS / EN / ASTM / AASHTO as applicable |
| Supply | India and export — 90+ countries |
- Description
38mm Pillar
Specification
| Drilling Capacity (mm) | 38 | 38 |
| Pillar Dia. (mm) | 106 | 121 |
| Spindle Nose TO table distance(mm) | 625 | 830 |
| Spindle Nose TO base distance (mm) | 1000 | 1000 |
| Distance from Spindle center to pillar Face (mm) | 285 | 320 |
| Tapper in Spindle | MT.4 | MT.4 |
| Rang of Speed(RPM) | 70x2000 | 70x2000 |
| Table Size(mm) | 415x415 | 400x400 |
| Base Size (mm) | 400x350 | 415x350 |
| Over all Base Size (mm) | 650X440 | 720X470 |
| Spindle Travel (mm) | 225 | 240 |
| Pillar length (mm) | 1425 | 1450 |
| Overall height with Pulley Guard(mm) | 1750 | 1750 |
| V.Belt Section | B.58 | B.58” |
| Weight (Approx) (Kgs.) | 300 | 325 |
| Spindle Center To Pillar Surface (mm) | 285 | 320 |
| No. Of Spindle Speed | 8 | 8 |
| Electric Motor (H.P.) | 1.5 | 1.5 |
38mm Pillar suppliers in India
