32mm SE 4 SE 5 Pillar
| Product code | DMS0006 |
| Categories | All Drill Machine Suppliers |
| Standards | Manufactured to IS / BS / EN / ASTM / AASHTO as applicable |
| Supply | India and export — 90+ countries |
- Description

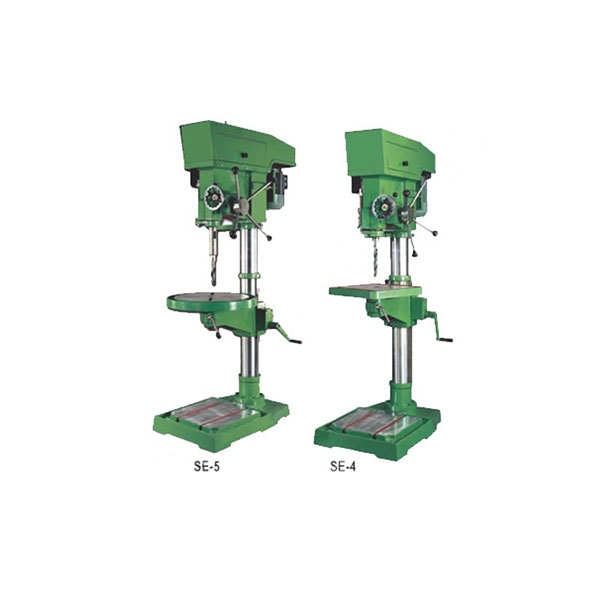

32mm SE 4 SE 5 Pillar
Specification
| Drilling Capacity (mm) | 32 | 32 | 40 |
| Column Diameter (mm) | 114 | 114 | 114 |
| Center of Spindle To Column (mm) | 280 | 280 | 280 |
| Distance Spindle to table (mm) | 625 | 625 | 500 |
| Distance Spindle to base (mm) | 1045 | 1045 | 930 |
| Spindle Nose | MT-3 | MT-3 | MT-3 |
| Spindle Travel(mm) | 170 | 170 | 170 |
| Range of Spindle Speed (RPM) | 75/2070 | 75/2070 | 75/2070 |
| No. of Spindle Speed | 8 | 8 | 8 |
| Range of Power Feed | Manual | Auto Feed | Manual |
| Table Size (mm) | 390 x 390 | 390 x 390 | 520 (Dia) |
| Base Size (Machine area) (mm) | 390 x 390 | 390 x 390 | 390 x 390 |
| V-Belt Section (mm) | B-58 | B-58 | B-58 |
| Overall Height With Guard (mm) | 1745 | 1745 | 1745 |
| Main Electrical Motor (H.P) | 1.5 | 1.5 | 1.5 |
| Wooden Case L x W x H (mm) | 1050 X 600 X 1900 | 1050 X 600 X 1900 | 1050 X 600 X 1900 |
