Universal Testing Machine

Universal Testing Machine

Specification

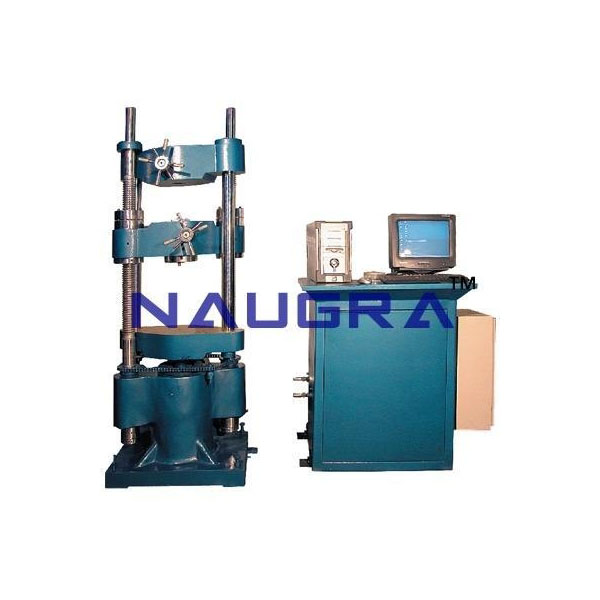

Universal Testing Machine Universal Testing Machine from Civil Mechanical Laboratory India

• The Universal Testing Machine suitable for experiments : Tensile, Compression, Bending and Shear testing for all kinds of metal materials and non metal materials such as plastic, Universal Testing Machine for Civil Engineering from Laboratory Equipment Manufacturers India - concrete, cement and so on.
• Frame space : Dual.
• Change between tension and compression test : Quick without removing heavy fixtures.

Technical Specifications :

• Maximum Testing Power : 1000 KN
• Software : PC controlled electro – hydraulic servo UTM software
• Test power precision : ±1%
• Test power distance : 2% – 100% FS
• Displacement measurement : 0.01 mm
• Max. lift speed of testing board : 70 mm/min
• Piston travel : 150 mm
• Maximum tension distance : 700 mm
• Maximum compression distance : 0 – 470 mm
• Clamp diameter of round specimen : 20 – 60 mm
• Clamp thickness of flat specimen : 0 – 40 mm
• Clamp width of flat specimen : 80 mm
• Size of compression plate : 205 x 205 mm
• Bending stick distance : 500 mm
• Bending stick width : 140 mm
• Bending degree allowance : 150 mm
• Oil pump power : 1.5 KW
• Low grip motor power : 1.1 KW
• Distortion testing device : Staff
• Overload protection : 2 – 5%
