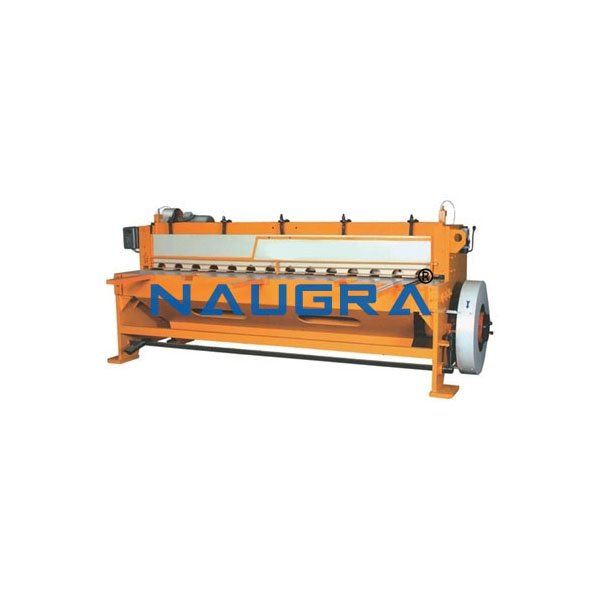

Under Crank Mechanical Shearing Machine

Under Crank Mechanical Shearing Machine

Specification

Structure: The machinery is constructed with a rigid steel frame with an interlocked design, created to avoid weak sections. In order to ensure proper clean cut and clearance, ram is guided throughout the length with ground guide ways.
    The hold down system of under crank shearing machine is loaded with springs and holds sheets to avoid slippery and bowing result in a clean square cut. The finger guard is fitted in front of hold down for the safety of the operator.
    The four edge, single and segmentally high carbon, chromium steel blades are suitable for cutting and longer use. The bearing parts and guide surfaces of the machine are lubricated by the centralized hand operated lubrication system.
    Mechanical Back Gauge gives readings of the distance between back gauge and shear through a scale in order to avoid errors and maintenance of encountered electronic equipment.
    The Accessories list of Mechanical Under Crank Shearing Machine includes Electrical System consisting of motor & Control Panel of Starter, Gear and wheel guard, V-Belts, Hand operated back gauge, Manual Lubrication System, T-slot front gauge, Front scale gauge, instruction Manual, Hydraulic hold-down system, Automatic lubrication system, Ball roller or Ball Transfer, Foundation bolts, and Extension squaring arm.

cap	Blade	Blade	Stroke per	Hold Down	Machine	Motor
Thickness	Minute	Knife edge	Lx W x H
1270x2	50	12	60	20	2150x1450x1275	2
1525x2	50	12	60	20	2450x1450x1275	3
2030x2	50	12	60	20	2900x1450x1375	5
2540x2	50	12	50	20	3450x1450x1375	5
3125x2	50	12	50	20	4150x1525x1400	7.5
1270x4	63	18	60	25	2300x1525x1320	5
1525x4	63	18	60	25	2500x1525x1320	5
2030x4	63	18	50	25	3000x1700x1425	7.5
2540x4	63	18	50	25	3500x1700x1425	7.5
3125x4	63	18	50	25	4200x1850x1500	10
