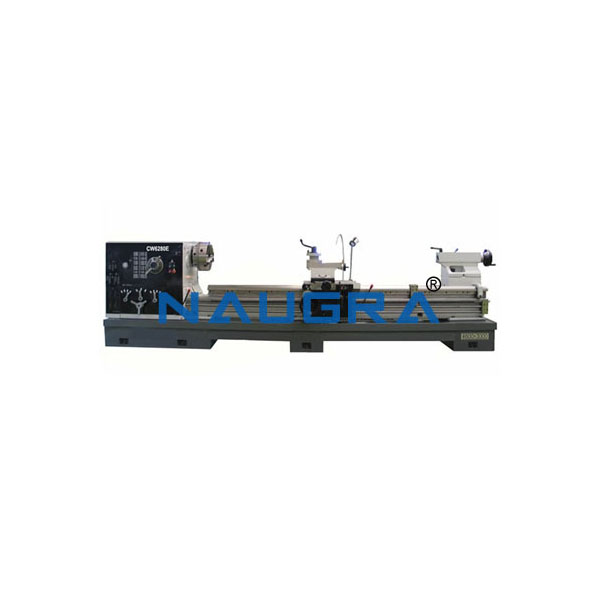

Pedestal Type Bed
| Product code | ALMS0004 |
| Categories | All Lathe Machines Suppliers |
| Standards | Manufactured to IS / BS / EN / ASTM / AASHTO as applicable |
| Supply | India and export — 90+ countries |
- Description
Pedestal Type Bed
Specification
| Max.Swing over Bed | 630mm | 800mm | 1000mm |
| Max.Swing over Cross Slide | 350mm | 520mm | 720mm |
| Max. Swing in Gap | 800mm | 1000mm | 1230mm |
| Width of Gap | 465mm | ||
| Max. Length of Workpiece (ABC) | 1000 / 1500 / 2000 / 3000 / 4000 / 5000mm | ||
| Width of Guideway | 550mm | ||
| Main Spindle Bore | 105/130mm | ||
| Taper of Spindle Bore | 120mm(1:20)/140mm(1:20) | ||
| Spindle Nose | C11 / D11 | ||
| No. / Range of Spindle Speed | 7.5 - 1000rpm | ||
| Max. Travel of Cross Slide | 445mm | 493mm | |
| Max. Travel of Top Slide | 200mm | ||
| Travel of Tailstock Quill | 240mm | ||
| Diameter of Tailstock Quill | 100mm | ||
| Taper bore of Tailstock Quill | No 6 MT | ||
| Main Motor Power | 11kW(15HP) | ||
