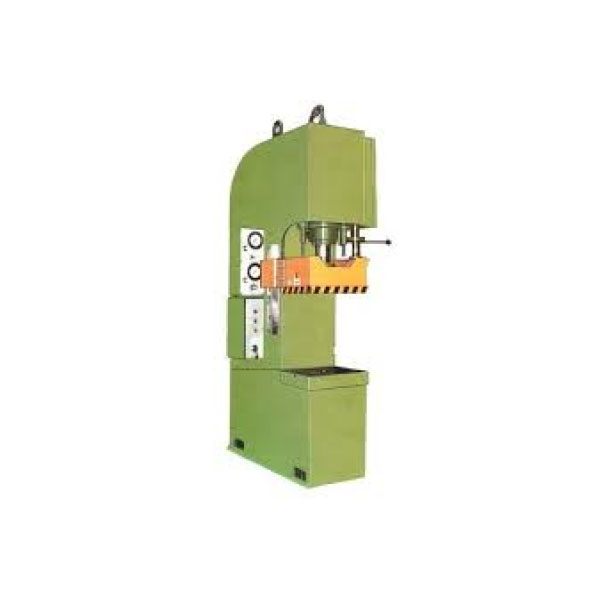

Open Throat & Straightening Hydraulic Press

Open Throat & Straightening Hydraulic Press

Specification

Open Throat & Straightening Hydraulic Press The Construction of both these types of Hydraulic Presses is similar with the addition of long table, floating centres. Rollers and resistance in the case of Straightening Type, Roller brackers are interchangeable with the centre brackets. Rollers and carriage runners are mounted on roller bearings.

The pump unit of these presses housed in the frame, is easily accessible and is coupled by vertical driving shaft to a Flange mounted motor or V Belt. These presses incorporate power return to the ram and ram anti-rotation guides as standard.

Capacity in tons	25
Stroke	180
Ram to Bed	500
Table Height	800
Throat	200
Small (Length)	400
Table (Depth)	400
Long (Length)	1000
Table (Width)	250
Motor HP.	5
T-SLOT IN TABLE	1/2"
