CNC Maintenance Assessment Trainings Systems

Code: CIVIL-MAT-45-0001

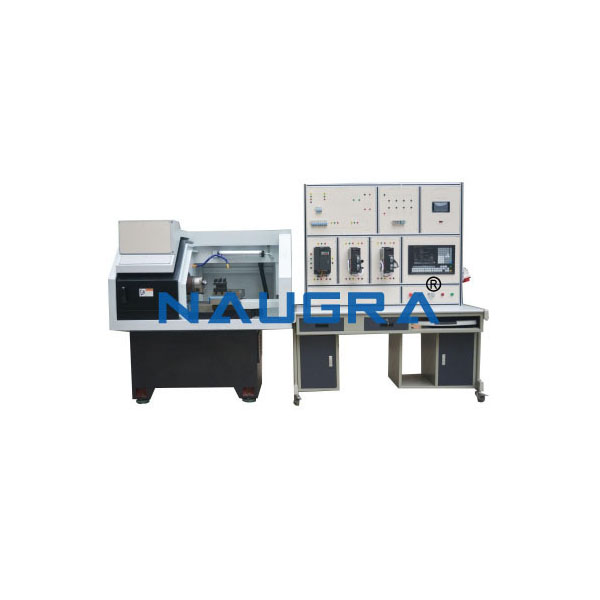

CNC Maintenance Assessment Trainings Systems.

The Siemens CNC maintenance assessment training system can set an electrical fault. The spindle of the CNC milling machine is driven by the AV variable frequency motor and an AC servo motor is used to control three axes linkage. The CNC system is Siemens 802C Series.

This product is suitable for use in the training and assessment of milling machine installation and maintenance electrician in the vocational training schools. Using this CNC maintenance assessment training system can help students master CNC milling system control principle, electrical design methods, component selection, milling machine electrical installation and commissioning, fault diagnosis and maintenance, graphic simulation and processing, and other experimental content, thus achieving the practical effect of training in the industrial production scene.

Technical Features
1. Working power supply: Three-phase five-wire system, AC380V±10%, 50Hz/60Hz
2. Control power supply: DC24V
3. Brake power supply: DC5V
4. Machine capacity: <5.0KVA
5. Safety protection: Leakage protection (Operating current≤30mA), overcurrent protection, overload fuse protection
6. Working environment
Temperature: -10℃~+40℃, relative humidity: <80% at 25℃
