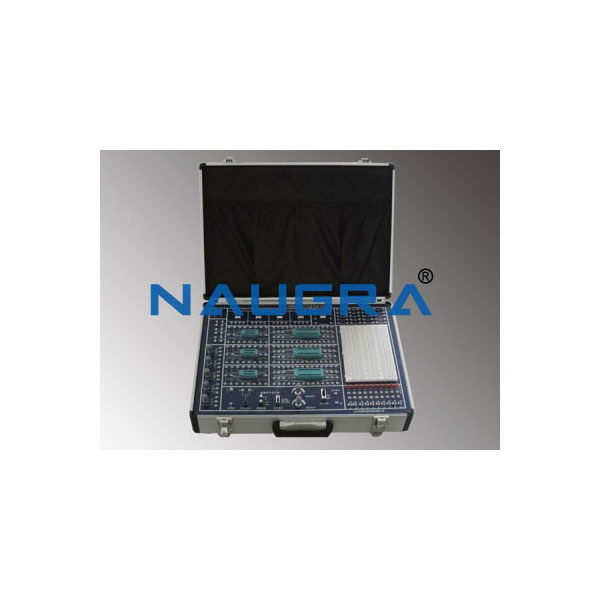

Portable Digital Circuit Trainer
For senior semesters, boards must go beyond gates. This listing from portable digital circuit trainer manufacturers in India gathers system-level trainers, and as suppliers in India we ship them to engineering colleges building digital design and computer organisation labs.
Six products are included: the base Portable Digital Circuit Trainer plus five application units. The Arithmetic Logic Unit Digital Trainer works on 4 bit operations, the Memory and Register Digital Trainer on RAM, ROM and registers, and the Digital to Analogue and Analogue to Digital Trainer on conversion with display.
Two more bring practical skills: a Digital Clock and Timer Trainer, where students build a clock using counters and displays, and a Digital IC Tester Trainer with a breadboard for checking chips and prototyping. They suit project-style teaching after basic gate experiments are complete.
Last updated: November 2026
Portable Digital Circuit Trainer
Arithmetic Logic Unit Digital Trainer is a trainer for 4 bit ALU operations.
Digital Clock and Timer Trainer is a trainer for building a digital clock using counters and displays.
Digital IC Tester Trainer is a trainer that tests common digital ICs and has a breadboard.
Digital to Analogue and Analogue to Digital Trainer is a trainer for DAC and ADC conversion with display.
Memory and Register Digital Trainer is a trainer for RAM, ROM and register circuits.
| Function | Products | What to confirm |
|---|---|---|
| System building blocks | Arithmetic Logic Unit Digital Trainer, Memory and Register Digital Trainer | Data width, control switches, display of results, and memory chip types and sizes. |
| Applications and conversion | Digital Clock and Timer Trainer, Digital to Analogue and Analogue to Digital Trainer | Display type, counter ICs used, converter resolution and reference voltage. |
| Testing and basics | Digital IC Tester Trainer, Portable Digital Circuit Trainer | IC families supported, pin count, breadboard size and built-in clock and indicators. |
The parent page lists the full set, including logic gates, combinational circuits, flip flops, shift registers and seven-segment boards. This one keeps the system-level trainers. If you are equipping a first-year lab, start on the parent range; if gates and counters are already available and you want computer organisation or project work, use the units listed here.
See also: Portable Digital Circuit Trainer
The complete Portable Digital Circuit Trainer range (6 products), in alphabetical order:
Check the logic family (TTL or CMOS), data width of the ALU and register trainers, and whether switches and LEDs allow every bit to be set and observed. Also confirm the clock options and the printed panel diagram, since students rely on these to trace circuits.
Verify which memory chips are provided (RAM, ROM), whether address and data lines are accessible with switches, and how the read and write controls work. Ask for a sample experiment sheet to confirm that the depth fits your university syllabus.
Engineering colleges teaching digital design, computer organisation or embedded systems order these trainers, as do polytechnics and training centres with advanced digital courses. They are added to an existing set of logic gate and counter trainers, plus a CRO and a bench power supply.
Yes, experiment procedures, circuit diagrams and IC pin details can be supplied with each unit, so that lab instructors can run sessions without preparing handouts from scratch.
Yes, we export these trainers to institutes abroad. Packing is done in padded cartons to protect front panel sockets and switches, and the invoice and packing list are prepared for the destination country as required.
Normally a 230 V, 50 Hz single-phase supply, with a regulated 5 V rail generated on board. For export to 110 V countries tell us at the quotation stage.
The Arithmetic Logic Unit Digital Trainer performs 4 bit ALU operations on the board. If you need a particular layout or function selection, mention it in your enquiry and we will confirm.
Yes, we deliver pan-India by road and courier, and for large institutional orders we can support installation, commissioning and a short demonstration for lab staff on request.
