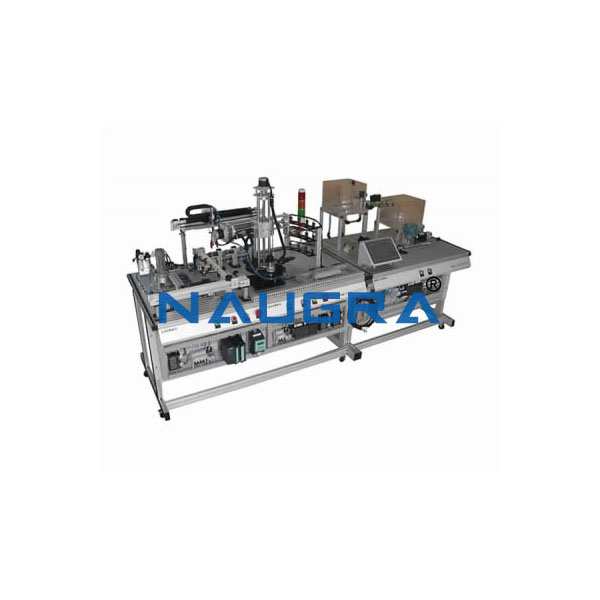

Optical Sensor Mechatronics Training Set
Product code: CIVIL-OSM-136-0001Buy Optical Sensor Mechatronics Training Set from India
Optical Sensor Mechatronics Training Set
Once students know basic photoelectric sensors, they need laser measurement, safety and counting. Optical sensor mechatronics training set manufacturers in India can supply this advanced group, and as suppliers in India we can combine it with the basic sets to give one lab a full sensing syllabus.
The Laser Distance Sensor Training Set uses a laser displacement sensor for contactless measurement and analogue output practice. The Light Curtain Safety Training Set demonstrates how a protective curtain stops a machine, which is central to machine guarding lessons.
The Optical Sensor Alignment and Calibration Training Set teaches setup on a bench, while the Reflective Optical Encoder Training Set and Slot Optical Sensor Counter Training Set deal with speed and position counting. The Optical Sensor Mechatronics Training Set listing is the base device on which these exercises build.
Last updated: November 2026
Optical Sensor Mechatronics Training Set
Laser Distance Sensor Training Set is a trainer using a laser displacement sensor for distance and thickness measurement tasks.
Light Curtain Safety Training Set is a set demonstrating a safety light curtain protecting a machine zone, with muting and reset circuits.
Optical Sensor Alignment and Calibration Training Set is a bench set for alignment, sensitivity and response testing of different optical sensors with a lux meter.
Reflective Optical Encoder Training Set is a trainer for position and speed measurement using reflective optical encoders with a motor drive.
Slot Optical Sensor Counter Training Set is a trainer with slot-type optical interrupters, counter and display for item counting experiments.
| Function | Products | What to confirm |
|---|---|---|
| Measurement | Laser Distance Sensor Training Set, Optical Sensor Alignment and Calibration Training Set | Measuring range, resolution, analogue output, calibration targets |
| Safety | Light Curtain Safety Training Set | Beam count, resolution, protected height, response time, relay outputs |
| Counting and speed | Reflective Optical Encoder Training Set, Slot Optical Sensor Counter Training Set | Encoder slots or lines, counter display, motor speed and supply |
| Base set | Optical Sensor Mechatronics Training Set | Included sensors, mounting frame, supply and indicator panel |
A through-beam set teaches one basic detection mode using an emitter and receiver on adjustable mounts. The sets on this page go beyond basic detection: they cover laser measurement, safety light curtains and encoders. Choose through-beam first to teach sensor principles. Add these sets once students have mastered the fundamentals and are ready for measurement, safety and counting applications.
The complete Optical Sensor Mechatronics Training Set range (6 products), in alphabetical order:
Check protective height, number of beams, resolution (for finger or hand detection), response time, relay output rating and whether a dummy machine or contactor circuit is provided. Confirm 24 V DC supply and the availability of the safety manual. Ask also for the manual and calibration procedure.
They are fitted to a small motor and read by a counter or PLC, so students measure speed and distance. Check pulses per revolution, motor speed range, display type and whether PLC connections are provided. Keep spare sensor mounts and a few connecting leads in stock, since encoder disks and slotted wheels are handled frequently by students in practical sessions.
Mechatronics and instrumentation labs adding advanced sensor topics, machine safety trainers in polytechnics and industrial training academies purchase these sets. They are typically ordered with PLC trainers and conveyors to teach complete measurement and safety circuits. Orders typically cover two to four sets for parallel groups.
Students align emitter and receiver, set sensitivity and verify switching points with a gauge. This builds commissioning skill. Ask for the adjustment range, the alignment tools provided and the type of gauge.
A slotted sensor sees a passing object or disc and a counter displays the pulses. Students count and compare with a manual count. Confirm the slot width, the counter display range and the disc supplied.
It measures position and speed from a coded disc and shows pulses per revolution on a display. Students convert pulses to angle. Ask for the resolution, the output type and the maximum speed.
Analogue or switching outputs connect to a PLC input, so students program limits and alarms. Confirm the output signal type, such as 4 to 20 mA or 0 to 10 V, and the supply.
