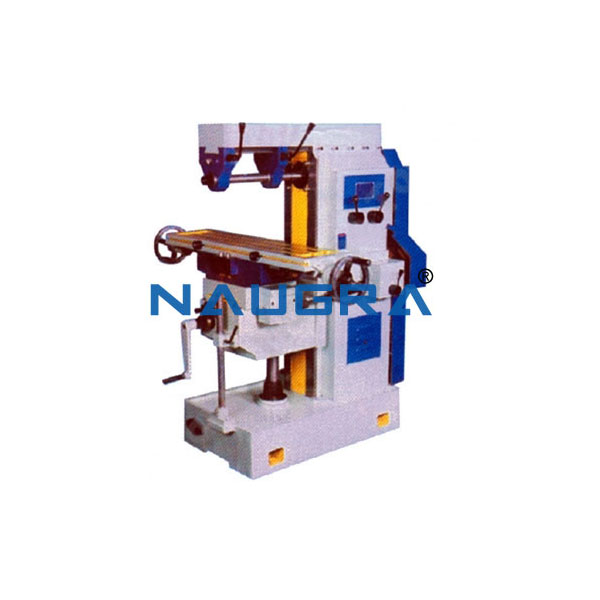

Geared Drive Universal Milling Machine

Product code	Gear Drive0001
Categories	Gear Drive Milling Machines Suppliers
Standards	Manufactured to IS / BS / EN / ASTM / AASHTO as applicable
Supply	India and export — 90+ countries

Specification

Surface of Table	800 x175	900x200	1050 x 250	1200x275	1300x300
No. of T – Slots	3	3	3	3	3
Size of T-Slots	½”	½”	½”	½”	½”
Swivel either Side of Table	45	45	45	45	45
Cross	150	150	175	200	250
Vertical of Traverse	400	400	450	500	625
Longitudinal Traverse	475	475	525	625	675
Standard Arbour	1”	1”	1”	1”	1”
Taper of Spindle	I.S.O. 40	I.S.O. 40	I.S.O. 40	I.S.O. 40	I.S.O. 40
No. of Spindle Speed	6	6	9	9	9
Range of Spindle Speed	40 to 700	40 to 700	40 to 700	40 to 700	40 to 700
Dia. of Spindle In MM	50	70	80	80	90
No. of Longitudinal Feed Table	2	2	2	3	3
H.P.	1	1.5	2	2	2
Coolant Pump Capacity	2 Gallons	2 Gallons	3 Gallons	4 Gallons	4 Gallons
Dimension (L x W x H) in mm	650 x 425 x 1375	725 x 475 x 1500	900 x 575 x 1550	1250 x 650 x 1750	1250 x 650 x 1825
Weight (Kgs.)	450	700	900	1300	1900
