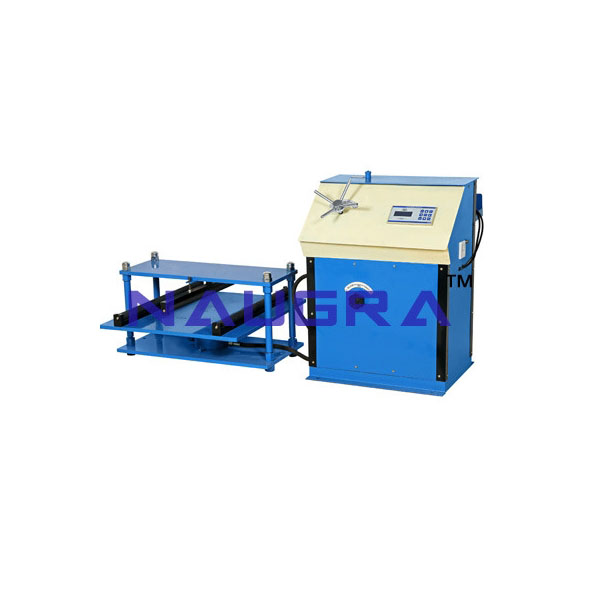

Ductility Testing Machine

Ductility Testing Machine

Code: Bitumen0009

Ductility Testing Machine.
Ductility Testing Machine Ductility Testing Machine

The Machine consists of the following.

  • Stainless steel bath
  • Temperature controller (Thermostatic/Digital)
  • Immersion electric heater
  • Constant speed Pump cum stirrer
  • Carriage holding up to three standard briquette moulds
  • Electric motor with gear mechanism
  • Stainless steel scale and pointer
  • Control Panel

The apparatus consists of water bath with a thermostatic heater and a circulating pump to maintain uniform water temperature. One half of the briquette moulds is fixed in a fixed plate in the water bath, the other half of the briquette mould is fixed to a carrier which slides over a rotating threaded shaft with a clutch. The motor and gears to rotate the shaft are housed in a cabinet fixed above the other end of the both. Ductility Testing Machine for Civil Engineering from Laboratory Equipment Manufacturers India - A pointer fixed to the carrier moves over. a scale graduated from 0-110 cm x 1mm fixed on the bath with “0” (Zero) of the scale towards the fixed plates side. The rotating shaft has 2 speeds of travel for the bracket, 5 cm/min. and 1cm/min. selected by a clutch. Water bath inside is of Stainless steel with insulation and a water drain. A heater with thermostatic control is fitted. inside the water bath. Control switches for motor, stirrer, heater and indicator lamps are fitted to a control panel located at a convenient place on the water bath. Complete with three briquette moulds and one base plate. Working on 230 Volts, single phase, 50 cycles, AC.
