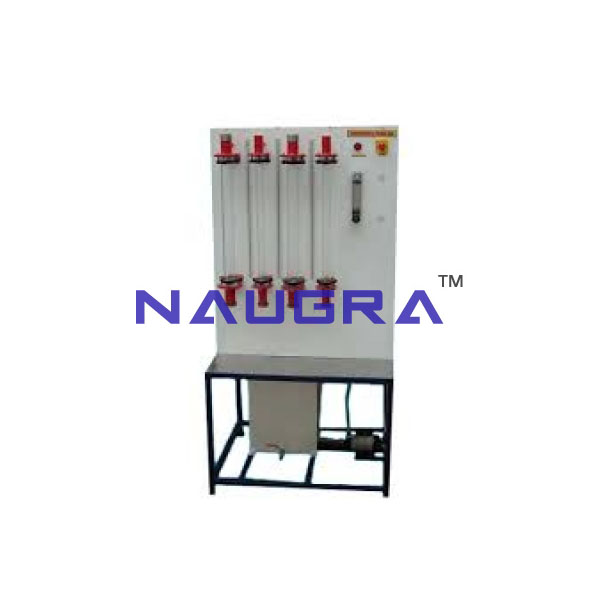

Adsorption in Packed Bed

Adsorption in Packed Bed

Specification

Adsorption in Packed Bed We are offering superior quality Adsorption in Packed Bed to the esteemed customers, as per their specific demands. These are designed under the strict command of our quality analyzers keeping in mind the industry guidelines. We make sure to timely deliver the ordered products at the customers' end, via our wide distribution network.

Utilities Required:
Water Supply & Drain
Electricity Supply: I Phase, 220VAC, 1.5kW
Instruments, Laboratory Glassware and Chemicals required for analysis as per the system adopted

Specifications:

Product
Adsorption Setup
Reactor Column
Material Borosil Glass, different diameter with different height of packing (3 Nos.)
Feed Tank
Material Stainless Steel, Capacity 20 Ltrs., feed lines, drain valve etc. (1Nos.)
Receiving Tank
Material Stainless Steel, Capacity 20 Ltrs (1Nos.)
Feed Circulation
By pump, Magnetic drive made of Polypropylene (1Nos.)
Flow Measurement
Rota-meter 1 Nos. (for feed)
Feed Piping
PVC / SS size
Stop Watch
Electronic
Control Panel
On off switch, Mains Indicator etc.
The setup is painted with good quality paints & mounted on a strong support
