Sieve Plate Distillation Column

Sieve Plate Distillation Column

Specification

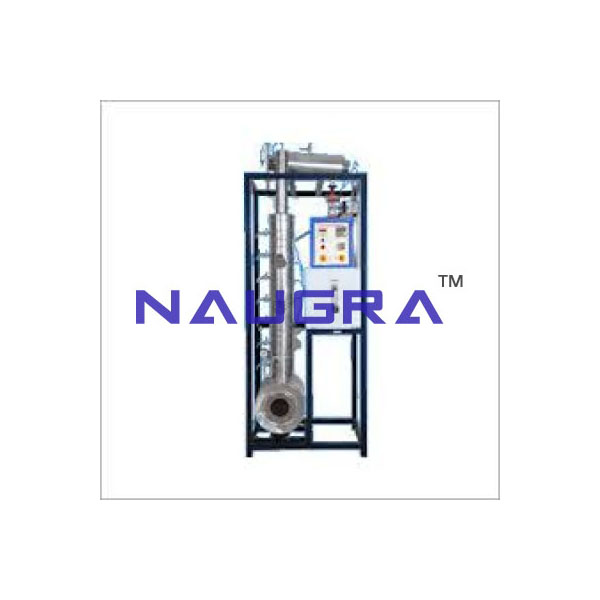

Sieve Plate Distillation ColumnThe setup is designed to demonstrate principles of distillation in a Sieve Plate Column.
The column is made of Stainless Steel material with seven sieve trays. An electrically heated re-boiler is installed at the bottom of the column. The bottom product is collected in the tank. The vapors form the top of column are condensed in the shell and tube type condenser by circulating cooling water supplied by laboratory overhead tank. The condensate is divided into reflux and distillate by automatic reflux divider and R/D Ratio can be varied. Reflux is fed back to the column and distillate is received in a receiving tank. The complete column is insulated for minimizing the heat loss. Instrumentation is done for pressure & temp. Measurement wherever is necessary
Experiments
To study the Sieve Plate Distillation Column
Features
Stainless Steel tanks and wetted parts
Superb Painted structure
Simple to operate & maintain
Compact & stand alone set up
Utilities Required
Water Supply 2 LPM at 5 m head
Drain
Electricity Supply: 1Phase, 220 V AC, 6.5 kW
Required Chemicals
Refractrometer for analysis
