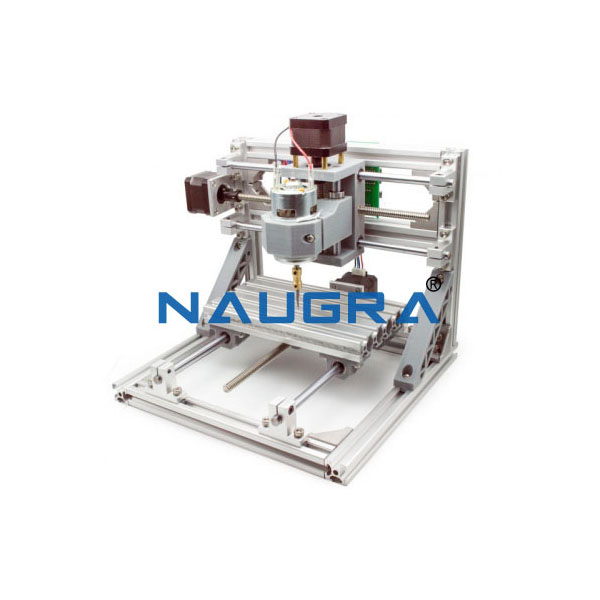

PCB Engraving Machine
Product code: CIVIL-PLC-169-0001Buy PCB Engraving Machine from India
PCB Engraving Machine
This group highlights the convenience features that save time: feeding, inspection and simulation. PCB engraving machine manufacturers in India rarely explain these in detail, so we do so here, and as suppliers in India we can combine a mini machine with an automated one for mixed teaching and production.
The Mini PCB Engraving Machine for Schools gives a compact, low-cost introduction. The PCB Engraving Machine with Software Simulation lets trainees check tool paths on screen before they cut, reducing wasted boards.
The PCB Engraving Machine with Automatic Feeding uses a magazine to load boards without operator intervention, while the PCB Engraving Machine with Microscope Inspection shows track quality on a monitor. The Flatbed PCB Engraving Machine for Flexible Boards holds thin film flat with a vacuum bed. The standard PCB Engraving Machine suits fast production of circuit boards in small batches.
Last updated: November 2026
PCB Engraving Machine
Flatbed PCB Engraving Machine for Flexible Boards is an engraver with a vacuum bed suited to thin and flexible boards.
Mini PCB Engraving Machine for Schools is a compact engraver for school and college electronics labs.
PCB Engraving Machine with Automatic Feeding is a machine with a board feeder magazine for repeated runs.
PCB Engraving Machine with Microscope Inspection is an engraver with a camera and monitor for viewing tracks while engraving.
PCB Engraving Machine with Software Simulation is an engraving machine bundled with software that simulates tool paths before cutting.
| Function | Products | What to confirm |
|---|---|---|
| Education and simulation | Mini PCB Engraving Machine for Schools, PCB Engraving Machine with Software Simulation | Simulation features, PC requirements, working area, tool sizes |
| Automation and inspection | PCB Engraving Machine with Automatic Feeding, PCB Engraving Machine with Microscope Inspection | Magazine capacity, board thickness range, camera resolution, display |
| Flexible boards and standard | Flatbed PCB Engraving Machine for Flexible Boards, PCB Engraving Machine | Vacuum bed area and pump, material thickness, spindle speed |
A four-axis machine adds a rotary axis for curved surfaces, which is useful for specialised parts but not needed for ordinary flat PCBs. The machines on this page concentrate on flat boards and focus on convenience: automatic feeding, inspection and simulation. Choose the four-axis model only when curved or cylindrical engraving is a requirement; otherwise these models are simpler and more economical.
See also: PCB Engraving Machine
The complete PCB Engraving Machine range (6 products), in alphabetical order:
Confirm magazine capacity, board size and thickness range, loading accuracy, cycle time and how jams are handled. Check the supply, the controlling software and whether the feeder works with the same fixtures used for manual loading. Ask for a short demonstration cycle on your own board size so you can verify loading and cutting quality before dispatch.
Yes, thin film curls and moves without hold-down. A vacuum bed with a suitable pump keeps the material flat. Confirm bed size, pump capacity and the minimum thickness the machine can hold. Also confirm the vacuum pump is included in the price, along with a spare set of gaskets and the manual for setting up the bed.
Colleges with embedded system courses, small electronics factories, product developers and training providers choose these machines. They generally add cleaning, drilling and testing instruments to complete the board production flow. A school lab may buy several mini units, while a factory typically buys one automatic machine.
The PCB Engraving Machine with Software Simulation shows the tool path on screen before cutting, so students catch errors without wasting boards. Ask which CAM input formats, such as Gerber, are accepted.
PCB Engraving Machine with Microscope Inspection lets a student view the cut tracks on screen and check track width and gaps before etching or drilling. Confirm the magnification and camera resolution.
PCB Engraving Machine with Automatic Feeding loads blank boards from a stack, which suits repeat batches in a project lab. Check the stack capacity, the board sizes supported and how jams are cleared.
It is compact, with an enclosure or guard near the cutter, and low spindle power. Confirm the guard design, the noise level and the emergency stop before approving it for a school setting.
Export orders include packing and basic operating notes, and the machine voltage can be set for the destination. Mention the country and plug type when asking for an offer.
